Installation Procedure

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

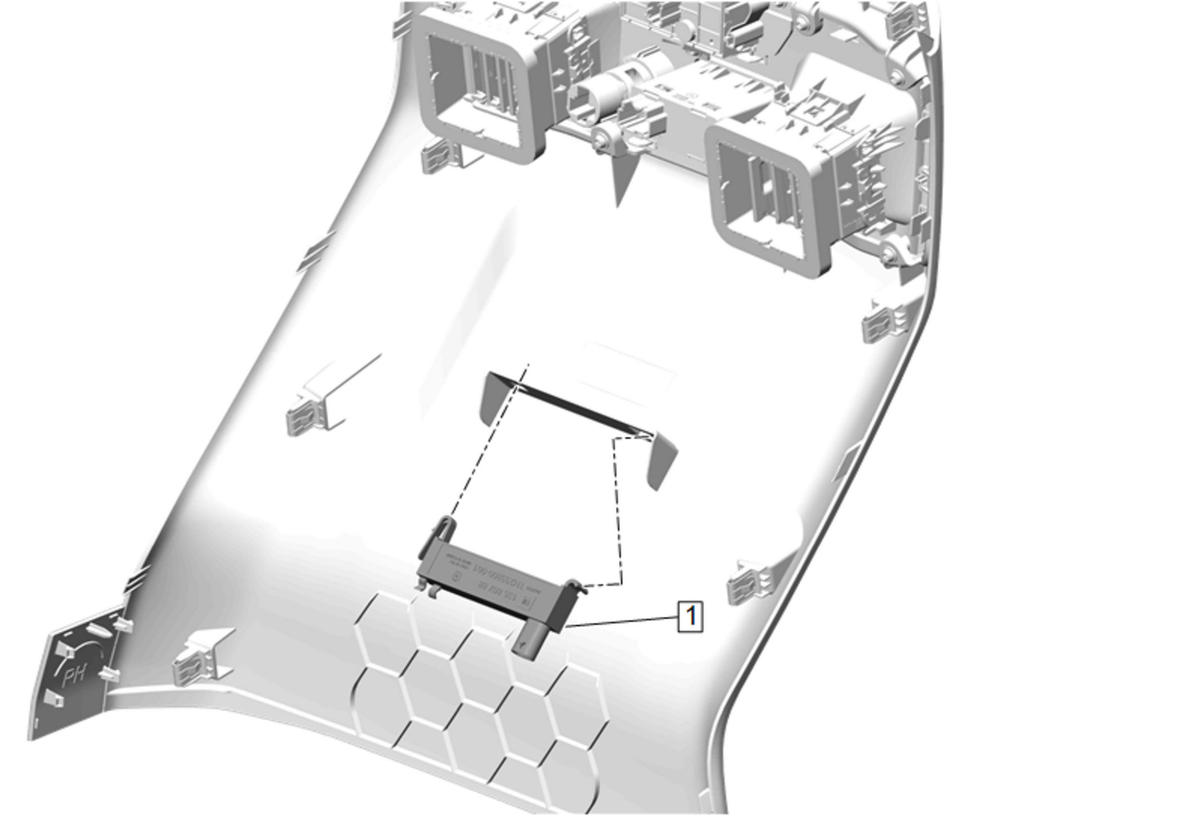

Low Frequency Console Antenna (1) - Install
Secure the retaining tab.
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.

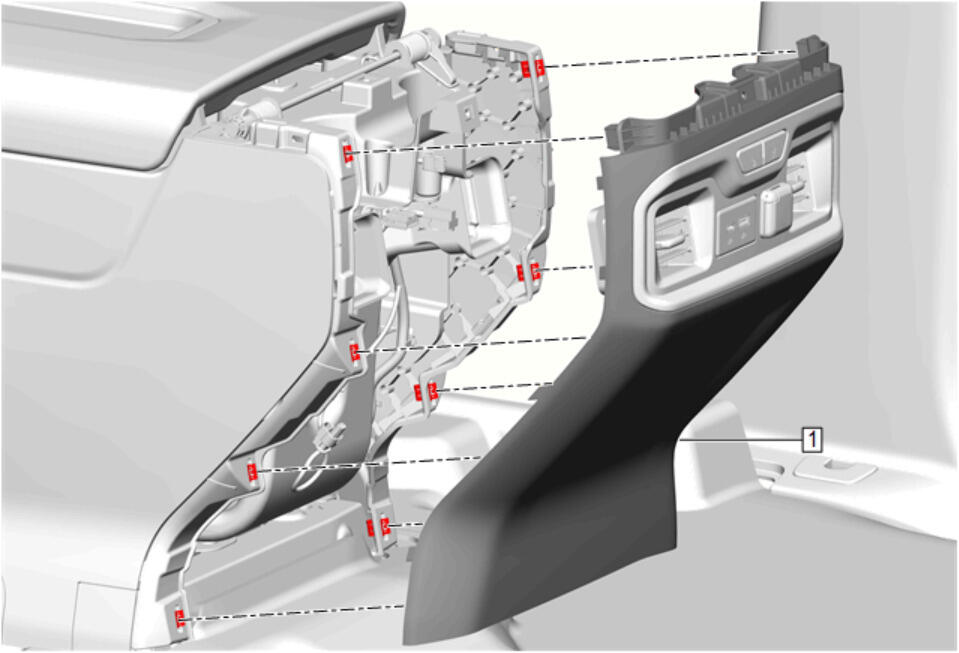

Front Floor Console Rear Trim Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

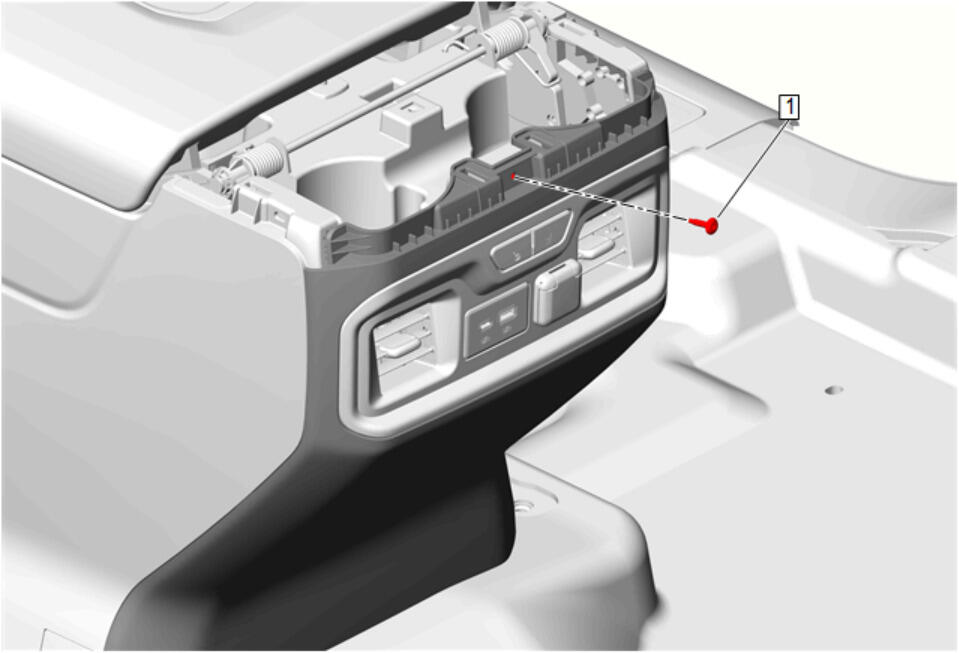

Front Floor Console Rear Cover Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

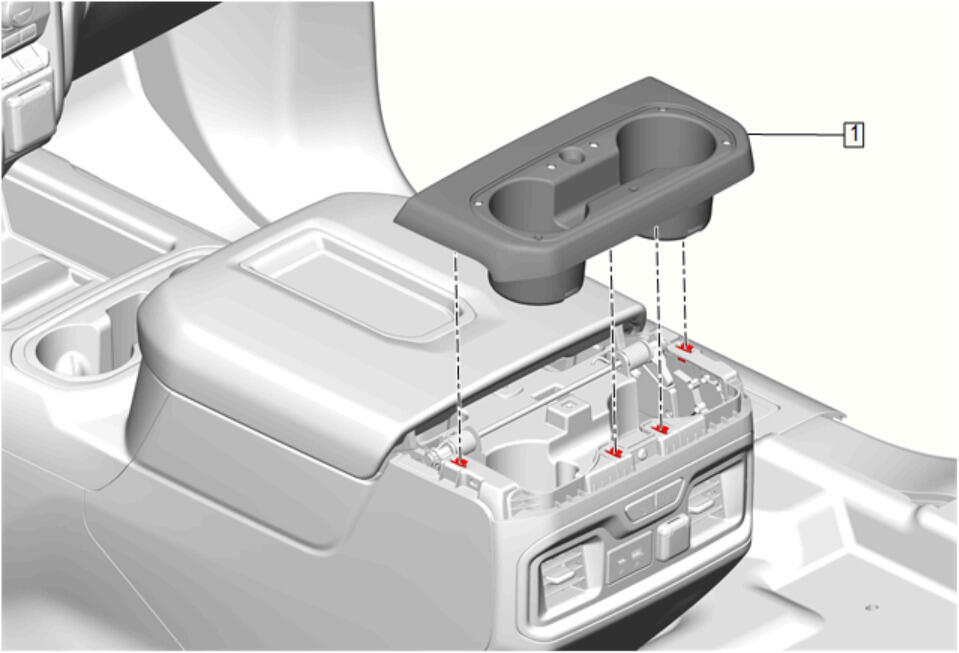

Front Floor Console Rear Cup Holder (1) - Install
Courtesy of GENERAL MOTORS COMPANY

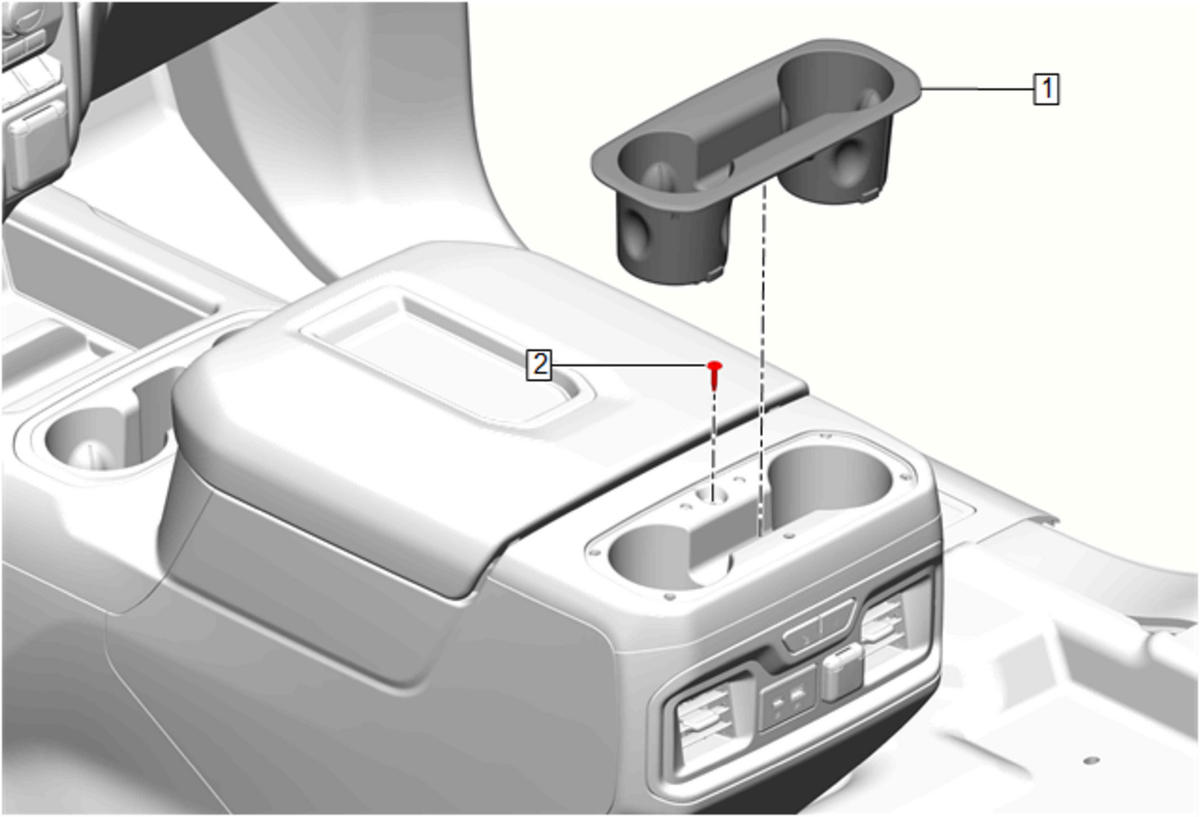

Front Floor Console Cup Holder Bolt (2) - Install and tighten - Fastener Specifications
Front Floor Console Rear Cup Holder Liner (1) - Install
