Removal Procedure

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. SIR Disabling and Enabling
  2. GM4994464Courtesy of GENERAL MOTORS COMPANY

    Use a flat bladed plastic trim tool to depress the steering wheel airbag access hole cover detents to remove the 2 steering wheel airbag access hole covers (1).

  3. GM5042983Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Airbag Bolt (1) - Remove [2x]

  4. Release the connector position assurance (CPA) retainer.
  5. Disconnect the electrical connectors.
  6. Steering Wheel Airbag (2) - Remove

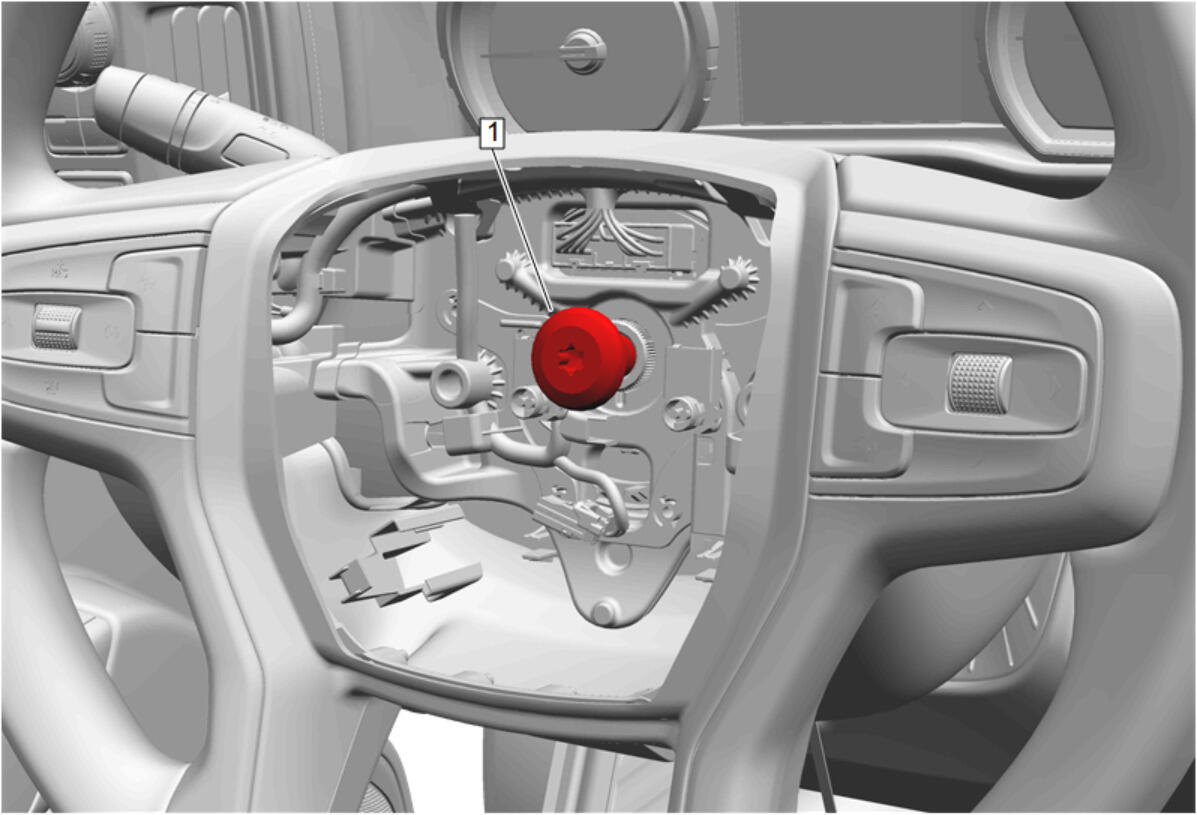

  7. GM4993810Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    During steering wheel bolt removal, observe the following precautions:

    • Do NOT use heat on the steering wheel bolt, steering wheel, or steering column. Using heat could cause damage to the steering related components.
    • Do NOT hammer or apply excessive downward force on the steering wheel bolt, steering wheel, or steering column. Hammering or applying excessive downward force could cause damage to the steering related components.
    NOTE:
    • Steering wheel bolts installed during manufacturing require high torque efforts to remove.
    • The ONLY acceptable bit for removing and installing the steering wheel bolt is a T50 Torx bit. Do NOT use any other size bit or a worn bit.
    • If a power tool is used to remove the steering wheel bolt, the tool must have a minimum torque rating greater than 75 N.m (55 lb ft) and both the power tool and the T50 Torx bit MUST be positioned perpendicular to the bolt recess.
    • Apply appropriate downward force to maintain engagement of bit to bolt recess during bolt removal.

    Loosen the steering wheel bolt (1) until 2 to 3 threads are still engaged.

  8. Wiggle the steering wheel until the wheel disengages completely.
  9. GM4994048Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Bolt (1) - Remove

  10. Disconnect the electrical connectors.
  11. GM4994064Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel (1) - Remove

  12. GM4994120Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Spoke Cover Bolt (1) - Remove [4x]

  13. Steering Wheel Bolt (2) - Remove [4x]
  14. GM4994172Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Shroud (1) - Remove

  15. Disconnect the heated steering wheel module electrical connectors, if equipped.
  16. GM4996975Courtesy of GENERAL MOTORS COMPANY

    Radio Favorites Switch (1) - Remove

  17. Disconnect the electrical connector.
  18. GM4994714Courtesy of GENERAL MOTORS COMPANY

    Radio Volume Switch (1) - Remove

  19. Disconnect the electrical connector.
  20. GM4998402Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Spoke Cover Bolt (1) - Remove [2x]

  21. GM4998403Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Spoke Cover (1) - Remove

  22. Disconnect the electrical connectors.
  23. GM5539730Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Bolt (1) @Cruise Control Switch - Remove [3x]

  24. GM5539731Courtesy of GENERAL MOTORS COMPANY

    Cruise Control Release Switch Bracket (1) - Remove

  25. GM5539732Courtesy of GENERAL MOTORS COMPANY

    Cruise Control Switch (1) - Remove
