Forward Range Radar Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

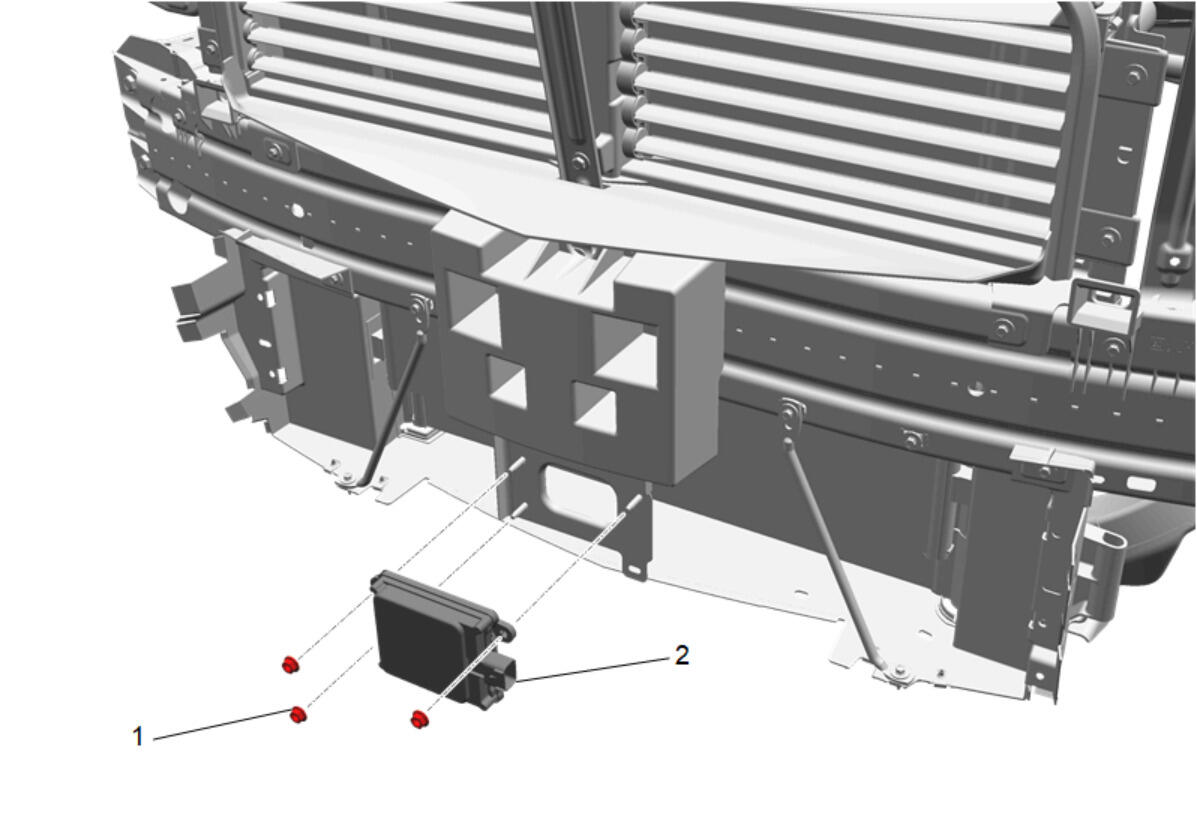

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Removal and Installation
1	Forward Range Radar Sensor Nut [ 3x ] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Forward Range Radar Sensor Procedure Disconnect the electrical connector. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Forward Range Radar Sensor Nut [ 3x ]

CAUTION:

Tighten
9 N.m (80 lb in)

Forward Range Radar Sensor

Procedure
