Home › Cadillac › 2021 › XT6 Sport › Repair and Diagnosis › Body & Frame › Door Locks › Remote Functions › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry - Passive and Keyless Start

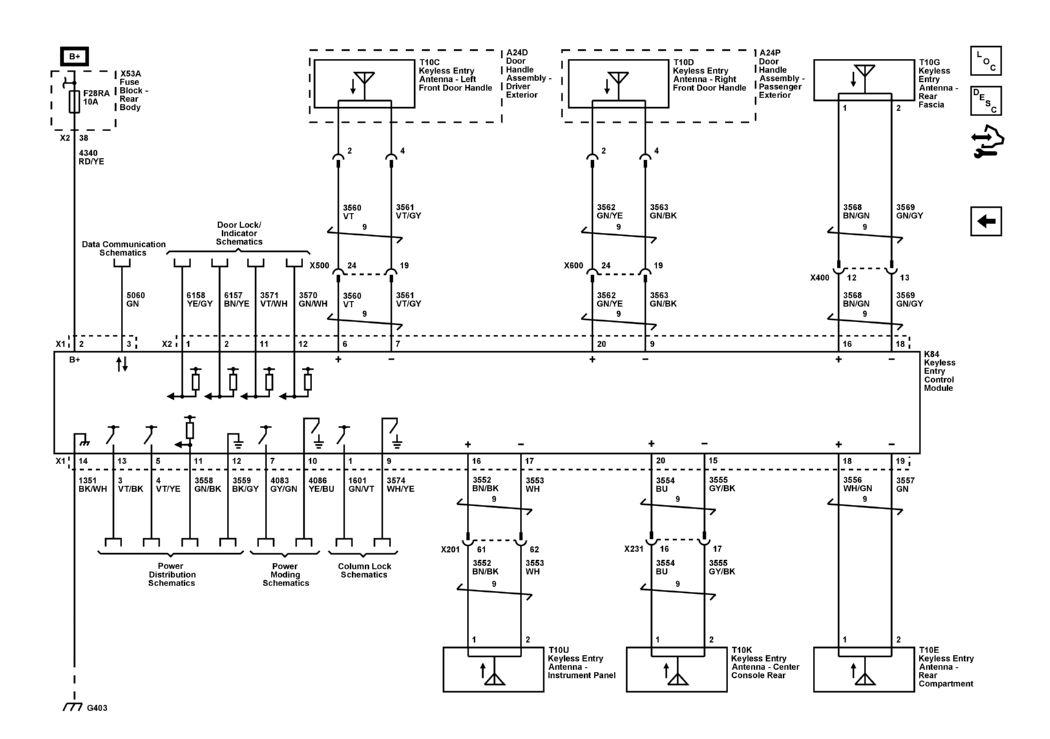

Keyless Entry - Passive and Keyless Start

GM5494447Courtesy of GENERAL MOTORS COMPANY
