Installation Procedure

Windshield - Install - Adhesive Installation of Windshields
Courtesy of GENERAL MOTORS COMPANY

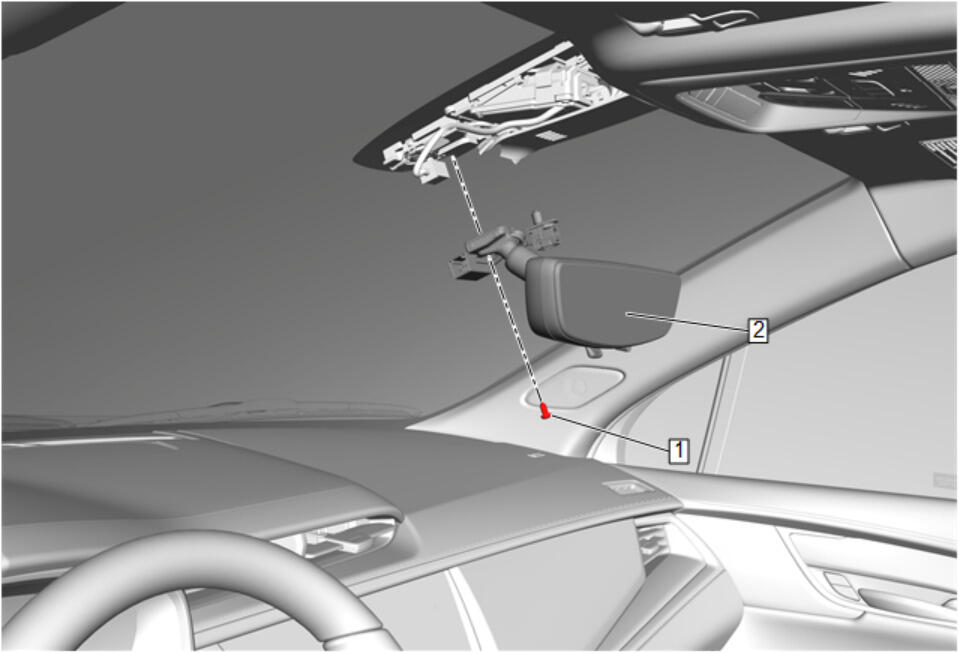

Inside Rearview Mirror (2) - Install - Inside Rearview Mirror Replacement
Courtesy of GENERAL MOTORS COMPANY

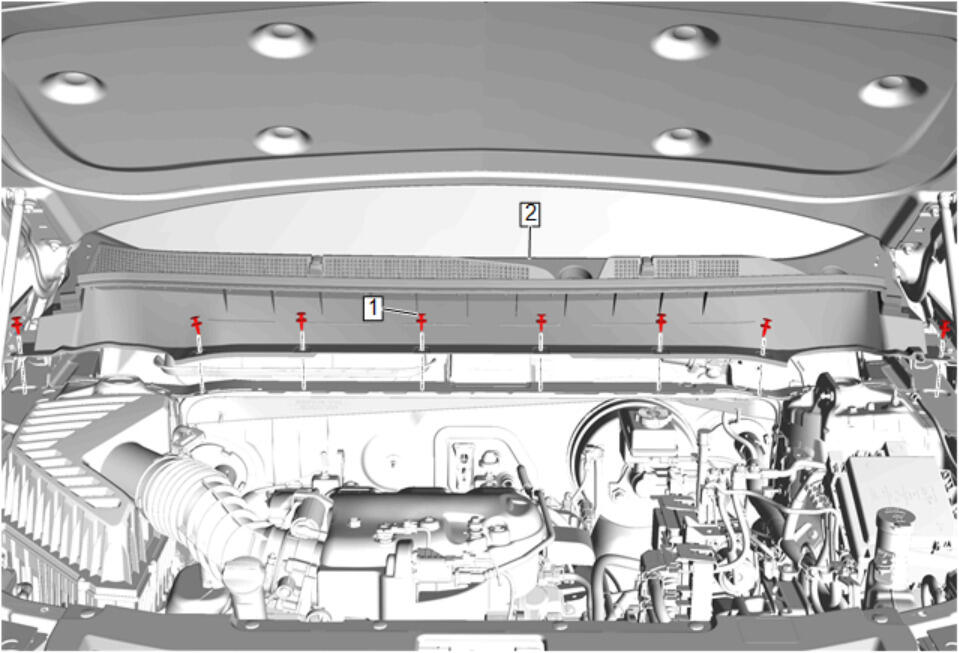

Air Inlet Grille Panel (2) - Install - Air Inlet Grille Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

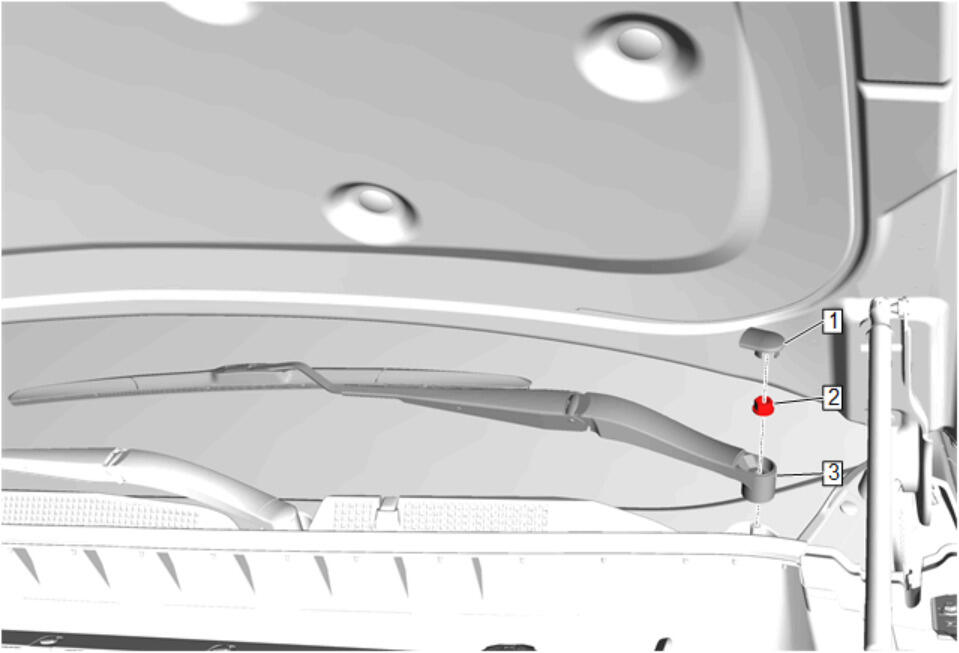

Windshield Wiper Arm (3) - Install - Windshield Wiper Arm Replacement
Remove the double layer of masking tape around the perimeter of the painted surfaces.
