Front Seat Adjuster Memory Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

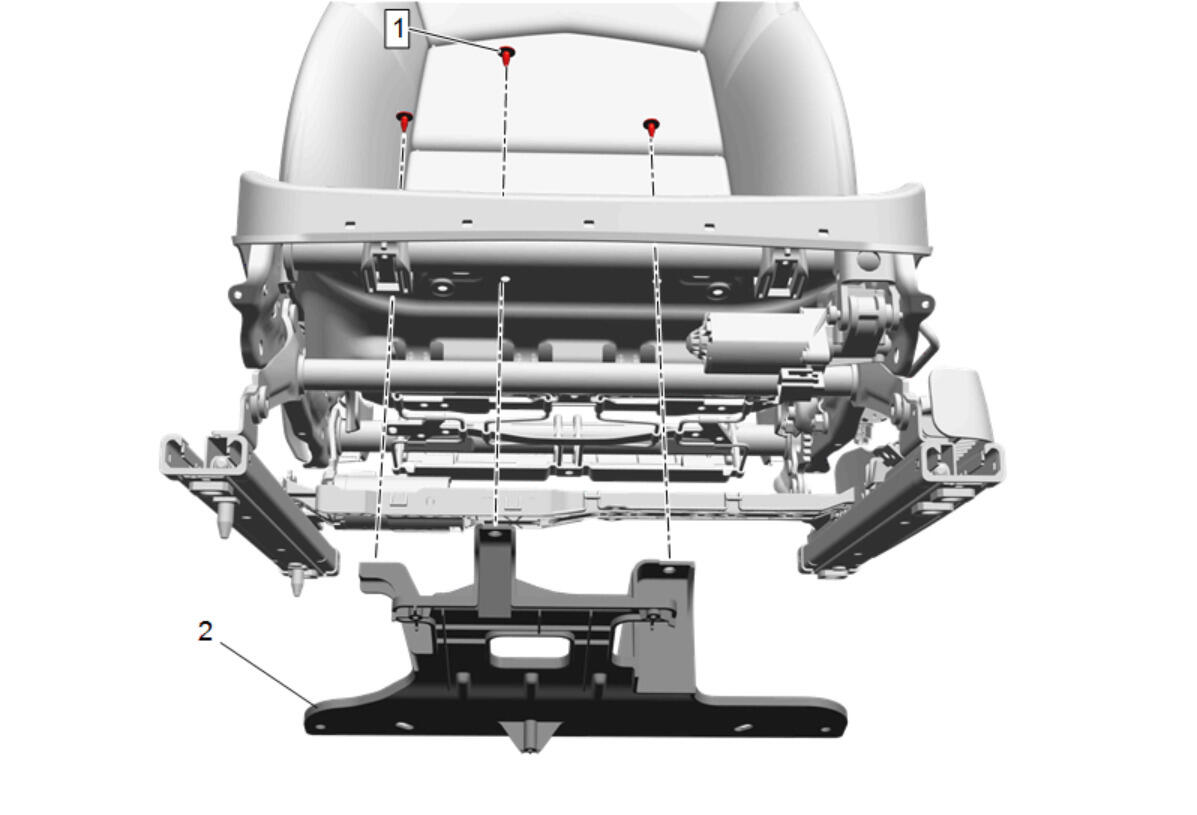

Callout	Component Name
Preliminary Procedure Front Seat Cushion Cover and Pad Replacement
1	Front Seat Adjuster Memory Module Bracket Fastener [ 3x ] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Seat Adjuster Memory Module Bracket Procedure Disconnect and reposition harness as necessary. Transfer components as necessary.

Callout

Component Name

Front Seat Adjuster Memory Module Bracket Fastener [ 3x ]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Seat Adjuster Memory Module Bracket

Procedure
