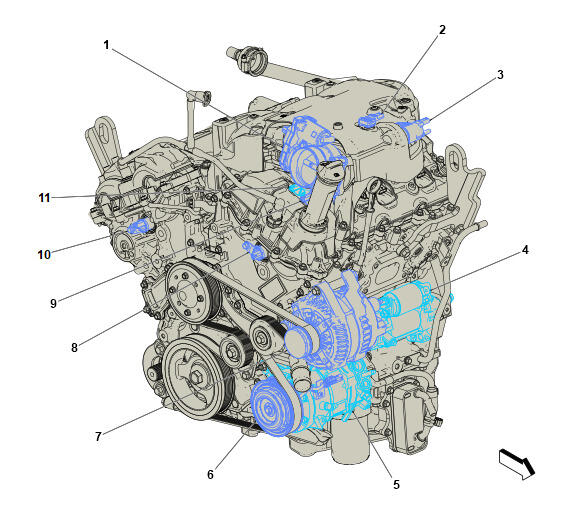

Left Front of Engine Components (LGX)

Courtesy of GENERAL MOTORS COMPANY

Items
1. Q38 Throttle Body Q38 Throttle Body
2. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LGX)
3. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LGX) , or Q12 Evaporative Emission Purge Solenoid Valve (LSY)
4. M64 Starter Motor M64 Starter Motor X1 (LGX) , or M64 Starter Motor X1 (LSY) , or M64 Starter Motor X2
5. Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve (LGX) , or Q46 A/C Compressor Solenoid Valve (LSY)
6. Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch (LGX) , or Q2 A/C Compressor Clutch (LSY)
7. G13 Generator G13 Generator X1 , or G13 Generator X2
8. Q83A Valve Lifter Oil Solenoid Valve - Bank 1 (LGX) Q83A Valve Lifter Oil Solenoid Valve - Bank 1 (LGX)
9. Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LGX) Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LGX)
10. Q84A Camshaft Position Actuator Park Lock Solenoid Valve - Bank 1 Intake (LGX) Q84A Camshaft Position Actuator Park Lock Solenoid Valve - Bank 1 Intake (LGX)
11. Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (LGX) Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (LGX)
