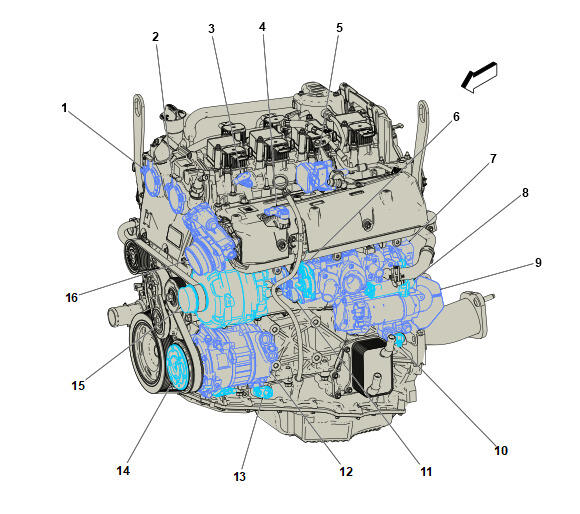

Left Front of Engine Components (L3B)

Courtesy of GENERAL MOTORS COMPANY

Left Front of Engine Components (L3B)

Component Name	Callout
Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LSY/L3B) Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (L3B)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LSY)	1
Q6F Camshaft Position Actuator Solenoid Valve - Intake (LSY/L3B) Q6F Camshaft Position Actuator Solenoid Valve - Intake (L3B)Q6F Camshaft Position Actuator Solenoid Valve - Intake (LSY)	2
B338A Intake Camshaft Profile Sleeve Position Sensor 1 B338A Intake Camshaft Profile Sleeve Position Sensor 1	3
B65 Manifold Absolute Pressure and Intake Air Temperature Sensor (LSY/L3B) B65 Manifold Absolute Pressure and Intake Air Temperature Sensor	4
G58 Evaporative Emission Canister Purge Pump G58 Evaporative Emission Canister Purge Pump	5
B34A Engine Coolant Temperature Sensor 1 (LSY/L3B) B34A Engine Coolant Temperature Sensor 1	6
Q97 Engine Coolant Flow Control Valve	7
Q74 Engine Coolant Bypass Valve Q74 Engine Coolant Bypass Valve	8
M64 Starter M64 Starter X1 (L3B/LSY)M64 Starter X1 (LF4)M64 Starter X2 (L3B)M64 Starter X2 (LF4)M64 Starter X2 (LSY)	9
B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (L3B/LSY)B26 Crankshaft Position Sensor (LF4)	10
Q97B Engine Coolant Flow Control Valve - Block Q97B Engine Coolant Flow Control Valve - Block	11
G1 Air Conditioning Compressor	12
Q80L Engine Mount Actuator - Left Q80L Engine Mount Actuator - Left	13
Q2 Air Conditioning Clutch Q2 Air Conditioning Clutch	14
G13 Generator G13 Generator X1 (L3B/LSY)G13 Generator X1 (LF4)G13 Generator X2 (L3B/LSY)G13 Generator X2 (LF4)	15
Q38 Throttle Body Q38 Throttle Body	16
