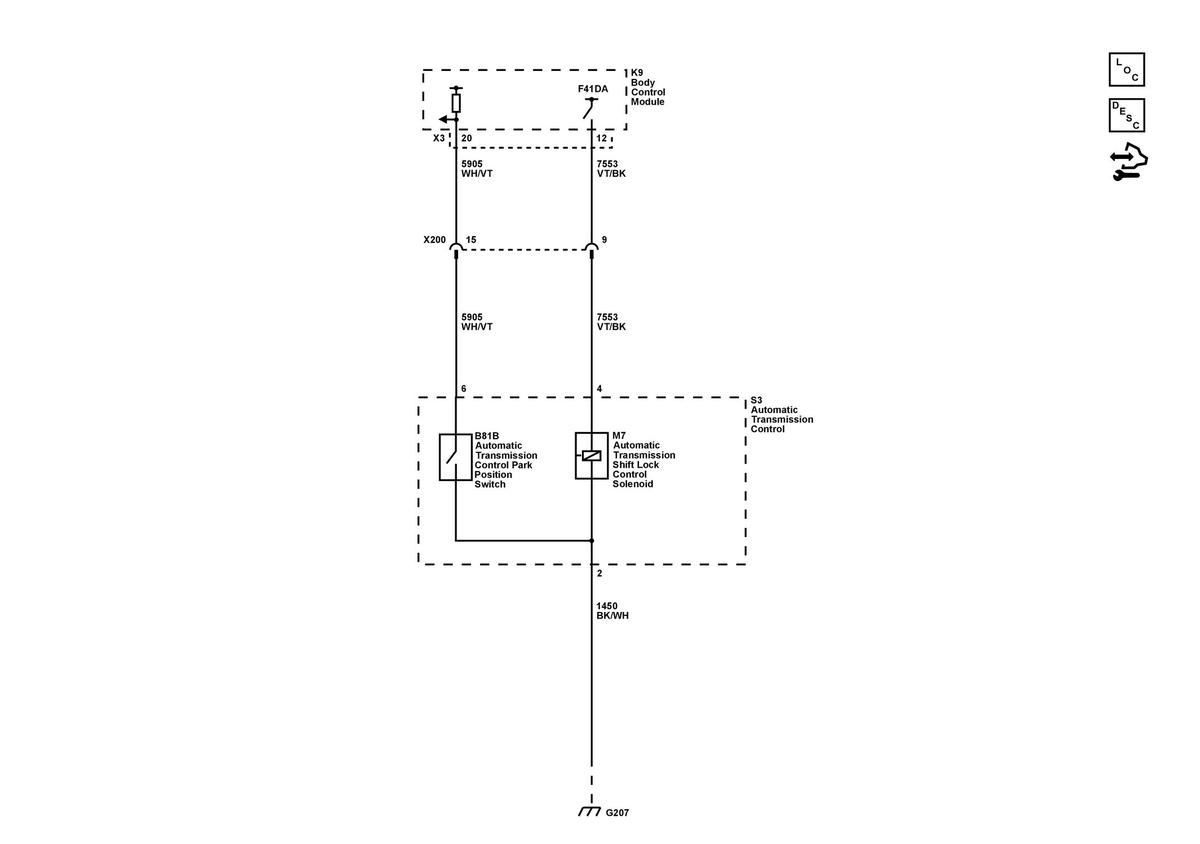

Home › Cadillac › 2022 › CT4 V, RWD › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control System › Schematic and Routing Diagrams › Shift Lock Control Schematics › Shift Lock Control
