Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

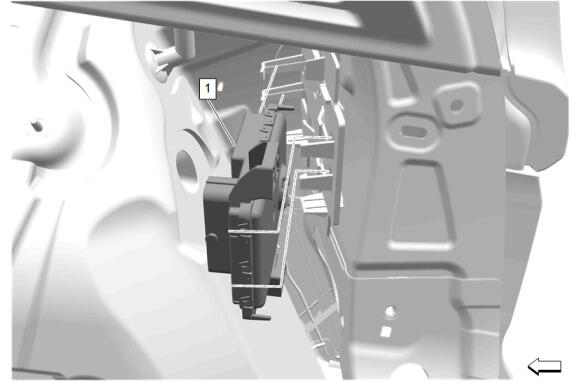

Install the trailer lamp control module (1) into the vehicle and ensure it is properly seated in the trailer lamp control module bracket.
Connect the trailer lamp control module electrical connector.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Connect all electrical connectors.

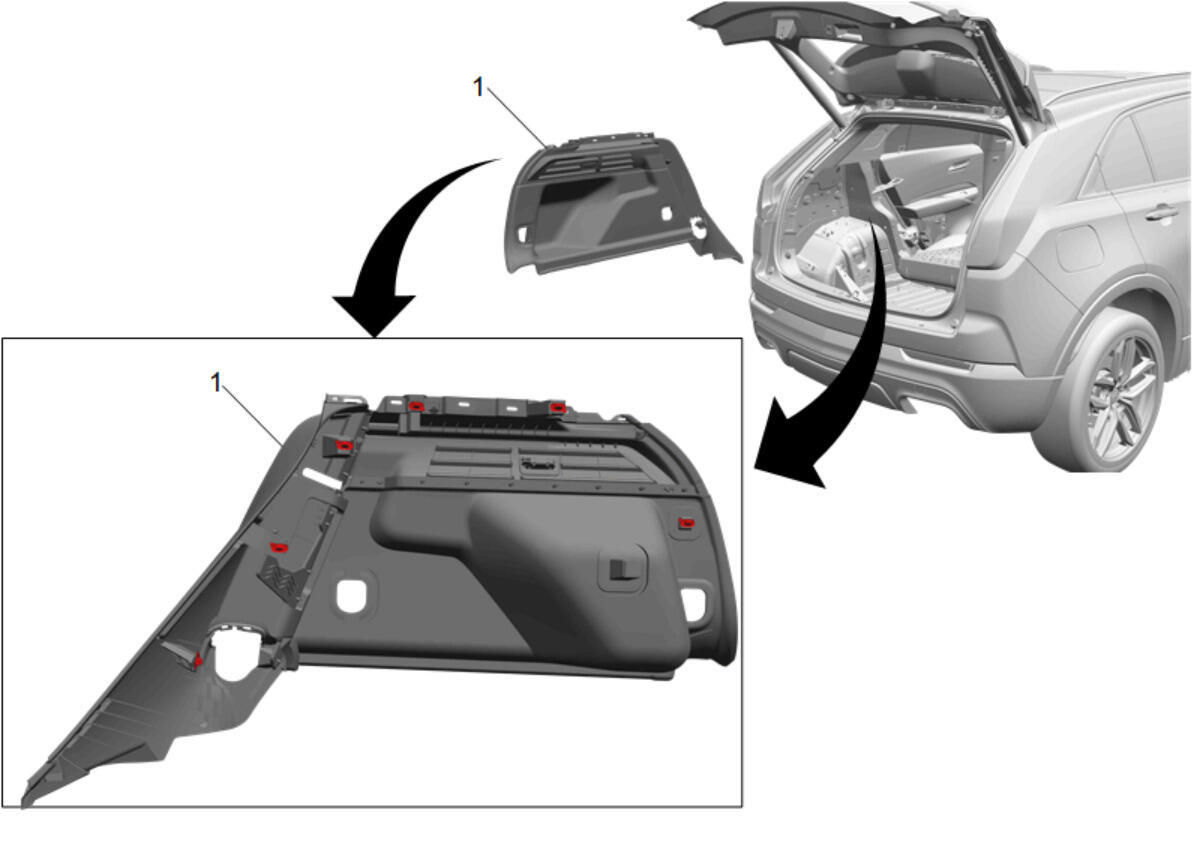

Quarter Lower Rear Trim Panel- Right Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

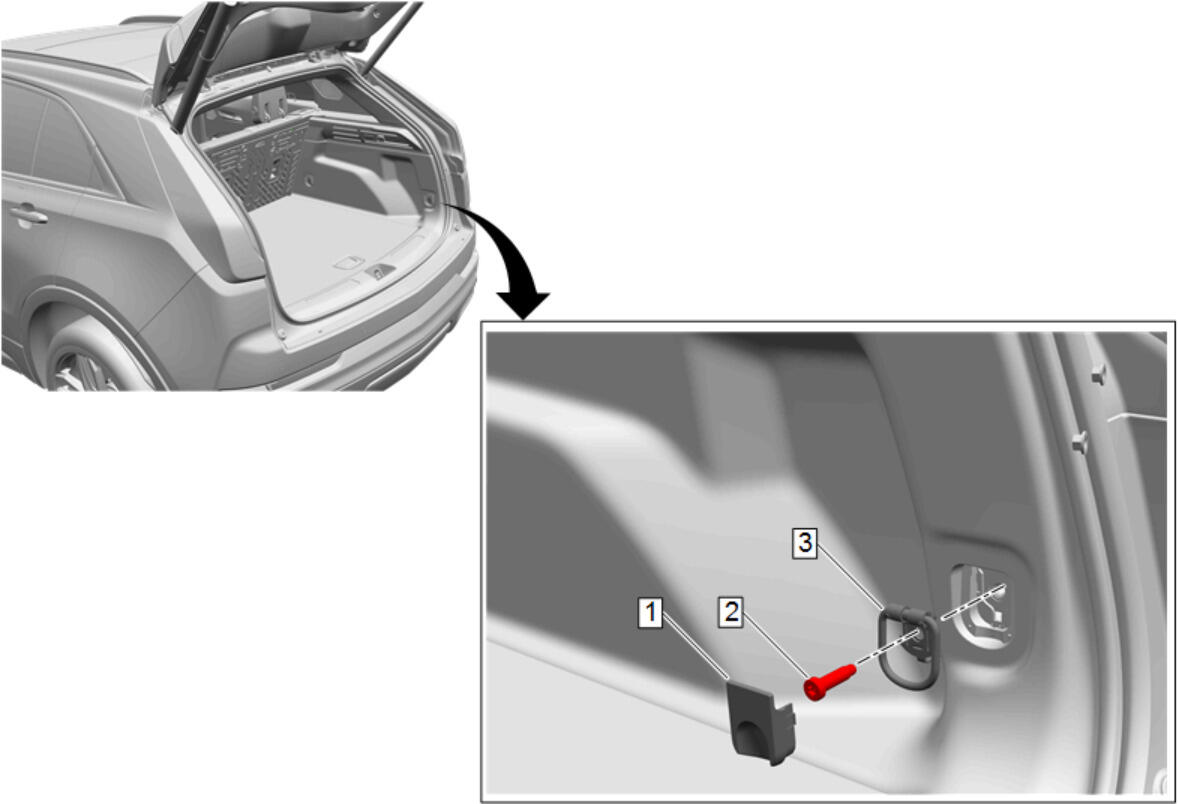

Cargo Tie Down Loop- Right Side (3) - Install - Cargo Tie Down Loop Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

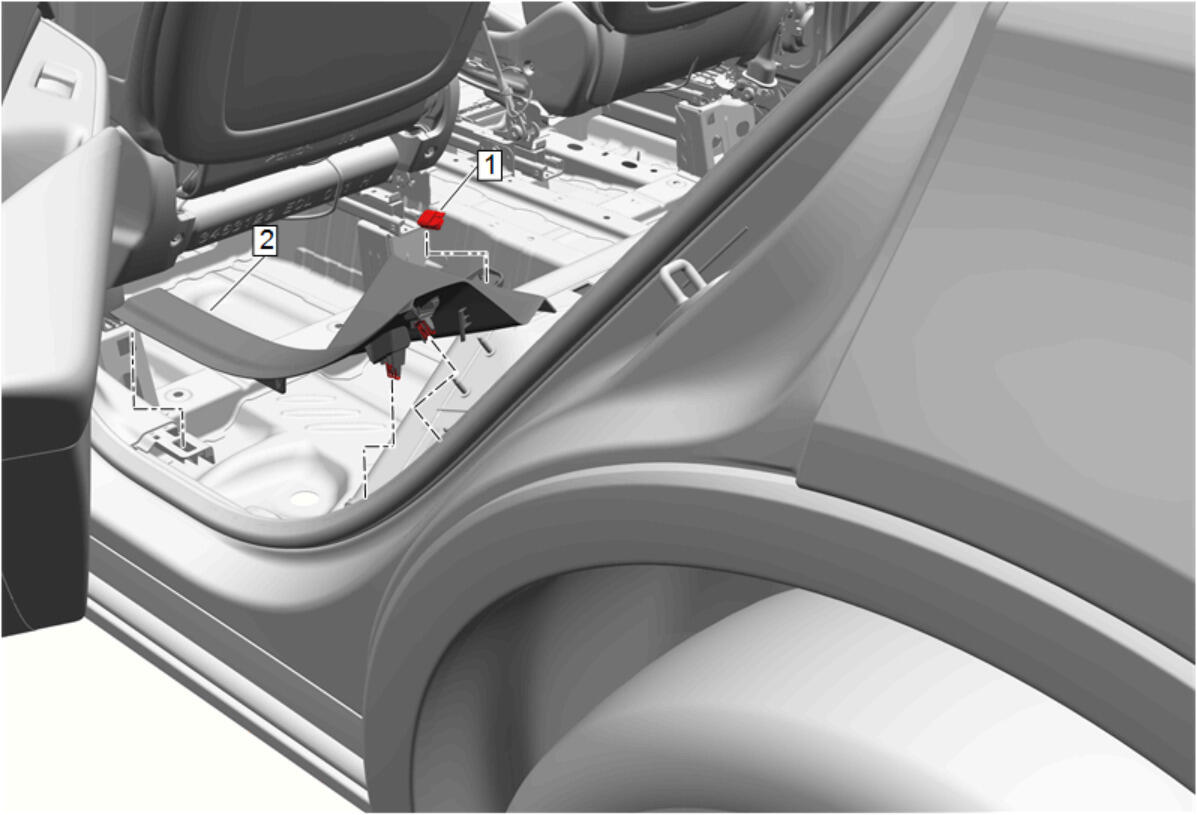

Rear Side Door Sill Garnish Molding- Right Side (2) - Install - Rear Side Door Sill Garnish Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

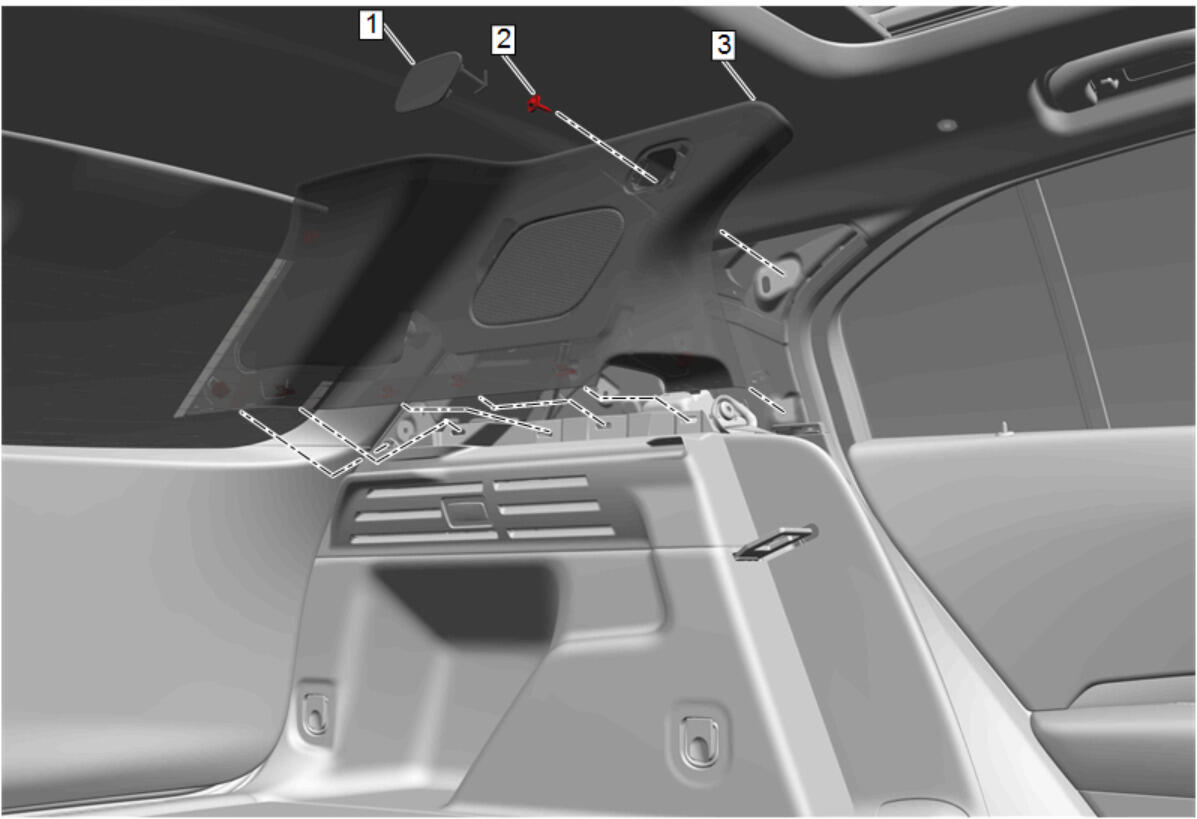

Quarter Upper Trim Panel- Right Side (3) - Install - Quarter Upper Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

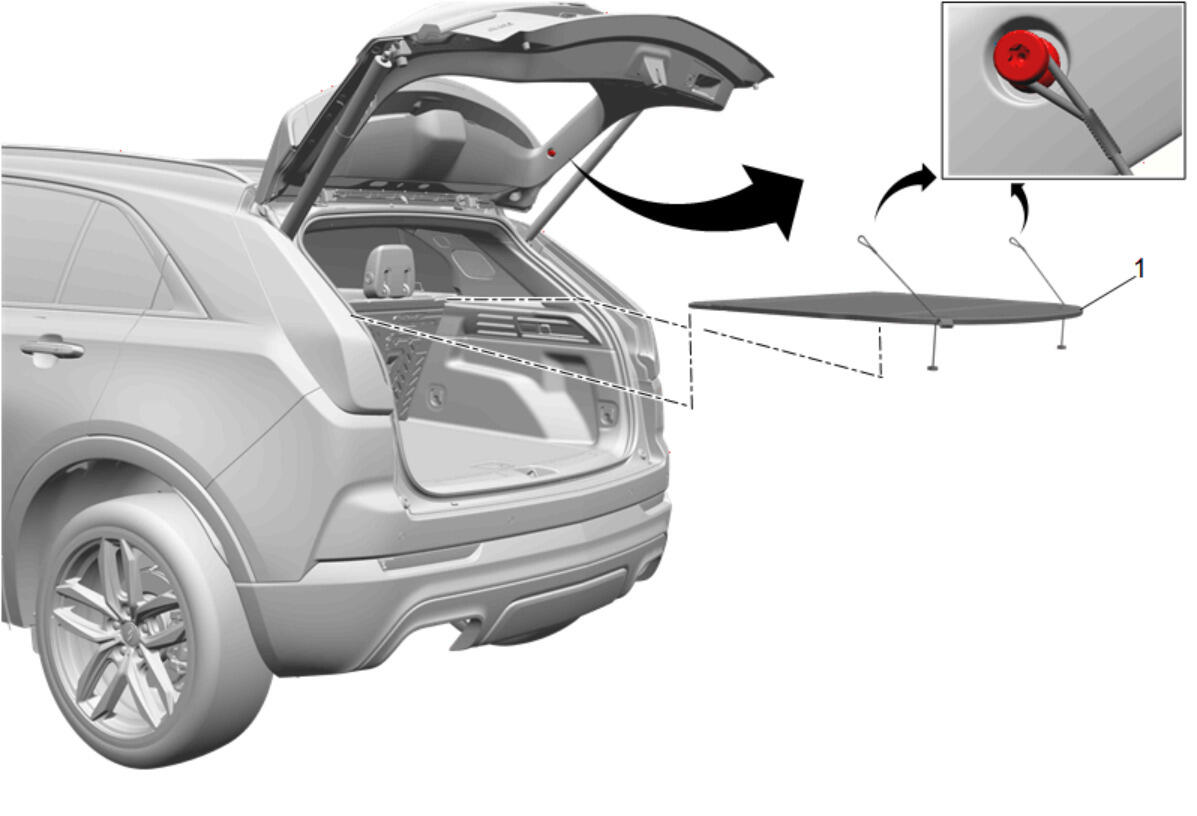

Luggage Shade (1) - Install - Luggage Shade Replacement
Courtesy of GENERAL MOTORS COMPANY

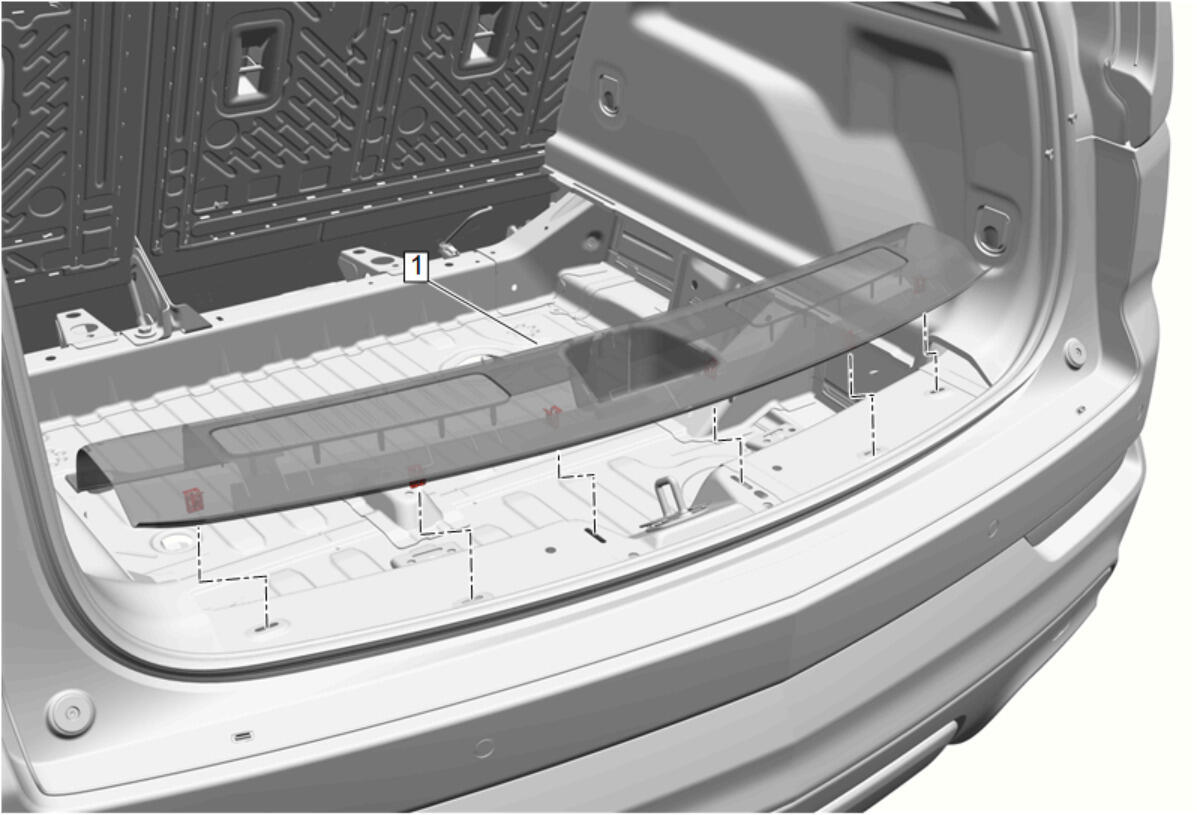

Liftgate Sill Garnish Molding (1) - Install - Liftgate Sill Garnish Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Floor Stowage Trim Compartment (2) - Install - Rear Compartment Floor Stowage Trim Compartment Replacement
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
Program the trailer lamp control module. Control Module References
