Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Component Fastener Tightening Caution .

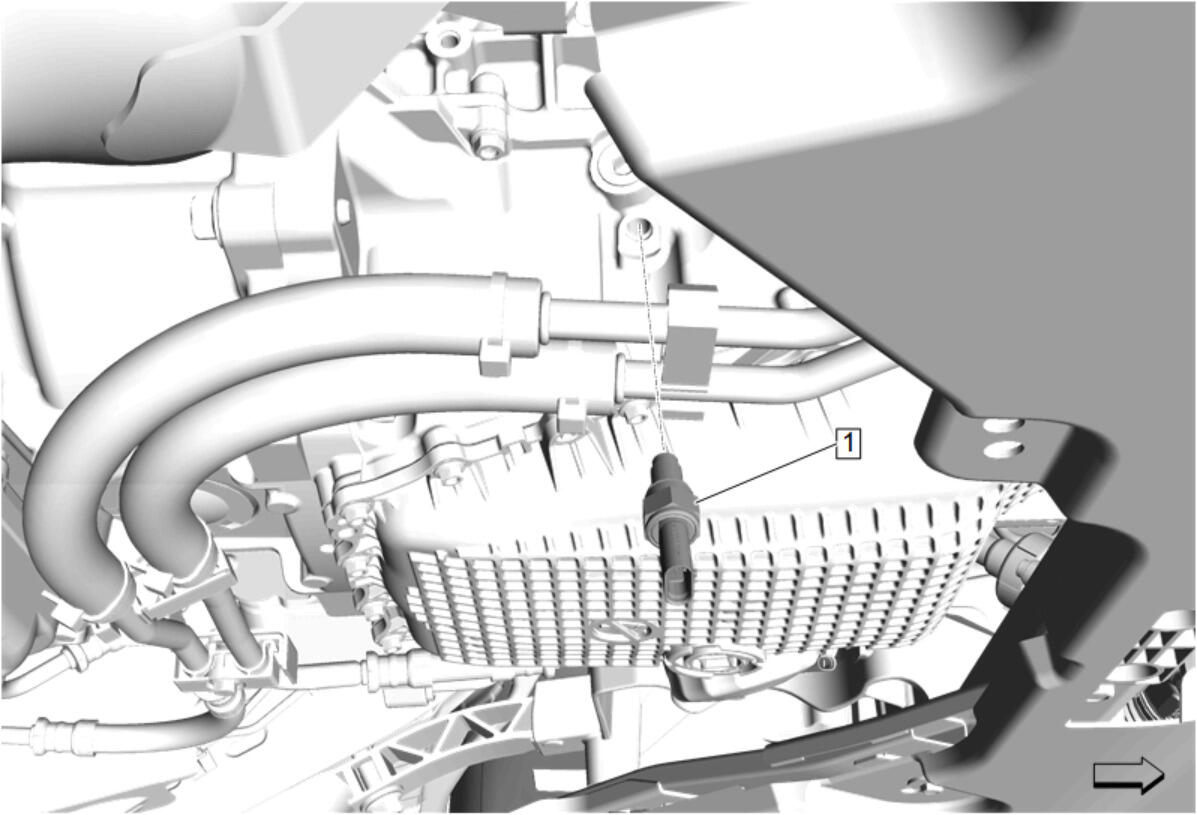

Engine Oil Temperature Sensor (1) - Install and tighten - Fastener Specifications
Connect the electrical connector.
Remove the support and lower the vehicle.
Top off engine oil as needed.
