Fastener Specifications

GM5484187Courtesy of GENERAL MOTORS COMPANY
Accelerator Pedal

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Accelerator Pedal Bracket Bolt - - 9 N.m (80 lb in) Accelerator Pedal Replacement
GM5862959Courtesy of GENERAL MOTORS COMPANY

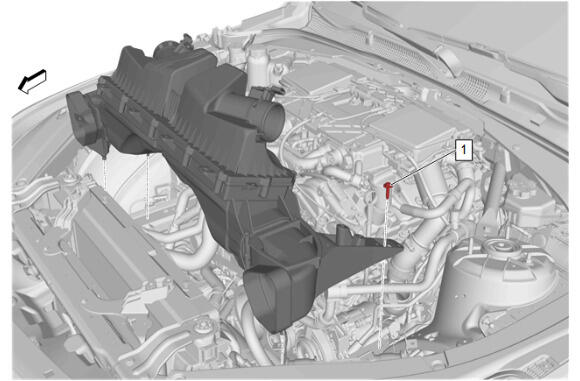

Air Cleaner Assembly

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Cleaner Bolt - - 9 N.m (80 lb in) Air Cleaner Assembly Replacement
GM5841337Courtesy of GENERAL MOTORS COMPANY

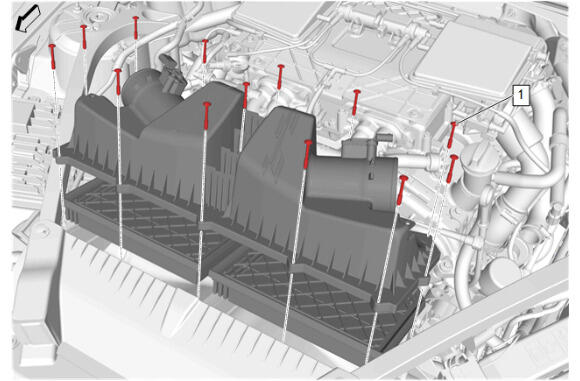

Air Cleaner Element

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Cleaner Housing Cover Bolt [13x] - - 2 N.m (18 lb in) Air Cleaner Element Replacement

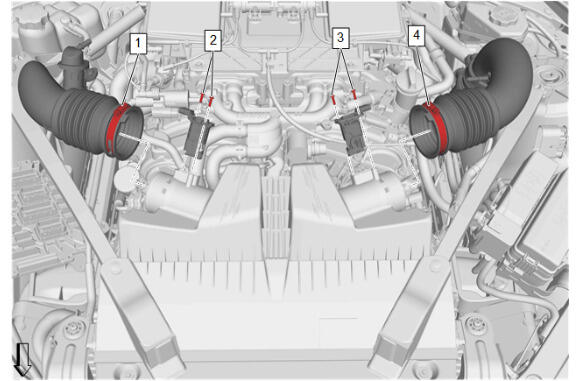

GM5841344Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Outlet Ducts and Mass Airflow Sensors

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Cleaner Outlet Duct Clamp - - 4 N.m (35 lb in) Air Cleaner Outlet Duct Replacement
2 Mass Airflow Sensor Bolt [2x] - - 1.8 N.m (16 lb in) Mass Airflow Sensor Replacement - Right Side
3 Mass Airflow Sensor Bolt [2x] - - 1.8 N.m (16 lb in) Mass Airflow Sensor Replacement - Left Side
4 Air Cleaner Outlet Duct Clamp - - 4 N.m (35 lb in) Auxiliary Air Cleaner Outlet Duct Replacement
GM5843996Courtesy of GENERAL MOTORS COMPANY

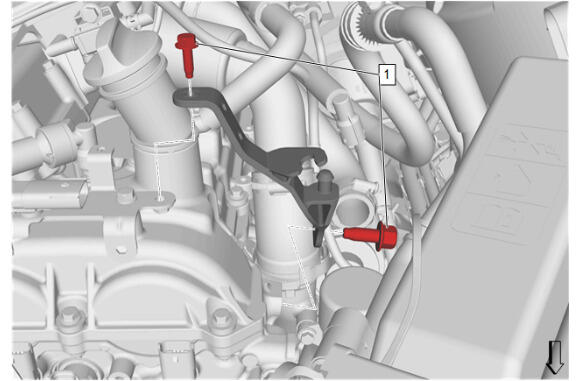

Air Cleaner Outlet Resonator Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Cleaner Outlet Duct Bracket Bolt [2x] - - 9 N.m (80 lb in) Air Cleaner Outlet Resonator Bracket Replacement

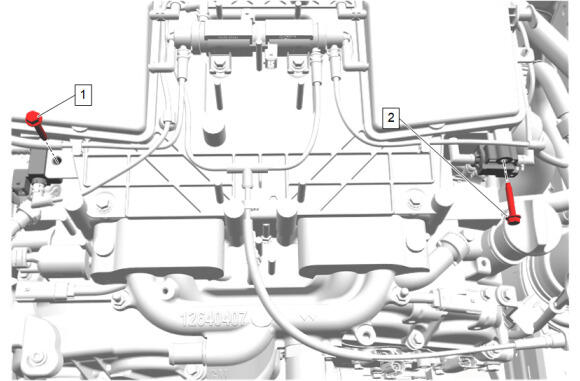

GM5892438Courtesy of GENERAL MOTORS COMPANY
Charge Air Bypass Valve Replacement Front - Positions 1 and 2

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Charge Air Bypass Valve Vacuum Tank Bolt - - 10 N.m (89 lb in) Charge Air Bypass Valve Replacement - Position 1 Front
2 Charge Air Bypass Valve Vacuum Tank Bolt - - 10 N.m (89 lb in) Charge Air Bypass Valve Replacement - Position 2 Front
GM5892530Courtesy of GENERAL MOTORS COMPANY

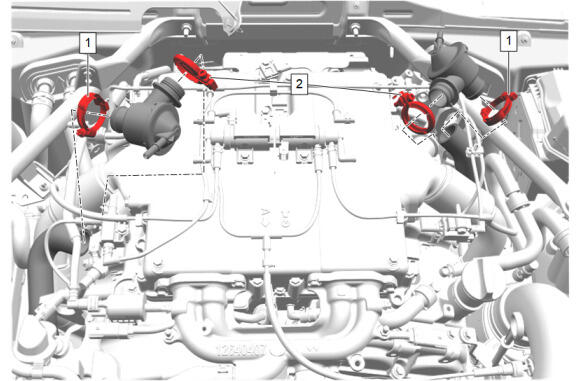

Charge Air Bypass Valve Replacement Rear (Positions 1 and 2)

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Charge Air Bypass Valve Hose Clamp [2x] - - 3.5 N.m (31 lb in) Charge Air Bypass Valve Replacement - Position 1 Rear
2 Charge Air Bypass Valve Tube Connector Clamp [2x] - - 3.5 N.m (31 lb in) Charge Air Bypass Valve Replacement - Position 2 Rear

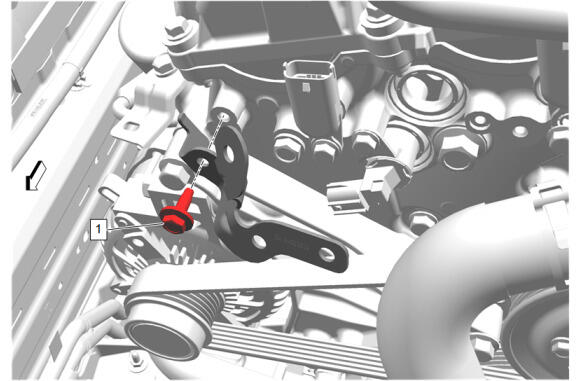

GM6093842Courtesy of GENERAL MOTORS COMPANY
Charge Air Cooler Coolant Outlet Pipe Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Charge Air Cooler Bracket Bolt - - 9 N.m (80 lb in) Camshaft Position Actuator Valve Solenoid Replacement - Bank 1 (Right Side) Exhaust
GM5921103Courtesy of GENERAL MOTORS COMPANY

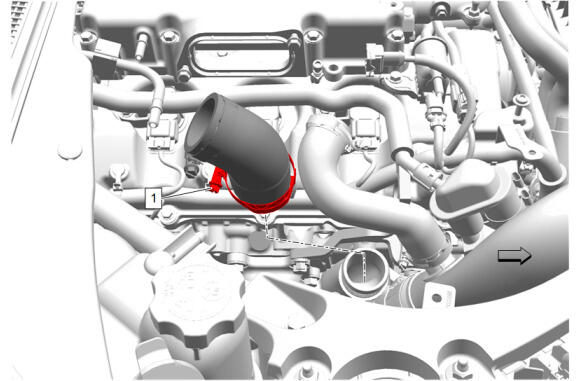

Charge Air Cooler Inlet Air Hose - Right Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Charge Air Cooler Inlet Air Hose Clamp - - 5 N.m (44 lb in) Charge Air Cooler Inlet Air Hose Replacement - Right Side

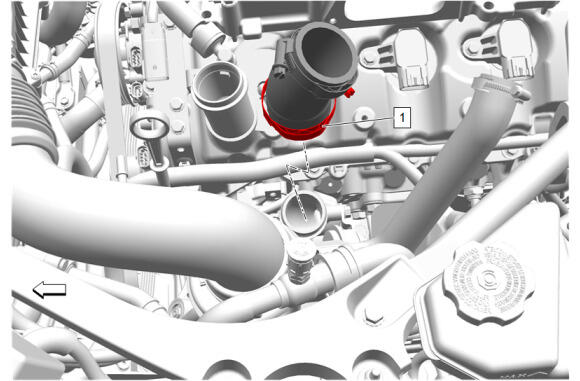

GM5921111Courtesy of GENERAL MOTORS COMPANY
Charge Air Cooler Inlet Air Hose - Left Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Charge Air Cooler Inlet Air Hose Clamp - - 5 N.m (44 lb in) Charge Air Cooler Inlet Air Hose Replacement - Left Side
GM5890658Courtesy of GENERAL MOTORS COMPANY

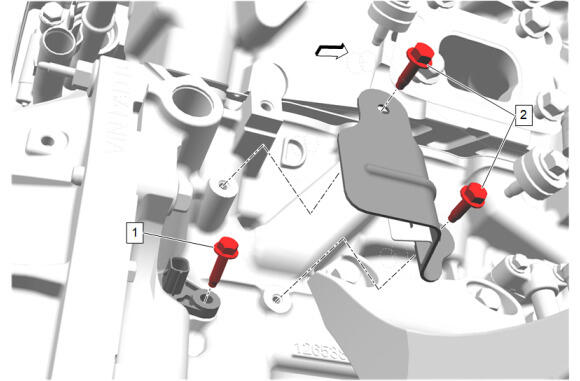

Crankshaft Position Sensor Shield

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Crankshaft Position Sensor Bolt - - 10 N.m (89 lb in) Crankshaft Position Sensor Replacement
2 Crankshaft Position Sensor Shield Bolt [2x] - - 9 N.m (80 lb in) Crankshaft Position Sensor Shield Replacement
GM5841343Courtesy of GENERAL MOTORS COMPANY

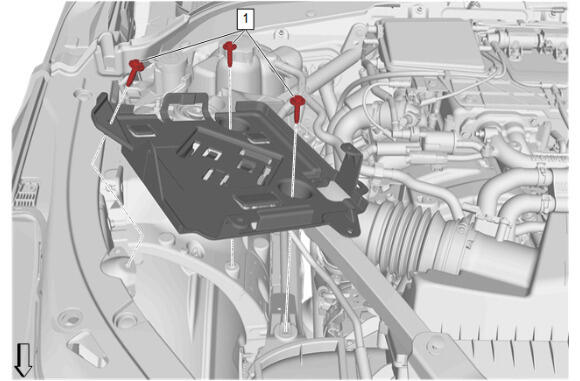

Engine Control Module Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Control Module Bracket Bolt [3x] - - 9 N.m (80 lb in) Engine Control Module Bracket Replacement

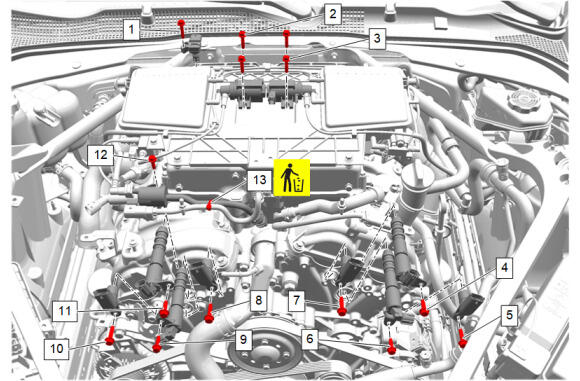

Fig 1: Exploded View Of Front Engine Sensors And Turbocharger Wastegate Regulator Solenoid Valve Components With Fasteners
GM5874528Courtesy of GENERAL MOTORS COMPANY
Front Engine Sensors and Turbocharger Wastegate Regulator Solenoid Valves

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Intake Air Pressure and Temperature Sensor Bolt - - 10 N.m (89 lb in) Intake Air Pressure and Temperature Sensor Replacement
2 Turbocharger Wastegate Actuator Vacuum Tank Bolt [2x] - - 9 N.m (80 lb in) Turbocharger Wastegate Regulator Solenoid Valve Replacement - Bank 1
3 Turbocharger Wastegate Actuator Vacuum Tank Bolt [2x] - - 9 N.m (80 lb in) Turbocharger Wastegate Regulator Solenoid Valve Replacement - Bank 2
4 Camshaft Position Actuator Solenoid Valve Bolt - - 10 N.m (89 lb in) Camshaft Position Actuator Valve Solenoid Replacement - Bank 1 (Right Side) Intake
5 Camshaft Position Sensor Bolt - - 10 N.m (89 lb in) Camshaft Position Sensor Replacement - Bank 2 (Left Side) Exhaust
6 Camshaft Position Actuator Solenoid Valve Bolt - - 10 N.m (89 lb in) Camshaft Position Actuator Valve Solenoid Replacement - Bank 1 (Right Side) Exhaust
7 Camshaft Position Sensor Bolt - - 10 N.m (89 lb in) Camshaft Position Sensor Replacement - Bank 2 (Left Side) Intake
8 Camshaft Position Sensor Bolt - - 10 N.m (89 lb in) Camshaft Position Sensor Replacement - Bank 1 (Right Side) Exhaust
9 Camshaft Position Actuator Solenoid Valve Bolt - - 10 N.m (89 lb in) Camshaft Position Actuator Valve Solenoid Replacement - Bank 2 (Left Side) Intake
10 Camshaft Position Sensor Bolt - - 10 N.m (89 lb in) Camshaft Position Sensor Replacement - Bank 1 (Right Side) Intake
11 Camshaft Position Actuator Solenoid Valve Bolt - - 10 N.m (89 lb in) Camshaft Position Actuator Valve Solenoid Replacement - Bank 2 (Left Side) Exhaust
12 Evaporative Emission Canister Purge Solenoid Valve Bracket Bolt - - 10 N.m (89 lb in) Evaporative Emission Canister Purge Solenoid Valve Replacement
13 Tie Strap Yes - - Evaporative Emission Canister Purge Solenoid Valve Replacement
GM5890326Courtesy of GENERAL MOTORS COMPANY

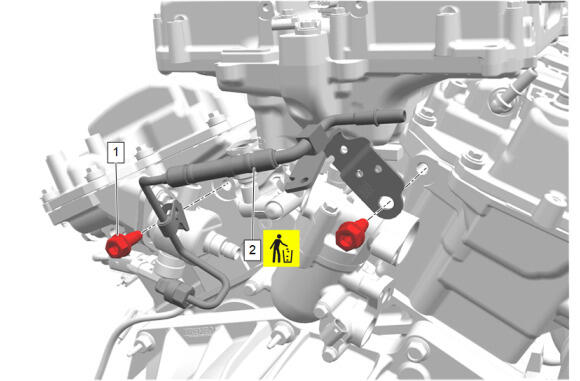

Fuel Feed Pipe

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Injection Fuel Feed and Return Pipe Retainer Bolt [2x] - - 50 N.m (37 lb ft) Fuel Feed Pipe Replacement
2 Fuel Feed Pipe Yes - - Fuel Feed Pipe Replacement
GM6131429Courtesy of GENERAL MOTORS COMPANY

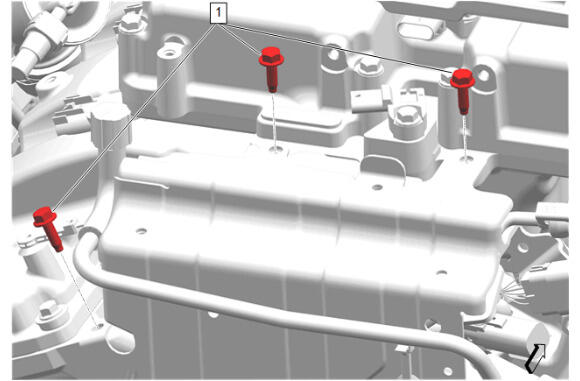

Fuel Pipe Shield

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Rear Noise Shield Bolt [3x] - - 9 N.m (80 lb in) Fuel Pipe Shield Replacement

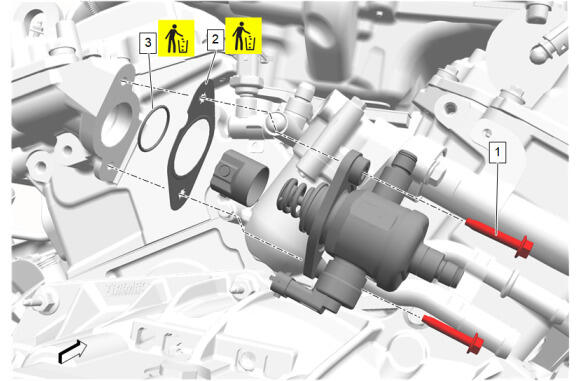

GM5873941Courtesy of GENERAL MOTORS COMPANY
Fuel Pump

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Pump Bolt [2x] - - 15 N.m (11 lb ft) Fuel Pump Replacement
2 Fuel Pump Bracket Gasket Yes - - Fuel Pump Replacement
3 Fuel Pump Housing Seal Yes - - Fuel Pump Replacement

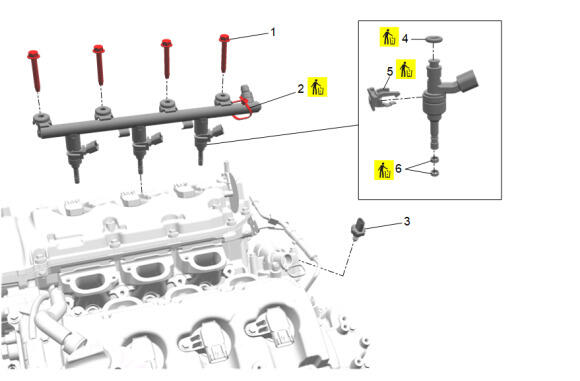

Fig 2: Exploded View Of Fuel Rail And Fuel Injector Components With Fasteners
GM5890241Courtesy of GENERAL MOTORS COMPANY
Fuel Rail and Fuel Injector Components

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Injection Fuel Rail Bolt [8x] - Yes 25 N.m (18 lb ft) Fuel Injection Fuel Rail Assembly Replacement - Bank 1
Fuel Injection Fuel Rail Assembly Replacement - Bank 2
2 Tie Strap Yes - - Fuel Injection Fuel Rail Assembly Replacement - Bank 1
3 Fuel Rail Pressure Sensor - - 32.5 N.m (24 lb ft) Fuel Rail Pressure Sensor Replacement
4 Fuel Injection Fuel Rail Seal Yes - - Fuel Injector Replacement - Bank 1
Fuel Injector Replacement - Bank 2
5 Fuel Injector Retainer Yes - - Fuel Injector Replacement - Bank 1
Fuel Injector Replacement - Bank 2
6 Fuel Injector Nozzle Housing Seal Yes - - Fuel Injector Replacement - Bank 1
Fuel Injector Replacement - Bank 2

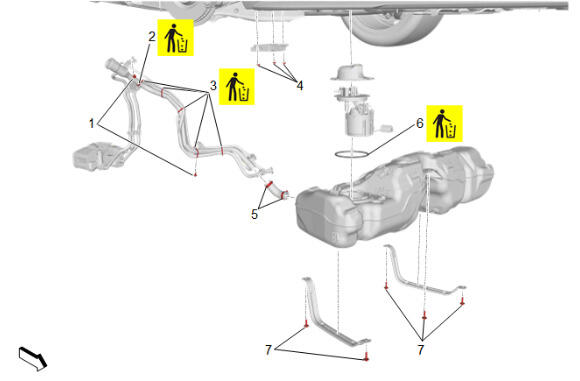

Fig 3: Exploded View Of Fuel Tank Components And Fasteners
GM5840793Courtesy of GENERAL MOTORS COMPANY
Fuel Tank and Components

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Tank Filler Pipe Ground Bolt [2x] - - 9 N.m (80 lb in) Fuel Tank Filler Pipe Replacement
2 Evaporative Emission Canister Filter Hose Strap Yes - - Evaporative Emission Canister Air Inlet Hose Replacement
3 Evaporative Emission Canister Filter Hose Strap [4x] Yes - - Evaporative Emission Canister Purge Hose Replacement
Fuel Tank Vent Hose Replacement
4 Fuel Pump Power Control Module Nut [3x] - - 9 N.m (80 lb in) Fuel Pump Power Control Module Replacement
5 Fuel Tank Filler Hose Clamp [2x] - - 3.5 N.m (31 lb in) Fuel Tank Filler Hose Replacement
6 Fuel Pump Seal Yes - - Fuel Tank Fuel Pump Module Replacement (MG9) , or Fuel Tank Fuel Pump Module Replacement (MHU)
7 Fuel Tank Strap Bolt [5x] - - 22 N.m (16 lb ft) Fuel Tank Replacement (MG9) , or Fuel Tank Replacement (MHU)
GM5873872Courtesy of GENERAL MOTORS COMPANY

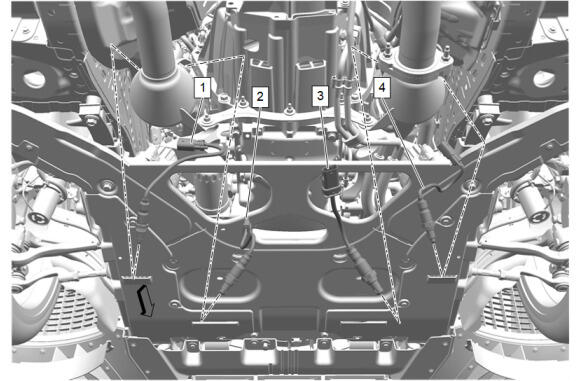

Heated Oxygen Sensors

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heated Oxygen Sensor - - 42 N.m (31 lb ft) Heated Oxygen Sensor Replacement - Bank 1 Sensor 1
2 Heated Oxygen Sensor - - 42 N.m (31 lb ft) Heated Oxygen Sensor Replacement - Bank 1 Sensor 2
3 Heated Oxygen Sensor - - 42 N.m (31 lb ft) Heated Oxygen Sensor Replacement - Bank 2 Sensor 1
4 Heated Oxygen Sensor - - 42 N.m (31 lb ft) Heated Oxygen Sensor Replacement - Bank 2 Sensor 2

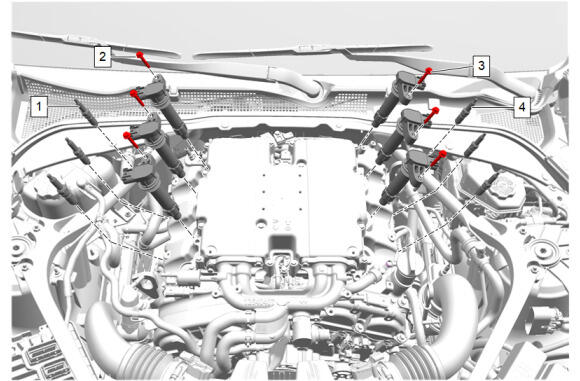

GM5874761Courtesy of GENERAL MOTORS COMPANY
Ignition Components

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Gas Engine Ignition Spark Plug [3x] - - 18 N.m (13 lb ft) Gas Engine Ignition Spark Plug Replacement - Right Side
2 Ignition Coil Bolt [3x] - - 10 N.m (89 lb in) Ignition Coil Replacement - Bank 2
3 Ignition Coil Bolt [3x] - - 10 N.m (89 lb in) Ignition Coil Replacement - Bank 1
4 Gas Engine Ignition Spark Plug [3x] - - 18 N.m (13 lb ft) Gas Engine Ignition Spark Plug Replacement - Left Side
GM5890680Courtesy of GENERAL MOTORS COMPANY

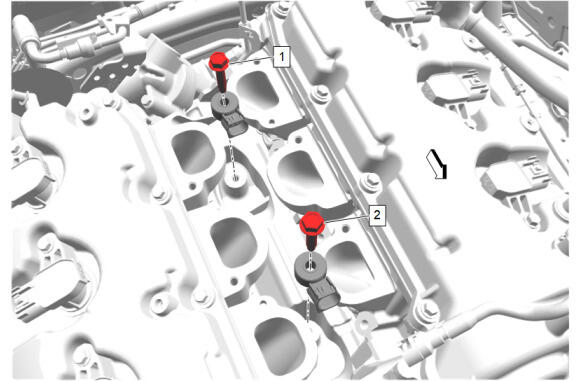

Knock Sensors

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Knock Sensor Bolt - - 25 N.m (18 lb ft) Knock Sensor Replacement - Bank 1
2 Knock Sensor Bolt - - 25 N.m (18 lb ft) Knock Sensor Replacement - Bank 2

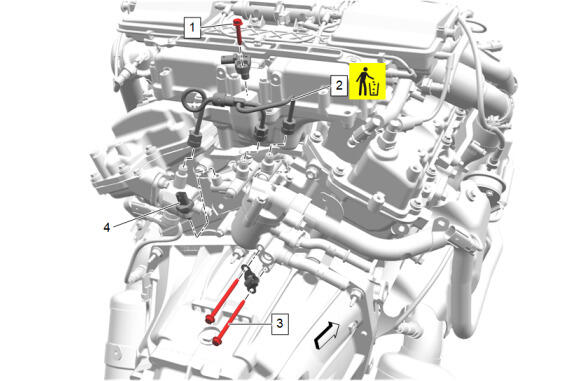

GM5873930Courtesy of GENERAL MOTORS COMPANY
Rear Engine Sensors and Fuel Feed Intermediate Pipe

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Manifold Absolute Pressure Sensor Bolt - - 10 N.m (89 lb in) Manifold Absolute Pressure Sensor Replacement
2 Fuel Feed Intermediate Pipe Nut [3x] Yes - 28 N.m (21 lb ft) Fuel Feed Intermediate Pipe Replacement
3 Engine Coolant Thermostat Housing Bolt [2x] - - 10 N.m (89 lb in) Engine Coolant Temperature Sensor Replacement
4 Fuel Rail Pressure Sensor - - 32.5 N.m (24 lb ft) Fuel Rail Pressure Sensor Replacement

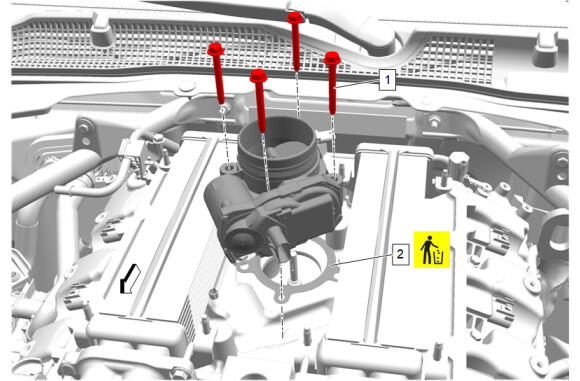

GM5890308Courtesy of GENERAL MOTORS COMPANY
Throttle Body Assembly

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Throttle Body Bolt [4x] - - 10 N.m (89 lb in) Throttle Body Assembly Replacement
2 Throttle Body Gasket Yes - - Throttle Body Assembly Replacement
GM5890336Courtesy of GENERAL MOTORS COMPANY

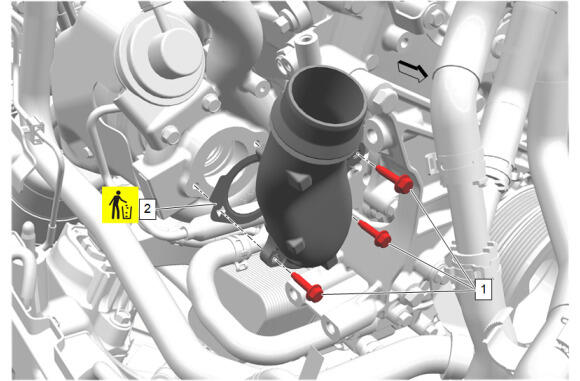

Turbocharger Air Inlet Adapter - Bank 1

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Turbocharger Air Inlet Adapter Bolt [3x] - - 10 N.m (89 lb in) Turbocharger Air Inlet Adapter Replacement - Bank 1
2 Turbocharger Air Inlet Adapter Seal Yes - - Turbocharger Air Inlet Adapter Replacement - Bank 1
GM5890346Courtesy of GENERAL MOTORS COMPANY

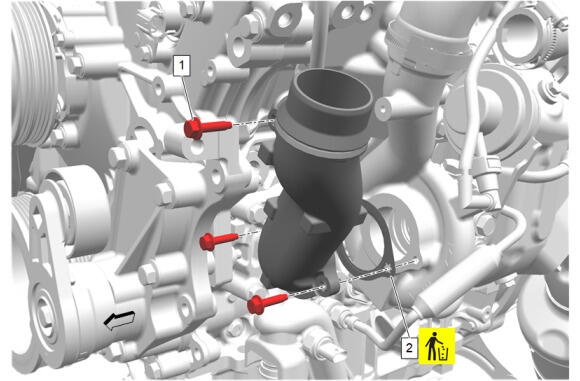

Turbocharger Air Inlet Adapter - Bank 2

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Turbocharger Air Inlet Adapter Bolt [3x] - - 10 N.m (89 lb in) Turbocharger Air Inlet Adapter Replacement - Bank 2
2 Turbocharger Air Inlet Adapter Seal Yes - - Turbocharger Air Inlet Adapter Replacement - Bank 2
GM5890387Courtesy of GENERAL MOTORS COMPANY

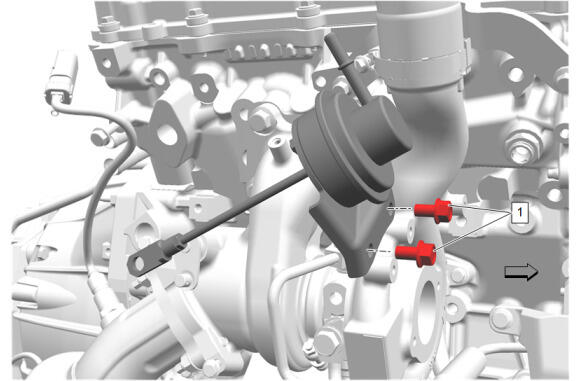

Turbocharger Wastegate Actuator - Right Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Turbocharger Wastegate Actuator Bolt [2x] - - - Turbocharger Wastegate Actuator Replacement - Right Side

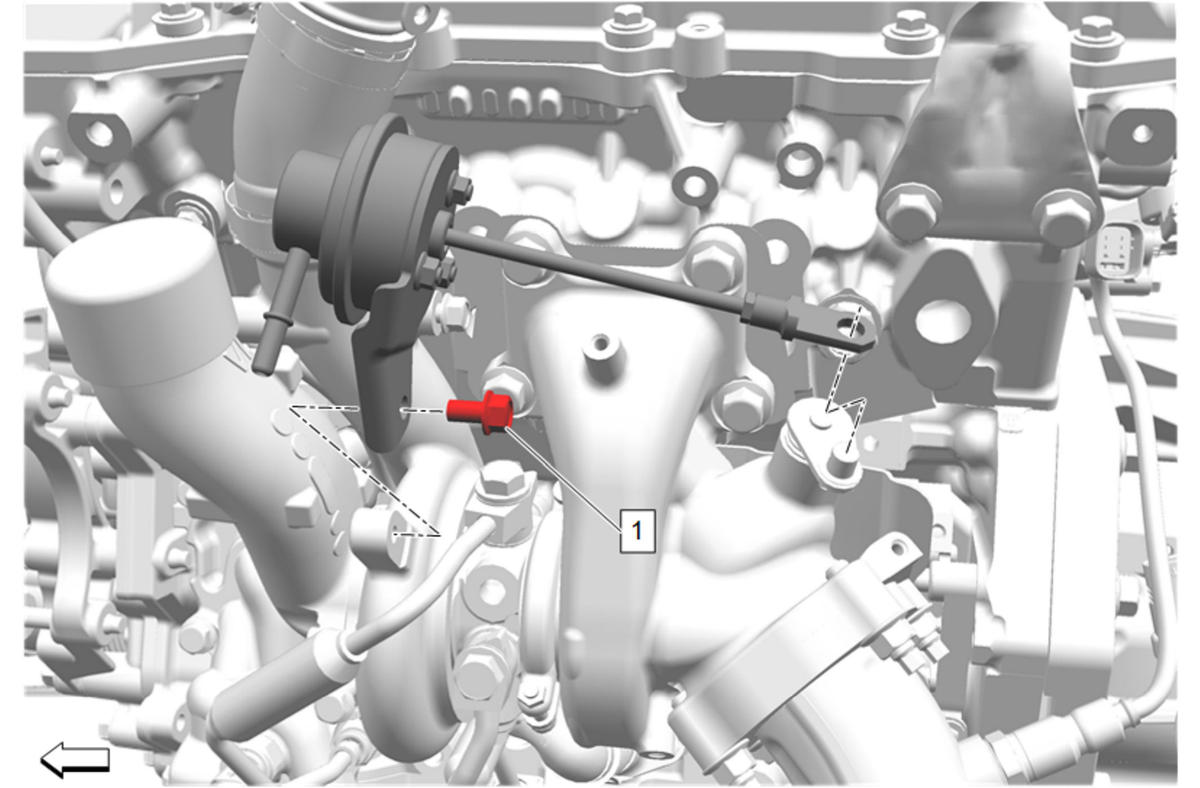

GM5890519Courtesy of GENERAL MOTORS COMPANY
Turbocharger Wastegate Actuator - Left Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Turbocharger Wastegate Actuator Bolt [2x] - - - Turbocharger Wastegate Actuator Replacement - Left Side

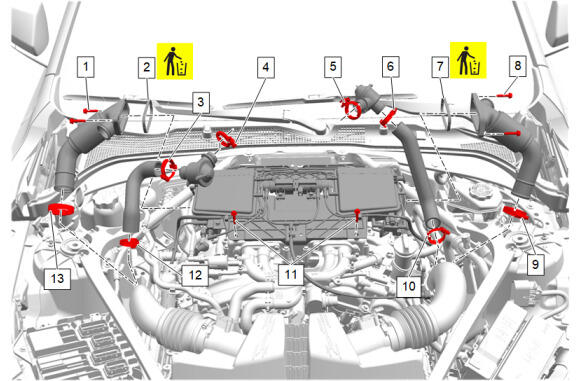

Fig 4: Exploded View Of Turbocharger Wastegate Actuator Vacuum Tank And Charge Air Cooler Components With Fasteners
GM5874881Courtesy of GENERAL MOTORS COMPANY
Turbocharger Wastegate Actuator Vacuum Tank and Charge Air Cooler Components

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Charge Air Cooler Inlet Air Tube Bolt [2x] - - 9 N.m (80 lb in) Charge Air Cooler Inlet Air Hose Replacement - Right Side
2 Charge Air Cooler Inlet Air Tube Seal Yes - - Charge Air Cooler Inlet Air Hose Replacement - Right Side
3 Charge Air Bypass Valve Hose Clamp - - 3.5 N.m (31 lb in) Charge Air Bypass Valve Replacement - Position 1 Rear
4 Charge Air Bypass Valve Tube Connector Clamp - - 3.5 N.m (31 lb in) Charge Air Bypass Valve Replacement - Position 1 Rear
5 Charge Air Bypass Valve Tube Connector Clamp - - 5 N.m (44 lb in) Charge Air Bypass Valve Replacement - Position 2 Rear
6 Charge Air Bypass Valve Hose Clamp - - 3.5 N.m (31 lb in) Charge Air Bypass Valve Replacement - Position 2 Rear
7 Charge Air Cooler Inlet Air Tube Seal Yes - - Charge Air Cooler Inlet Air Hose Replacement - Left Side
8 Charge Air Cooler Inlet Air Tube Bolt [2x] - - 9 N.m (80 lb in) Charge Air Cooler Inlet Air Hose Replacement - Left Side
9 Charge Air Bypass Valve Tube Connector Clamp - - 5 N.m (44 lb in) Charge Air Cooler Inlet Air Hose Replacement - Left Side
10 Charge Air Bypass Valve Hose Clamp - - 3.5 N.m (31 lb in) Charge Air Bypass Valve Hose Replacement - Right Side
11 Turbocharger Wastegate Actuator Vacuum Tank Bolt [2x] - - 9 N.m (80 lb in) Turbocharger Wastegate Actuator Vacuum Tank Replacement
12 Charge Air Bypass Valve Hose Clamp - - 3.5 N.m (31 lb in) Charge Air Bypass Valve Hose Replacement - Right Side
13 Charge Air Bypass Valve Tube Connector Clamp - - 5 N.m (44 lb in) Charge Air Cooler Inlet Air Hose Replacement - Right Side

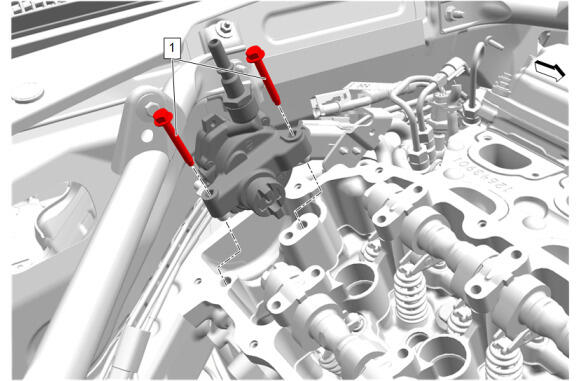

GM5892316Courtesy of GENERAL MOTORS COMPANY
Vacuum Pump Replacement

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Vacuum Pump Bolt [2x] - - 10 N.m (89 lb in) Vacuum Pump Replacement
About FixVault
