Installation Procedure

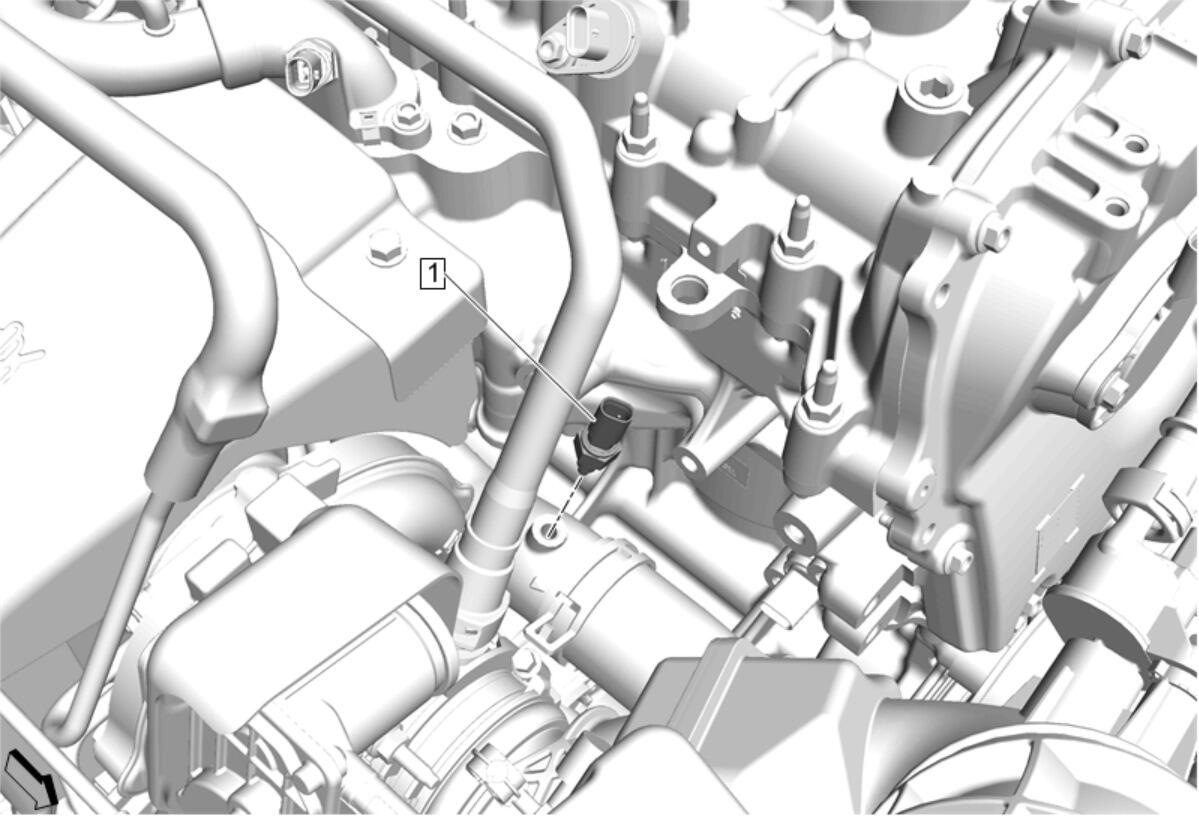

  1. GM5395544Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Component Fastener Tightening Caution .

    Engine Coolant Temperature Sensor (1) - Install - Fastener Specifications

  2. Connect the electrical connector.
  3. Fill the cooling system. Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716) .
