Installation Procedure

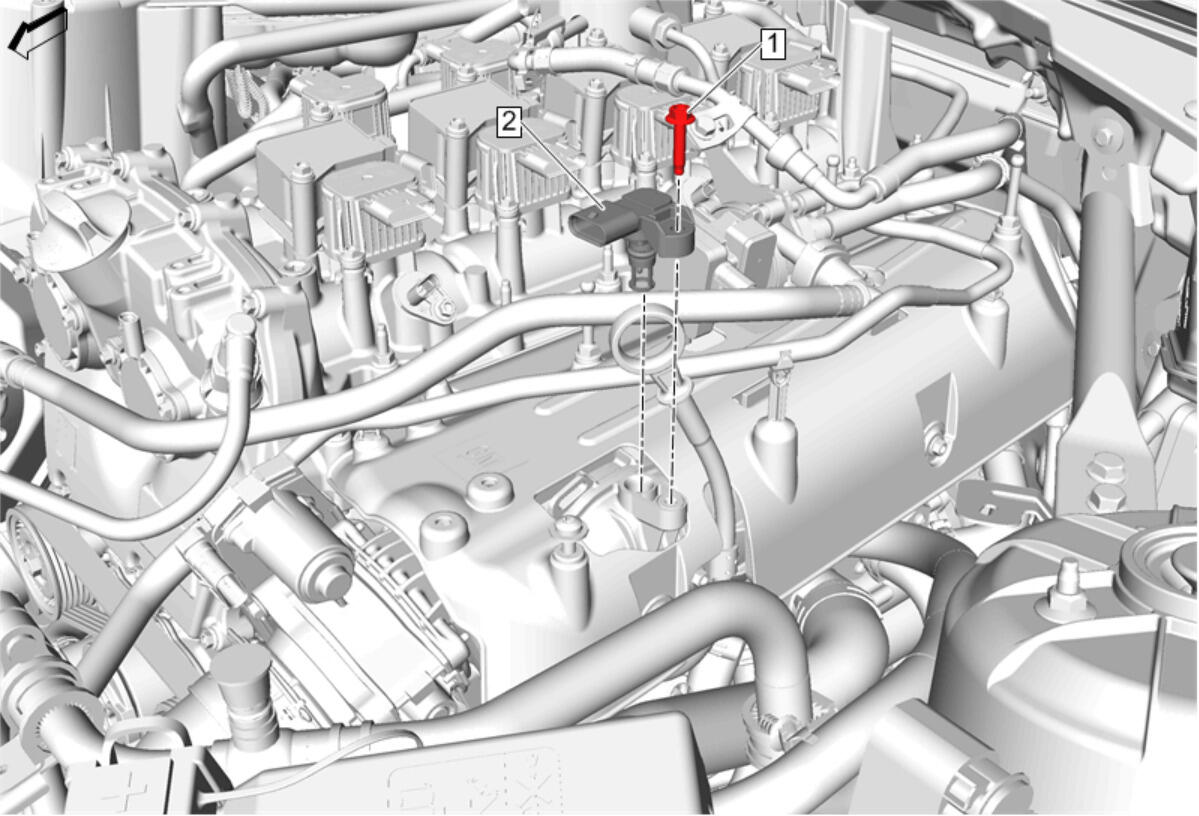

  1. GM5395517Courtesy of GENERAL MOTORS COMPANY

    Clean and inspect O-Ring and apply engine oil. Adhesives, Fluids, Lubricants, and Sealers

  2. Intake Air Pressure and Temperature Sensor (2) - Install
  3. Intake Air Pressure and Temperature Sensor Bolt (1) - Install and tighten - Fastener Specifications
  4. Connect the electrical connector.
  5. Perform the intake system learned values reset. Intake System Learned Values Reset
