Installation Procedure
- Clean and inspect O-Ring and apply engine oil. Adhesives, Fluids, Lubricants, and Sealers

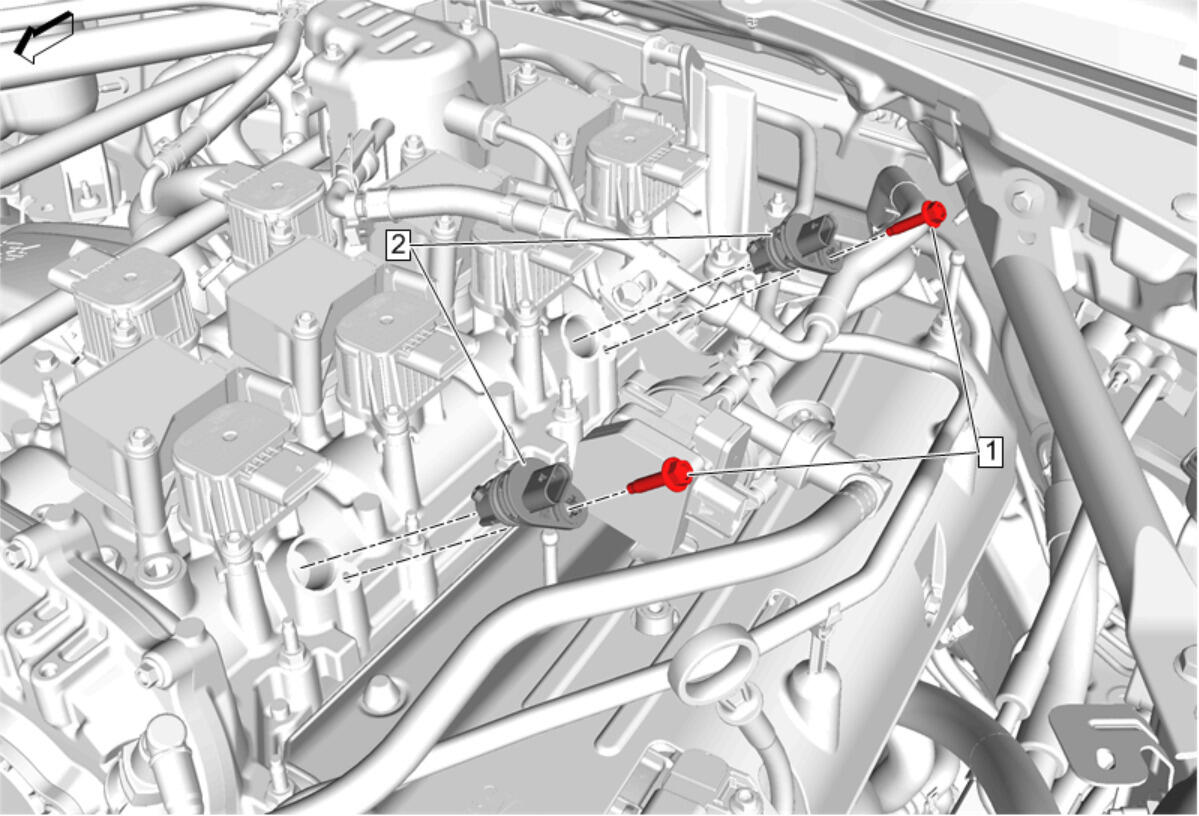

- Camshaft Intake Lobe Sensor (2) - Install
- Camshaft Intake Lobe Sensor Bolt (1) - Install and tighten - Fastener Specifications
- Connect the camshaft intake lobe sensor electrical connector.
Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install
Push down on the front of the intake manifold cover (2).
- Intake Manifold Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Install the oil fill cap.
CAUTION:
Refer to Fastener Caution .
