Installation Procedure

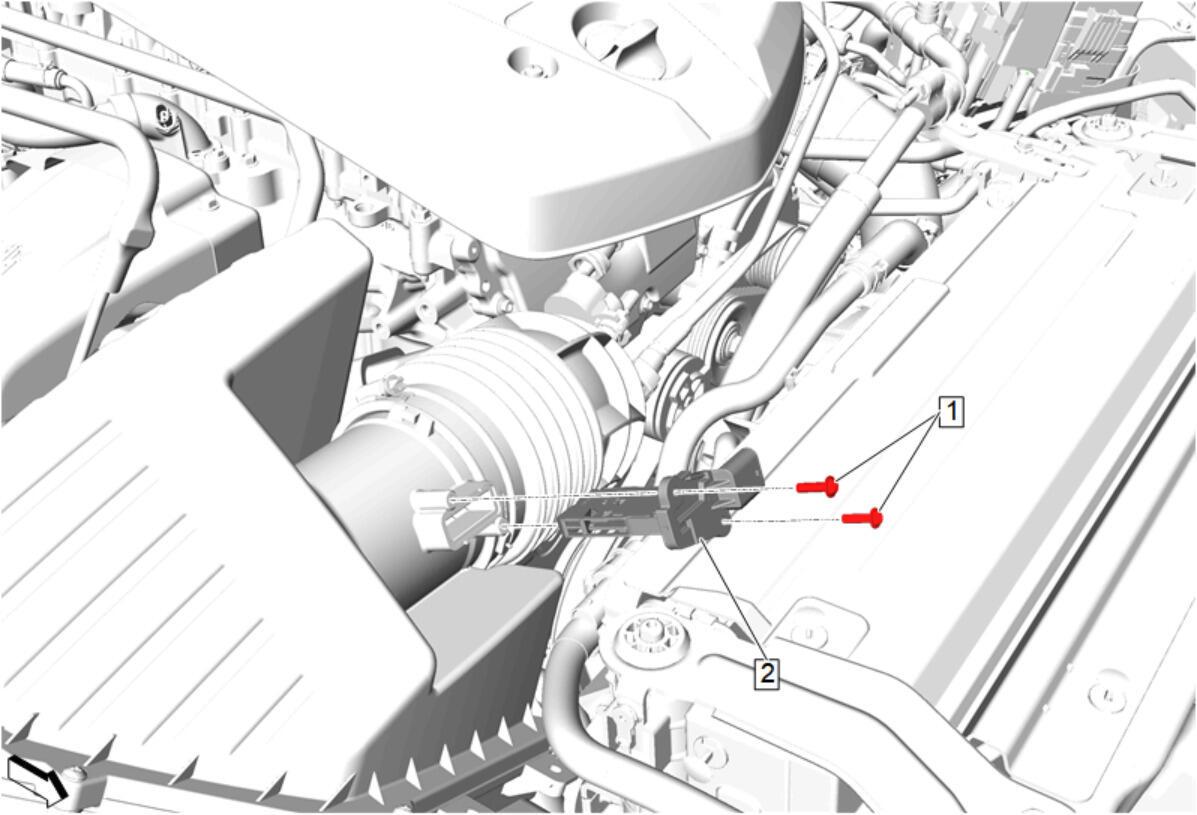

  1. GM5398922Courtesy of GENERAL MOTORS COMPANY

    Mass Airflow Sensor (2) - Install

  2. Mass Airflow Sensor Bolt (1) - Install and tighten [2x] - Fastener Specifications
  3. Connect the electrical connector.
