Removal Procedure

  1. GM5605398Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Insulator Retainer (1) - Remove [2x]

  2. GM5605404Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator (1) - Remove

  3. GM5002004Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct Bolt (1) - Remove

  4. GM5568663Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct (1) - Remove

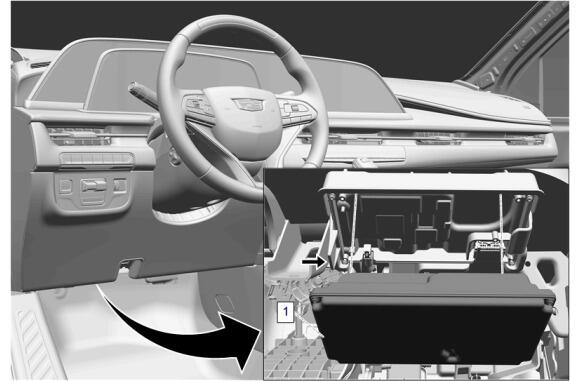

  5. GM5618475Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connectors.

  6. Release the retaining tab.
  7. Driver Monitoring System Module (1) - Remove
