Fastener Specifications
NOTE:

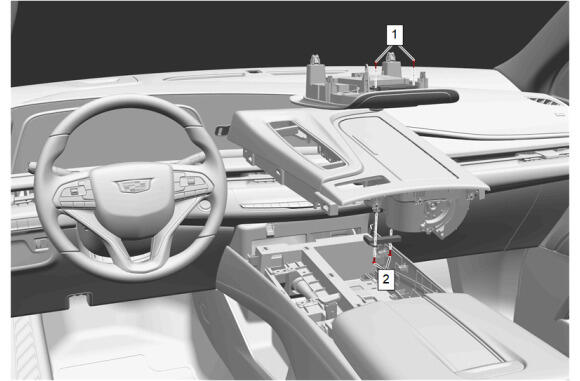

Callouts in the following chart represent components shown in graphic above.
Low Frequency Console Antenna & Garage Door Opener Transmitter
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Garage Door Opener Transmitter Bolt [2x] | - | - | 1.5 N.m (13 lb in) | Garage Door Opener Transmitter Replacement |
| 2 | Theft Deterrent Module Bolt [2x] | - | - | 1.5 N.m (13 lb in) | Low Frequency Console Antenna Replacement |
