Removal Procedure

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

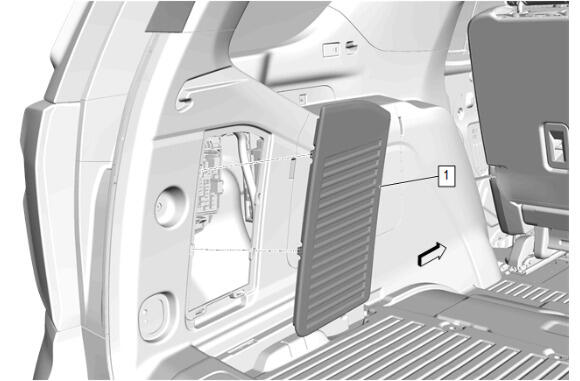

  2. GM5560847Courtesy of GENERAL MOTORS COMPANY

    Quarter Stowage Pocket Door (1) - Remove

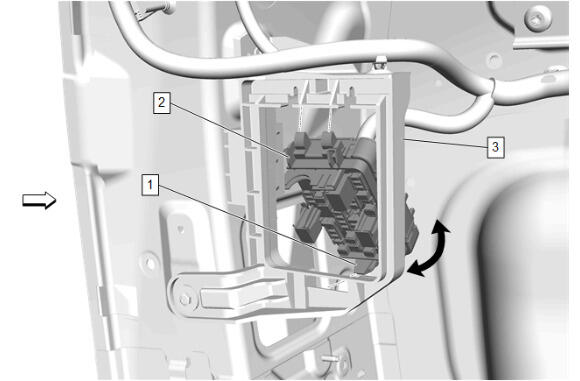

  3. GM5562763Courtesy of GENERAL MOTORS COMPANY

    Disengage the retaining tab (1) and rotate the body wiring harness junction block (2), away from the body wiring harness junction block bracket (3).

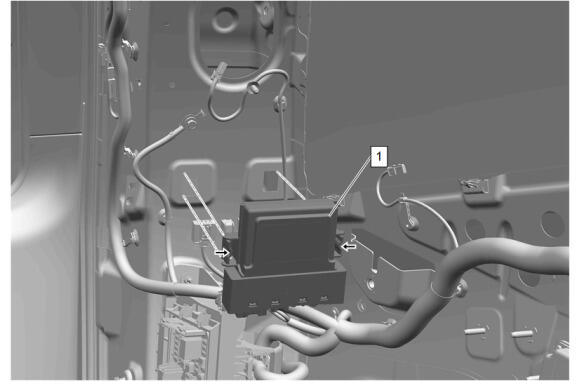

  4. GM5615739Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connectors.

  5. Release the retaining tabs.
  6. Rear Gate Module (1) - Remove
