Installation Procedure

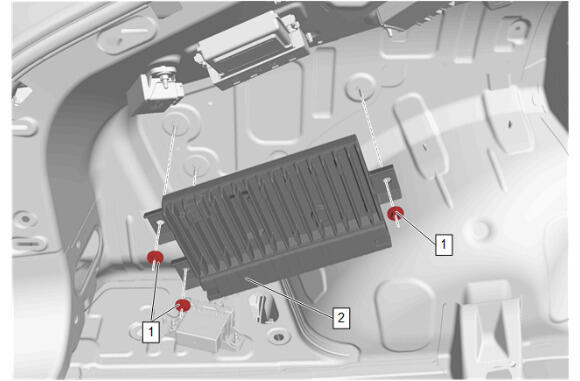

  1. GM5946471Courtesy of GENERAL MOTORS COMPANY

    Image Processing Module (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Active Safety Control Module Bracket Nut (1) - Install and tighten [3x] - Fastener Specifications
  3. Connect the electrical connectors.

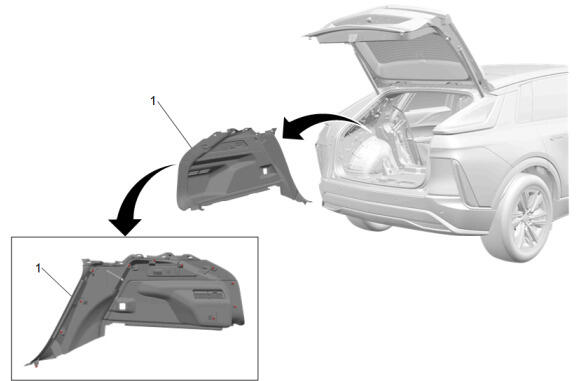

  4. GM5956534Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  5. Quarter Lower Rear Trim Panel- Left Side (1) - Install

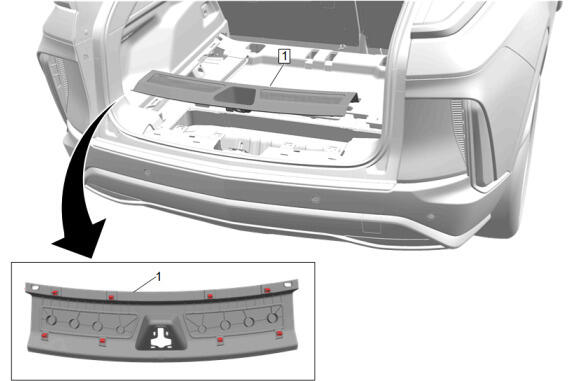

  6. GM5956532Courtesy of GENERAL MOTORS COMPANY

    Liftgate Sill Garnish Molding (1) - Install

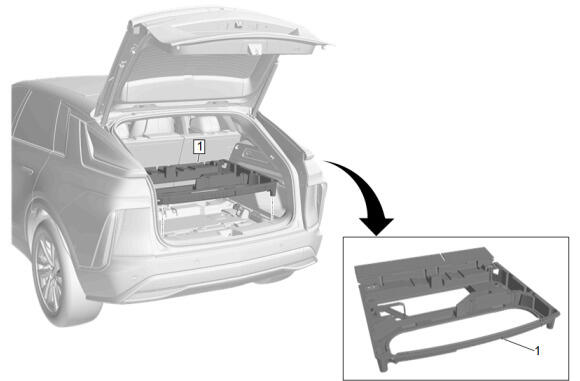

  7. GM5956097Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Floor Stowage Compartment Tray (1) - Install

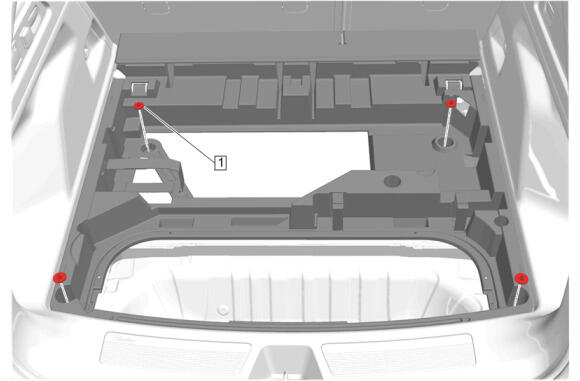

  8. GM5966583Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Floor Stowage Compartment Retainer (1) - Install and tighten [4x] - Fastener Specifications

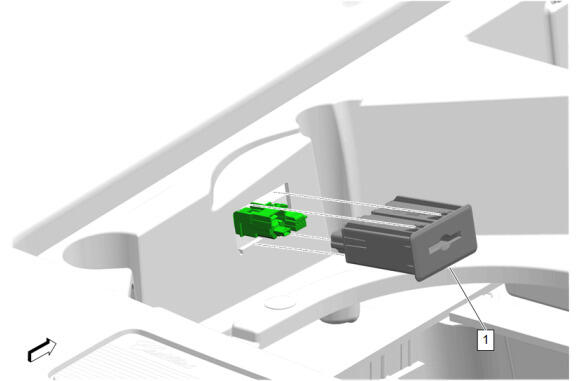

  9. GM6154833Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors. (1)

  10. Card Reader Receptacle (2) - Install

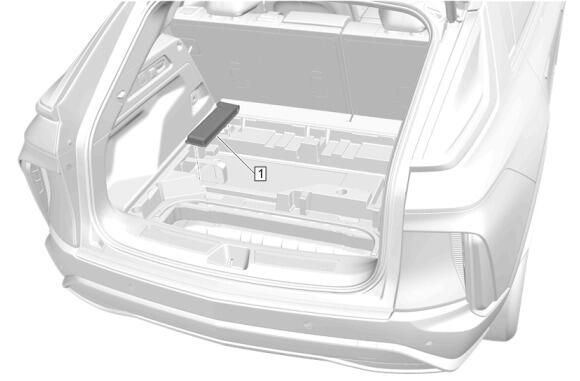

  11. GM5966581Courtesy of GENERAL MOTORS COMPANY

    Tow Eye (1) - Install

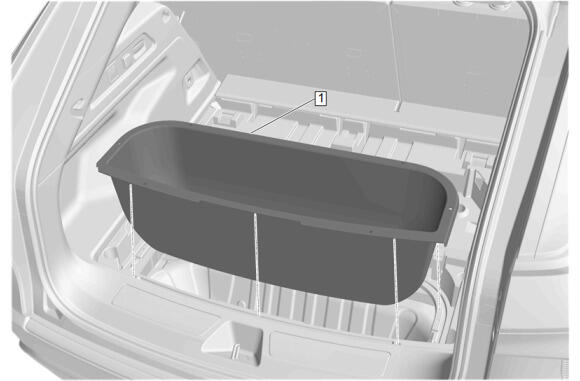

  12. GM5956098Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Floor Stowage Trim Compartment (1) - Install

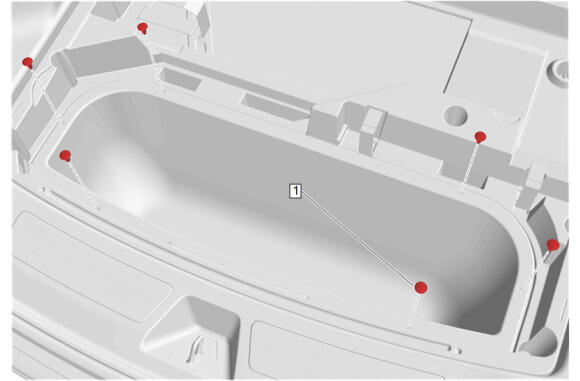

  13. GM5956095Courtesy of GENERAL MOTORS COMPANY

    Load Floor Stowage Compartment Cover Retainer (1) - Install [6x]

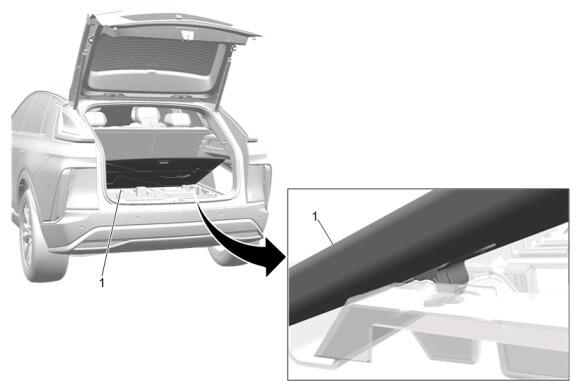

  14. GM5956096Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The load floor stowage compartment cover (1) is retained by two integral hooks attaching it to the rear compartment floor stowage compartment tray.

    Load Floor Stowage Compartment Cover (1) - Install

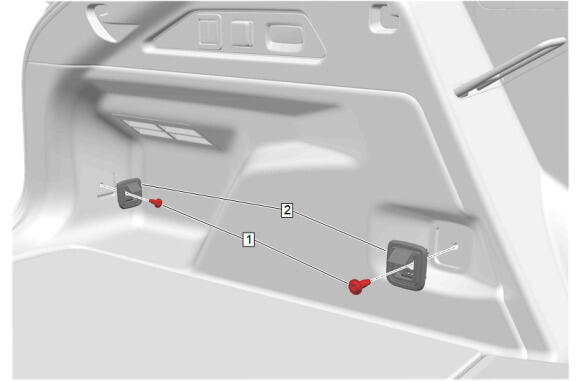

  15. GM5956094Courtesy of GENERAL MOTORS COMPANY

    Cargo Tie Down Loop (2) - Install [2x]

  16. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
  17. Cargo Tie Down Loop Bolt (1) - Install and tighten [2x] - Fastener Specifications
  18. GM5951675Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  19. Ensure the seat belt webbing does not become trapped during installation.
  20. Feed the seat belt through the quarter window trim finish panel (3).
  21. Quarter Window Trim Finish Panel (3) - Install
  22. Quarter Window Trim Finish Panel Bolt (2) - Install and tighten [2x] - Fastener Specifications
  23. Quarter Window Trim Finish Panel Bolt Cap (1) - Install [2x]
  24. GM5951832Courtesy of GENERAL MOTORS COMPANY

    Luggage Shade (1) - Install

  25. Fold the rear seat to the full upward position.

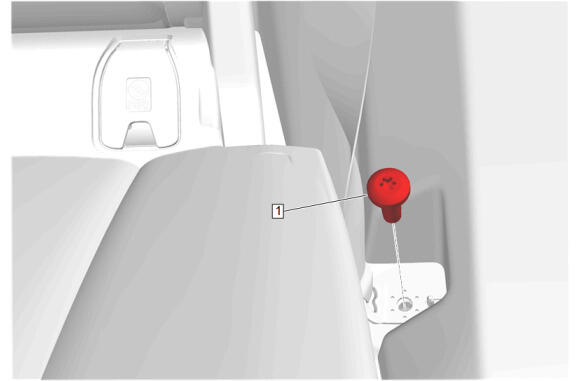

  26. GM5951677Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Belt Anchor Plate Bolt- Left Side (1) - Install and tighten - Fastener Specifications

  27. Install the rear floor panel carpet.

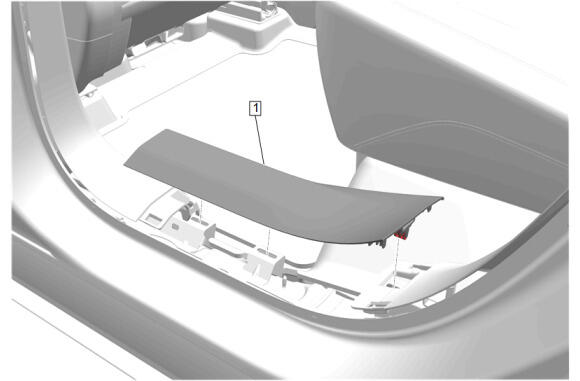

  28. GM5950620Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Sill Garnish Molding- Left Side (1) - Install

  29. Perform the necessary programming and setup procedure: Control Module References .
