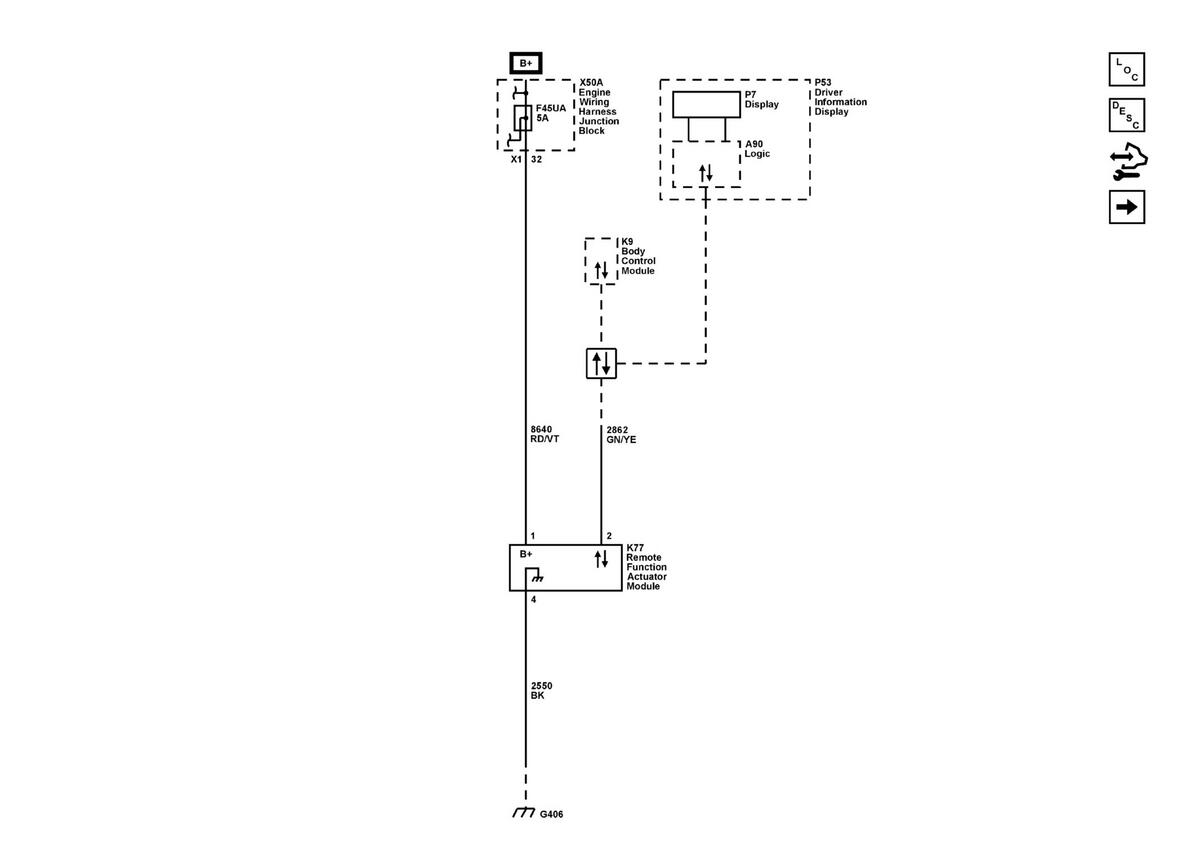

Home › Cadillac › 2023 › LYRIQ Debut Edition › Repair and Diagnosis › Body & Frame › Door Locks › Keyless Entry And Remote Functions › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry - Active
