Installation Procedure

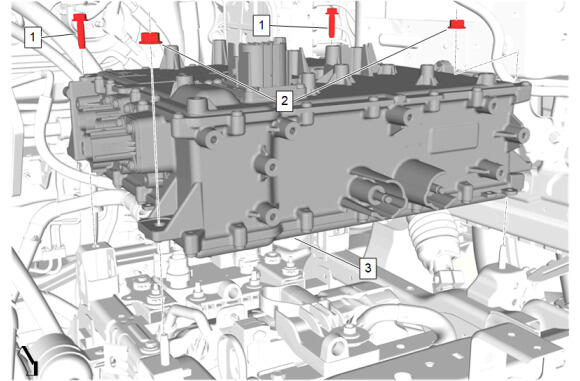

  1. GM6148387Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Battery Charger (3) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Drive Motor Power Distribution Control Module Nut (2) - Install and tighten [2x] - Fastener Specifications
  3. Drive Motor Power Distribution Control Module Bolt (1) - Install and tighten [2x] - Fastener Specifications

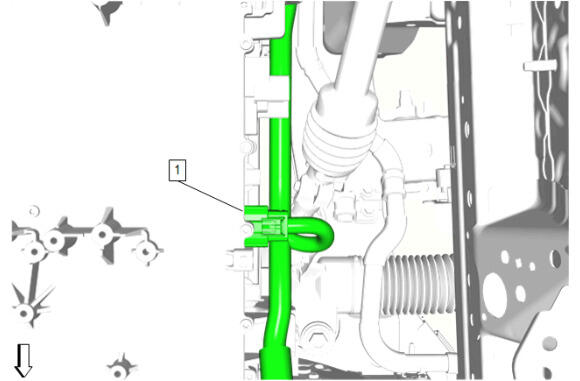

  4. GM6148386Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector. (1)

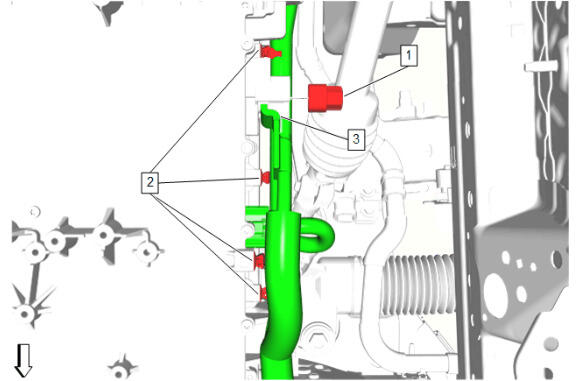

  5. GM6148385Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Terminal (3) - Install

  6. Position the wiring harness and connect the harness retainers. (2) [4x]
  7. Engine Wiring Harness Battery Lead Nut (1) - Install and tighten - Fastener Specifications

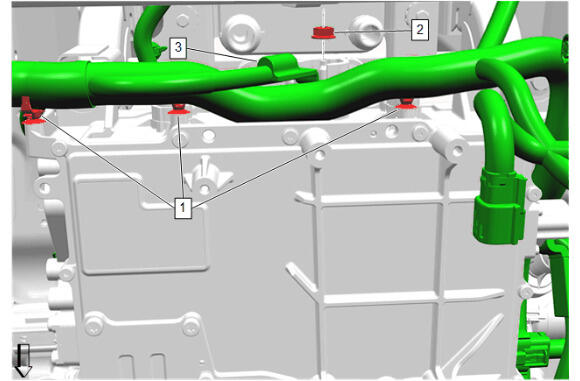

  8. GM6152003Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Terminal (3) - Install

  9. Engine Wiring Harness Ground Nut (2) - Install and tighten - Fastener Specifications
  10. Position the wiring harness and connect the harness retainers. (1) [3x]

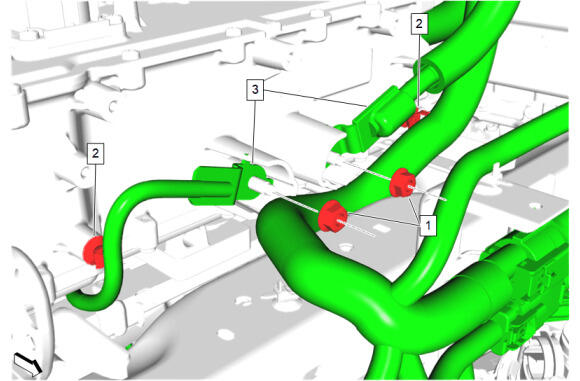

  11. GM6148383Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Terminal (3) - Install [2x]

  12. Position the wiring harness and connect the harness retainers. (2) [2x]
  13. Engine Wiring Harness Ground Nut (1) - Install and tighten [2x] - Fastener Specifications

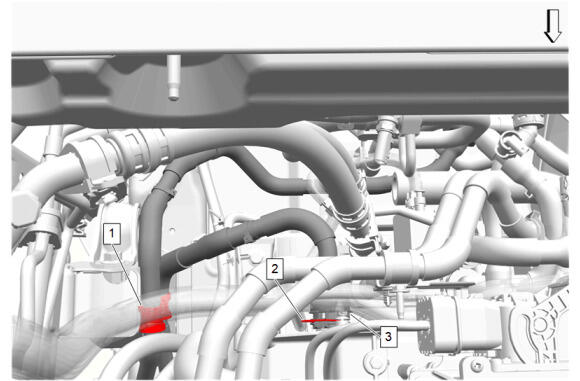

  14. GM5969078Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Control Module Radiator Inlet Hose (3) @ Battery Charger - Install

  15. Retainer (2) - Engage
  16. Rear Electric Drive Transmission Module Coolant Extension Secondary Hose Clip (1) - Install

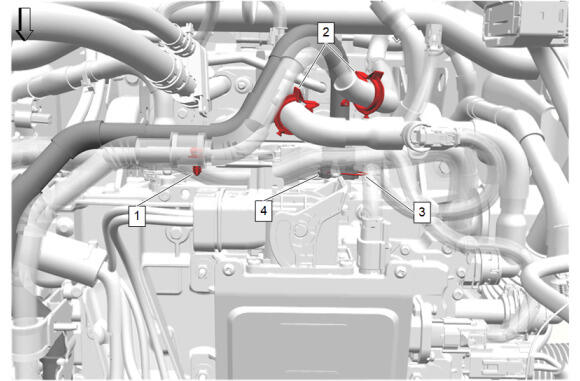

  17. GM5951581Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Battery Charger Inlet Hose (4) @ Battery Charger - Install

  18. Retainer (3) - Engage
  19. Heater Inlet and Outlet Pipe Clamp (2) - Install [2x]
  20. Retainer (1) - Install

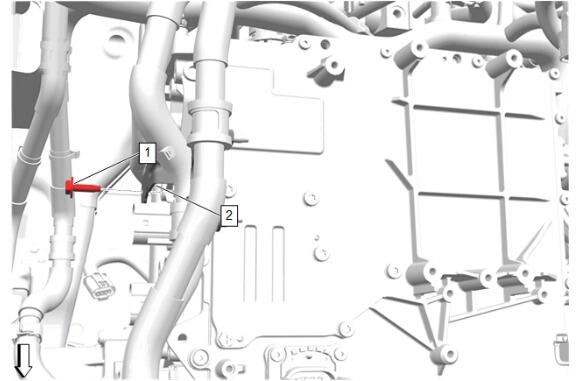

  21. GM6152006Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Battery Charger Inlet Hose Bracket (2) - Reposition

  22. Drive Motor Battery Charger Inlet Hose Bracket Bolt (1) - Install and tighten - Fastener Specifications

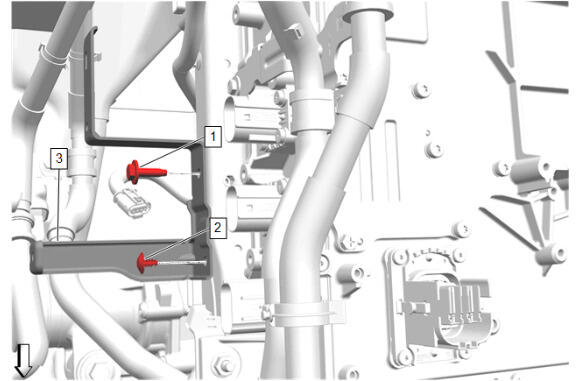

  23. GM6152004Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Bracket (3) - Reposition

  24. Engine Wiring Harness Retainer (2) - Install
  25. Engine Wiring Harness Ground Bolt (1) - Install and tighten - Fastener Specifications

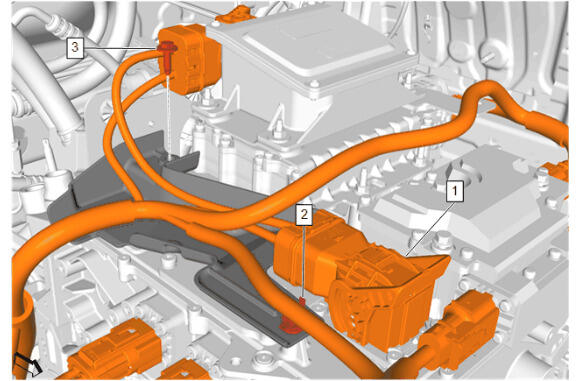

  26. GM6148605Courtesy of GENERAL MOTORS COMPANY

    Battery Positive and Negative Cable Bolt (3) - Install and tighten - Fastener Specifications

  27. Wiring Harness Retainer (2) - Install
  28. Connect the electrical connector. (1)

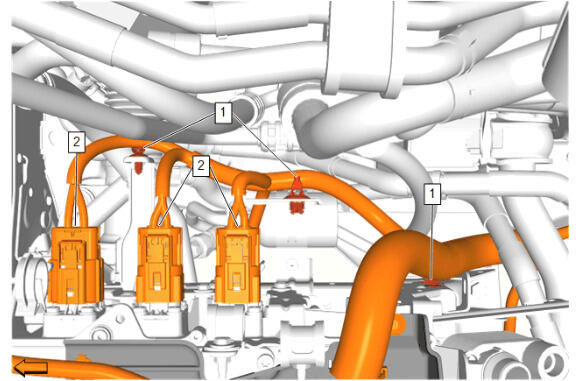

  29. GM6017876Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors. (2)

  30. Wiring Harness Retainer (1) - Install [3x]

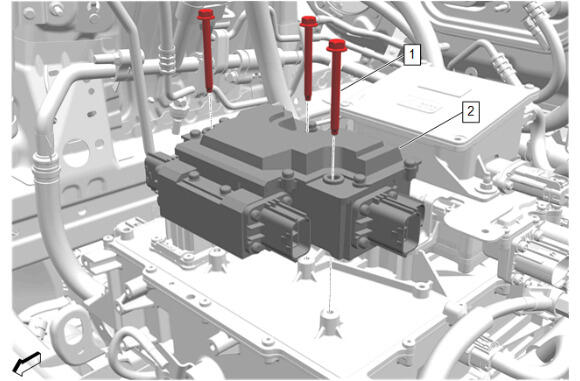

  31. GM6087816Courtesy of GENERAL MOTORS COMPANY

    Hybrid/Electric Vehicle Battery Charging Disconnect Module Relay (2) - Install

  32. Drive Motor Battery Charger Module Relay Bolt (1) - Install and tighten [3x] - Fastener Specifications

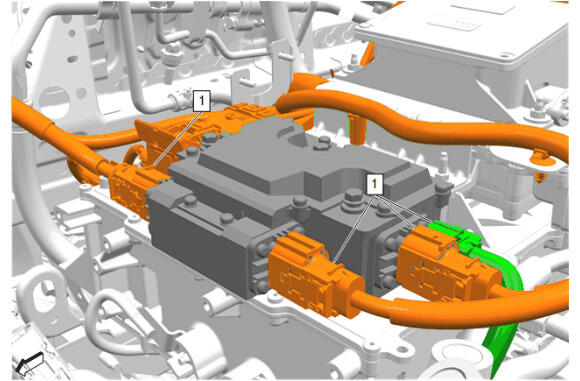

  33. GM6087815Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors. (1)

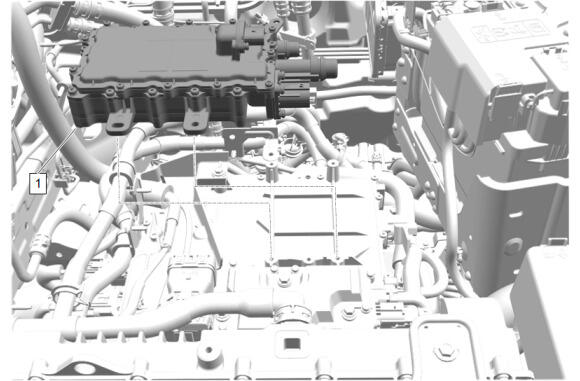

  34. GM5957820Courtesy of GENERAL MOTORS COMPANY

    High Voltage Battery Heater Module (1) - Install

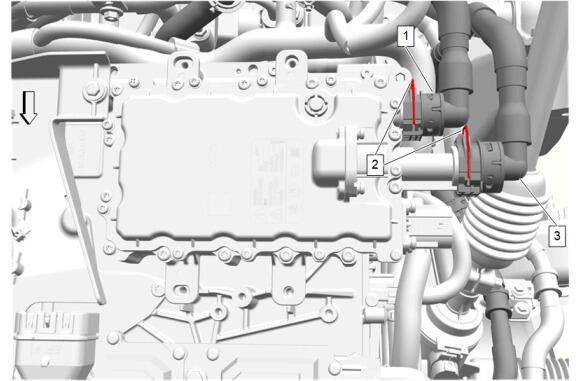

  35. GM5957818Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Power Distribution Control Module Hose (3) @ High Voltage Battery Heater Module - Install

  36. Heater Outlet Hose (1) @ High Voltage Battery Heater Module - Install
  37. Retainer (2) - Engage [2x]

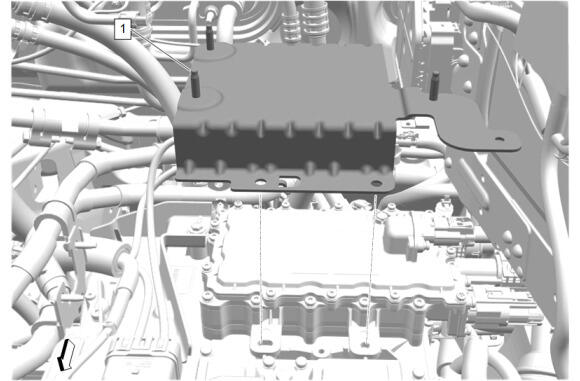

  38. GM5957813Courtesy of GENERAL MOTORS COMPANY

    High Voltage Battery Disconnect Control Module Bracket (1) - Install

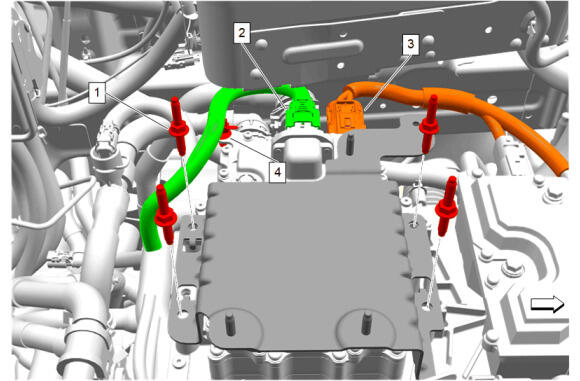

  39. GM5957810Courtesy of GENERAL MOTORS COMPANY

    High Voltage Battery Disconnect Control Module Bracket Stud (1) - Install and tighten [4x] - Fastener Specifications

  40. High Voltage Connector (3) - Connect
  41. Electrical Connector (2) - Connect
  42. Wiring Harness Retainer (4) - Install

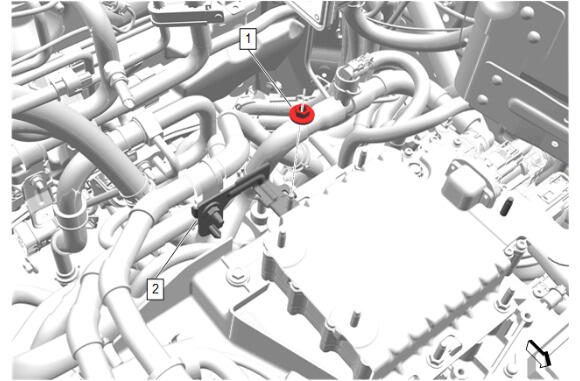

  43. GM6161983Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Battery Charger Receptacle Coolant Inlet Secondary Hose Bracket (2) - Install

  44. Drive Motor Battery Charger Receptacle Coolant Inlet Secondary Hose Clip Nut (1) - Install and tighten - Fastener Specifications

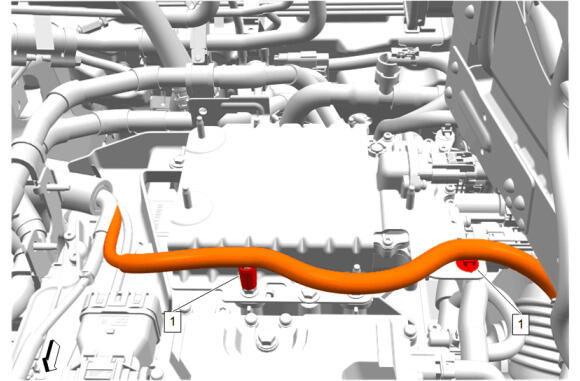

  45. GM5957815Courtesy of GENERAL MOTORS COMPANY

    Position the high voltage harness.

  46. Wiring Harness Retainer (1) - Install [2x]

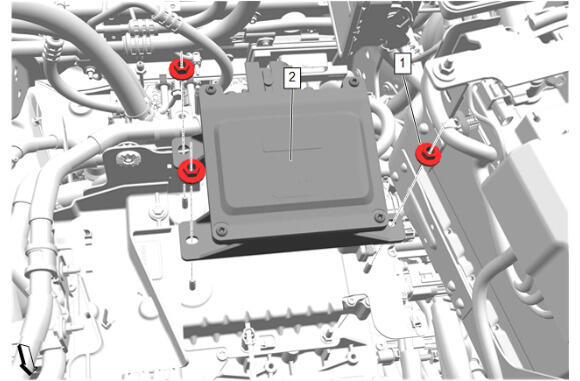

  47. GM6016108Courtesy of GENERAL MOTORS COMPANY

    Hybrid/Electric Vehicle Battery Cut-Off Actuator (2) - Install

  48. Drive Motor Power Distribution Control Module Pyro Switch Nut (1) - Install and tighten [3x] - Fastener Specifications

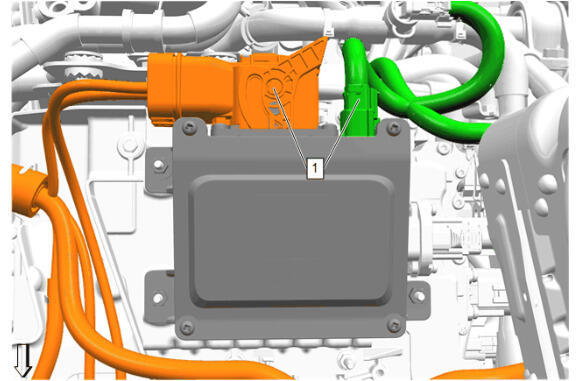

  49. GM6016107Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors. (1)

  50. GM5925550Courtesy of GENERAL MOTORS COMPANY

    Front Trim Finish Compartment Support (2) - Install

  51. Front Trim Finish Compartment Bolt (1) - Install and tighten [4x] - Fastener Specifications
  52. Connect the wiring harness retainers.
  53. GM5923708Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Front Sight Shield (2) - Install

  54. GM5923709Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Compartment Side Sight Shield- Right Side (2) - Install

  55. Enable the high voltage system. High Voltage Enabling
  56. Fill the cooling system to the proper level. Drive Motor Battery Cooling System Draining and Filling (RWL) , or Drive Motor Battery Cooling System Draining and Filling (XFD)
