Installation Procedure

  1. GM4261099Courtesy of GENERAL MOTORS COMPANY

    Steering Column Tilt Wheel and Telescope Control Module (3) - Install

    2. CAUTION:

    Fastener Caution .

  2. Steering Column Tilt Wheel and Telescope Control Module Bolt (2) - Install and tighten [2x] 3 N.m (27 lb in)
  3. Connect the electrical connectors. (1)
  4. Instrument Panel Knee Bolster - Install - Instrument Panel Knee Bolster Replacement
  5. GM4217301Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct - Left Side (2) - Install - Floor Front Air Outlet Duct Replacement - Left Side

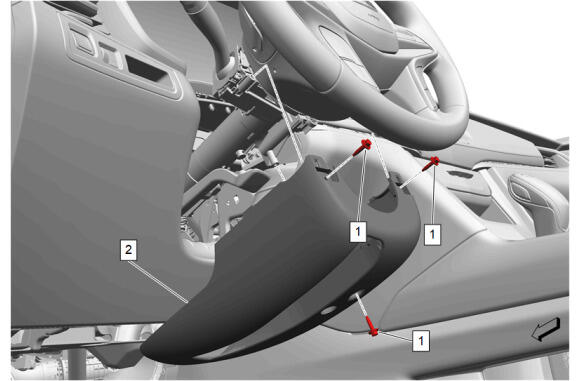

  6. GM5608222Courtesy of GENERAL MOTORS COMPANY

    Steering Column Lower Trim Cover (2) - Install - Steering Column Lower Trim Cover Replacement (N38) , or Steering Column Lower Trim Cover Replacement (N37)

  7. Program the steering column tilt wheel and telescope control module. Control Module References
