Installation Procedure

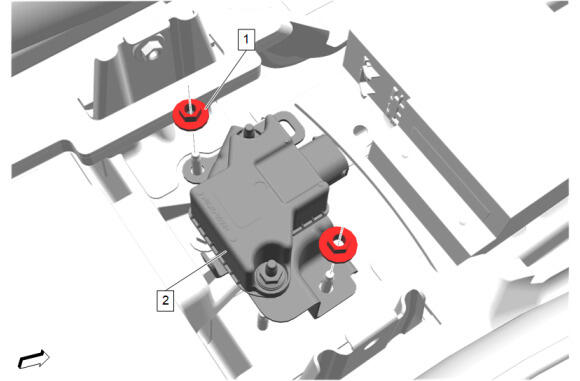

  1. GM6264952Courtesy of GENERAL MOTORS COMPANY

    Vehicle Dynamics Sensor (2) - Install

    2. CAUTION:

    Fastener Caution .

  2. Vehicle Dynamic Sensor Nut (1) - Install and tighten [2x] 9 N.m (80 lb in)
  3. Connect the wiring harness retainer.

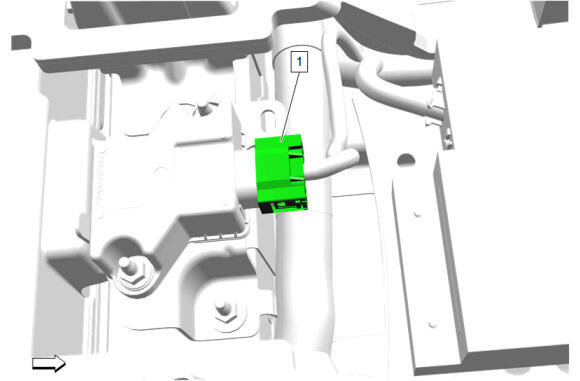

  4. GM6264951Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector. (1)

  5. Front Floor Console - Install - Front Floor Console Replacement
  6. Perform the necessary programming and setup procedure: Control Module References
