Installation Procedure

  1. GM5214679Courtesy of GENERAL MOTORS COMPANY

    Place a suitable adjustable jack under the fuel tank.

  2. Fuel Tank (1) - Install
  3. GM5214678Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Strap (2) - Install [2x]

    4. CAUTION:

    Refer to Fastener Caution .

  4. Fuel Tank Strap Bolt (1) - Install and tighten [4x] 22 N.m (16 lb ft)
  5. Remove the adjustable jack from under the fuel tank.
  6. Connect the hose and wiring harness retainers as necessary.
  7. GM5223841Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Vent Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service

  8. Fuel Pump Fuel Feed Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service

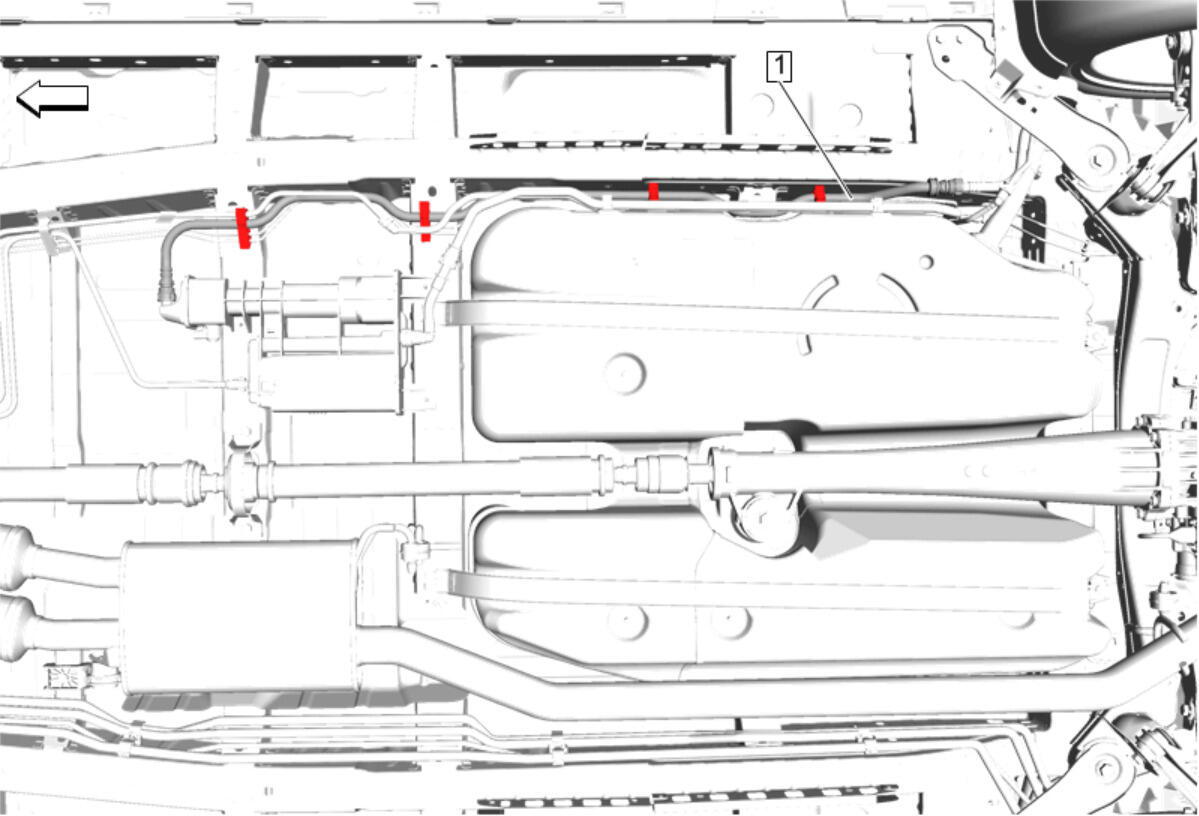

  9. GM5222897Courtesy of GENERAL MOTORS COMPANY

    Connect the 2 evaporative emission canister purge hose (1) quick connect fittings. Plastic Collar Quick Connect Fitting Service

  10. GM5214676Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Vent Hose (4) - Connect - Plastic Collar Quick Connect Fitting Service

  11. Fuel Tank Filler Hose (3) - Install
  12. Fuel Tank Filler Hose Clamp (2) - Tighten to 3.5 N.m (31 lb in)
  13. Wiring Harness (1) - Connect
  14. Driveline Torque Tube - Install - Driveline Torque Tube Replacement
  15. Refill the fuel tank.
  16. Inspect for fuel leaks.
