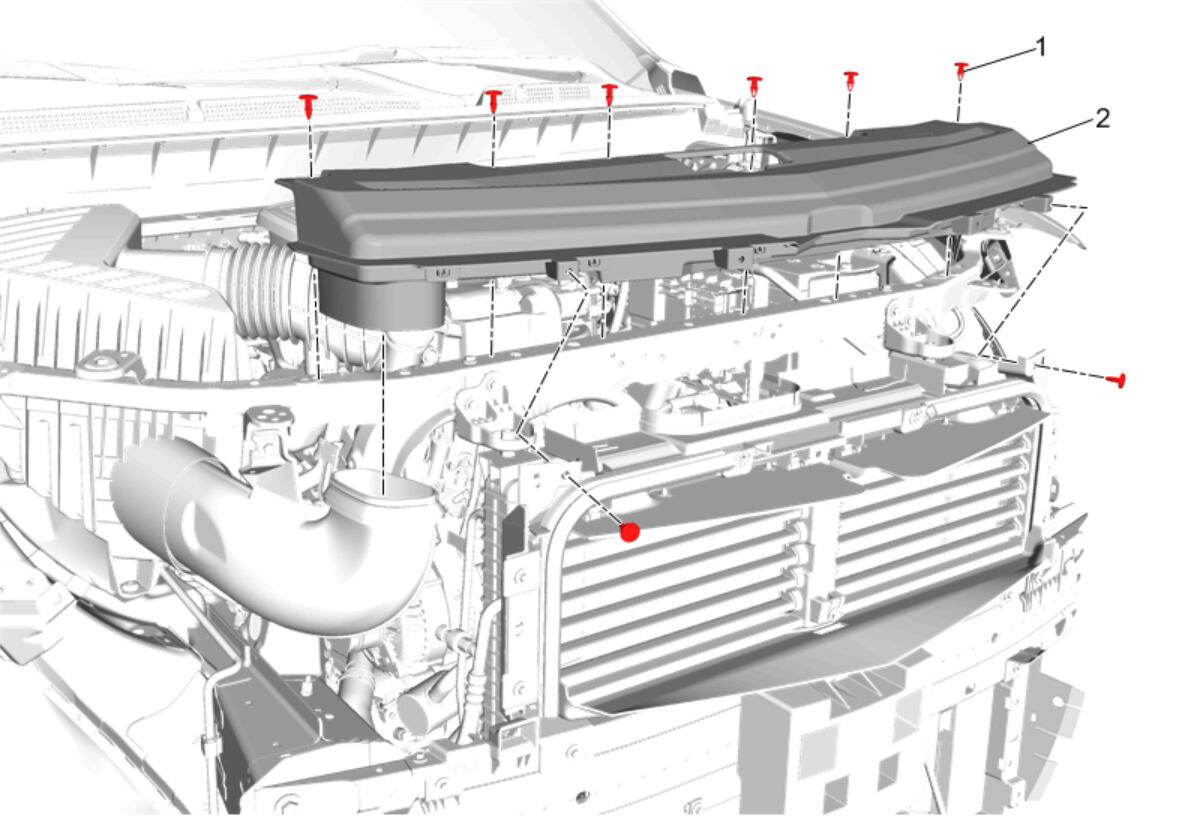

Intake Air Splash Shield Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Bumper Fascia Center Support Replacement
1	Intake Air Splash Shield Retainer [8x] CAUTION: Refer to Fastener Caution .
2	Intake Air Splash Shield
