Installation Procedure

  1. Electrical Connector @ Electronic Suspension Control Module - Connect
  2. GM4311128Courtesy of GENERAL MOTORS COMPANY

    Install the electronic suspension control module (1) until it is fully seated into the electronic suspension control module bracket (2) and secured by the tab as indicated.

  3. GM4311115Courtesy of GENERAL MOTORS COMPANY

    Electronic Suspension Control Module (2) - Install

    4. CAUTION:

    Refer to Fastener Caution .

  4. Electronic Suspension Control Module Bracket Nut (1) [3x] - Install and tighten 9 N.m (80 lb in)

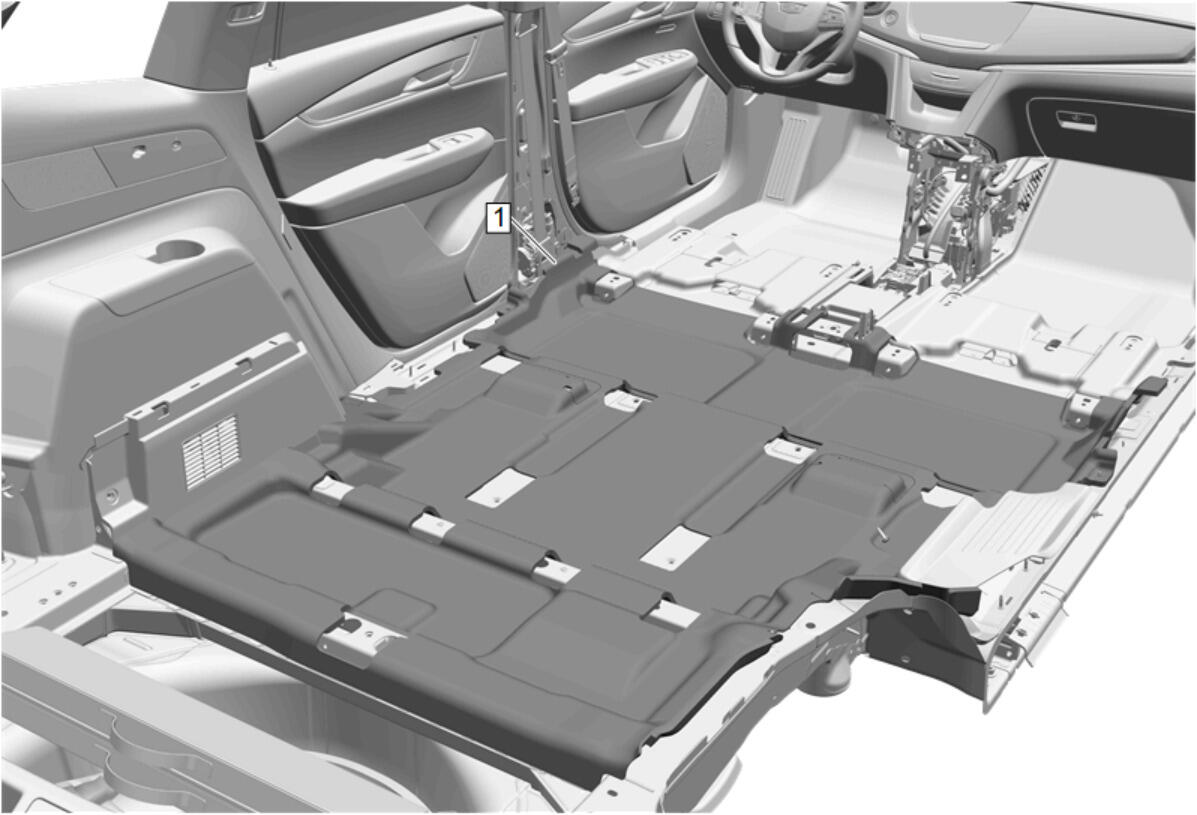

  5. GM5226623Courtesy of GENERAL MOTORS COMPANY

    Rear Floor Panel Carpet (1) - Install

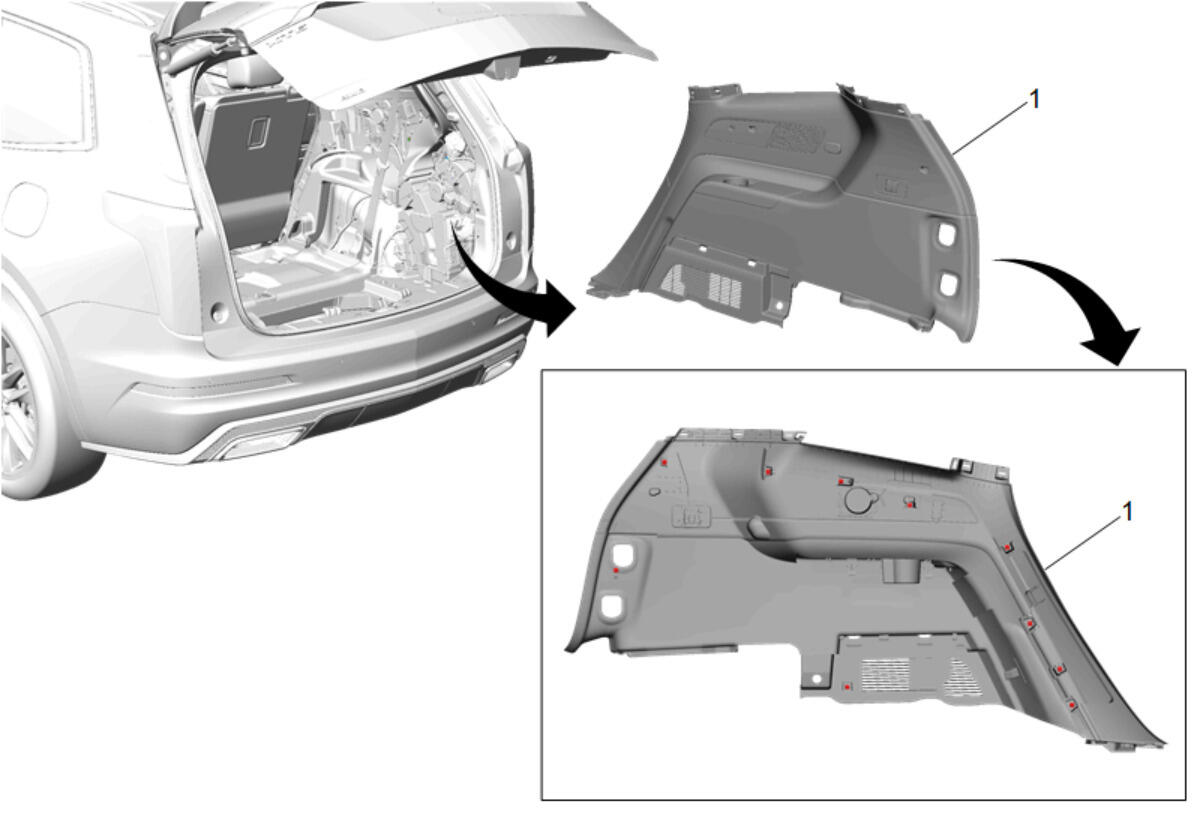

  6. GM5237351Courtesy of GENERAL MOTORS COMPANY

    Quarter Lower Rear Trim Panel - Right Side (1) - Install - Quarter Lower Rear Trim Panel Replacement - Right Side

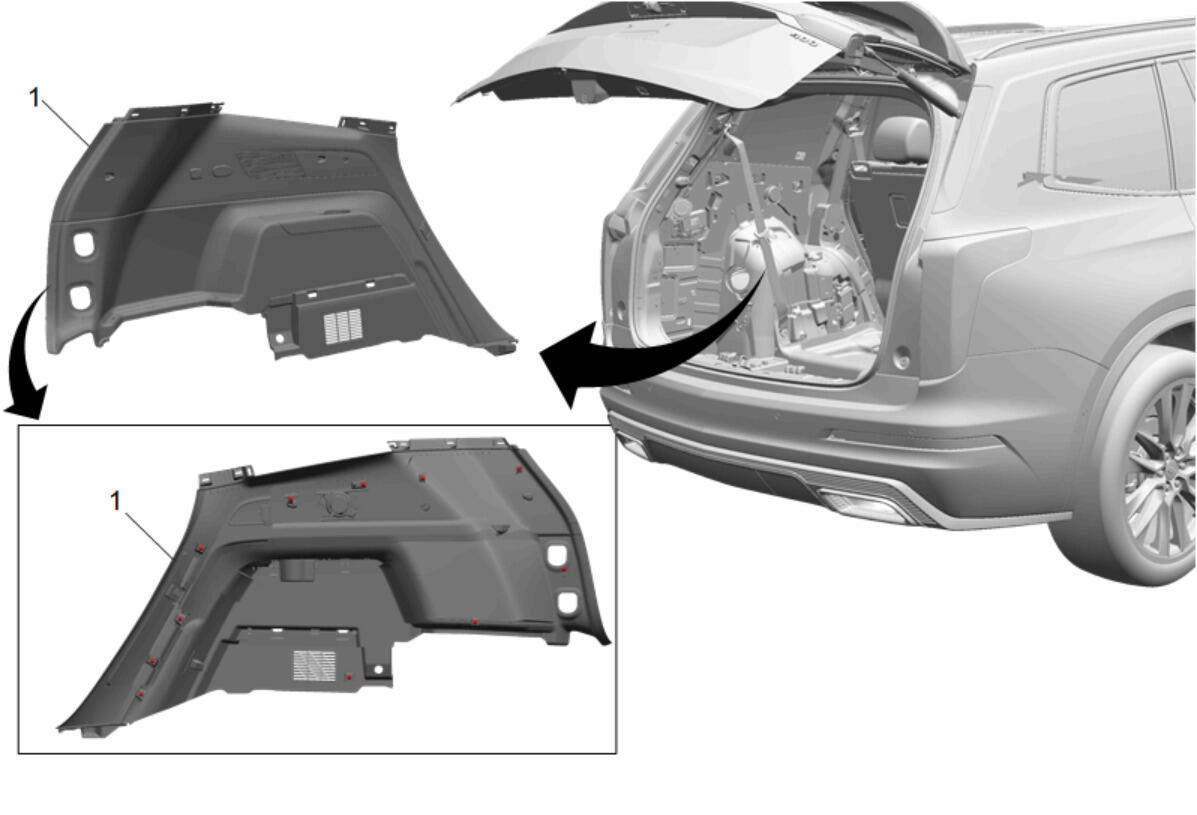

  7. GM5236633Courtesy of GENERAL MOTORS COMPANY

    Quarter Lower Rear Trim Panel - Left Side (1) - Install - Quarter Lower Rear Trim Panel Replacement - Left Side

  8. GM4375342Courtesy of GENERAL MOTORS COMPANY

    3rd Row Seat (4) - Install - 3rd Row Seat Removal and Installation

  9. Program the electronic suspension control module. Control Module References
