Installation Procedure

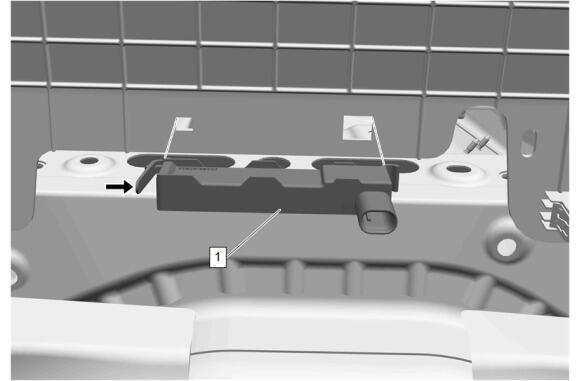

  1. GM5618160Courtesy of GENERAL MOTORS COMPANY

    Low Frequency Console Number 2 Antenna (1) - Install

  2. Secure the retaining tab.
  3. Connect the electrical connector.

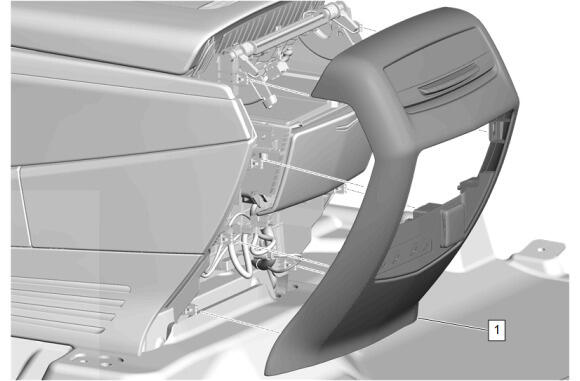

  4. GM5619728Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  5. Front Floor Console Rear Trim Panel (1) - Install
