Fastener Specifications

GM5569513Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Side Door Window Belt Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Belt Reveal Molding Bolt - - 1.5 N.m (13 lb in) Front Side Door Window Belt Reveal Molding Replacement
2 Front Side Door Window Belt Reveal Molding Yes - - Front Side Door Window Belt Reveal Molding Replacement
GM5523603Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Side Door Window Channel Front Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Channel Front Retainer Bolt [2x] - - 11 N.m (97 lb in) Front Side Door Window Channel Front Retainer Replacement
GM5523505Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Side Door Window Channel Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Channel Retainer Bolt [2x] - - 11 N.m (97 lb in) Front Side Door Window Channel Retainer Replacement

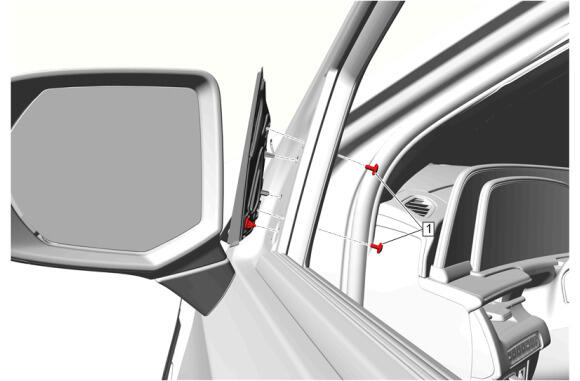

GM5627549Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Side Door Window Frame Front Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Frame Front Applique Bolt [2x] - - 1.5 N.m (13 lb in) Front Side Door Window Frame Front Applique Replacement

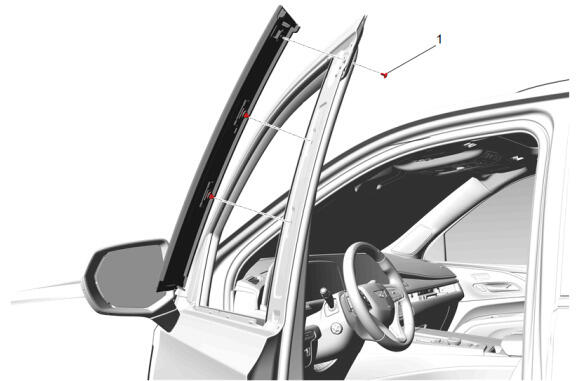

GM5627550Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Side Door Window Frame Rear Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Frame Rear Applique Bolt - - 1.5 N.m (13 lb in) Front Side Door Window Frame Rear Applique Replacement
GM5527123Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Side Door Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Nut [5x] - - 11 N.m (97 lb in) Front Side Door Window Regulator Replacement
GM5527163Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Side Door Window Regulator Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Motor Bolt [3x] - - Install and hand tighten Front Side Door Window Regulator Motor Replacement
GM5587460Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Side Door Window Upper Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Upper Reveal Molding Rivet [2x] Yes - - Front Side Door Window Upper Reveal Molding Replacement
GM5701319Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Liftgate Window Latch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Latch Bracket Bolt [2x] - - 9 N.m (80 lb in) Liftgate Window Latch Replacement
GM5841503Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Side Door Window Belt Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Belt Reveal Molding Bolt [2x] - - 1.5 N.m (13 lb in) Rear Side Door Window Belt Reveal Molding Replacement
2 Rear Side Door Window Belt Reveal Molding Yes - - Rear Side Door Window Belt Reveal Molding Replacement
GM5583116Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Side Door Window Channel Front Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Channel Front Retainer Bolt [2x] - - 11 N.m (97 lb in) Rear Side Door Window Channel Front Retainer Replacement

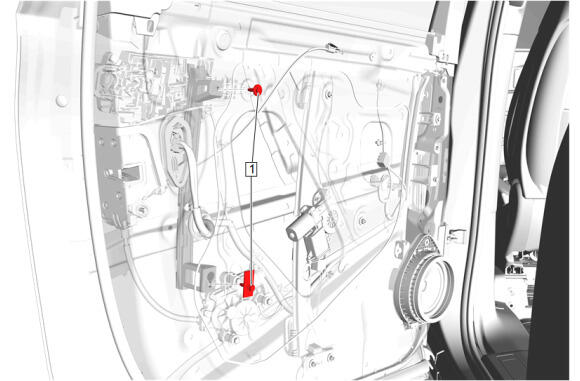

GM5615034Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Side Door Window Channel Rear Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Channel Rear Retainer Bolt [2x] - - 11 N.m (97 lb in) Rear Side Door Window Channel Rear Retainer Replacement

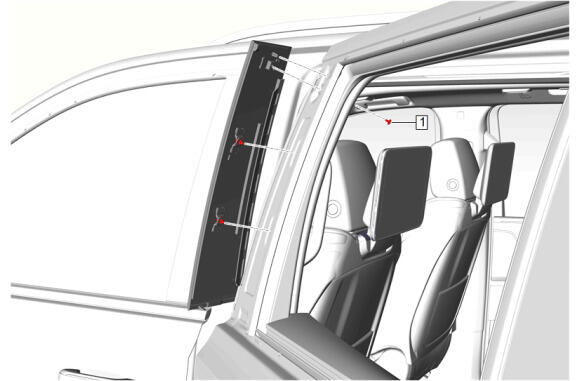

GM5627551Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Side Door Window Frame Front Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Frame Front Applique Bolt - - 1.5 N.m (13 lb in) Rear Side Door Window Frame Front Applique Replacement

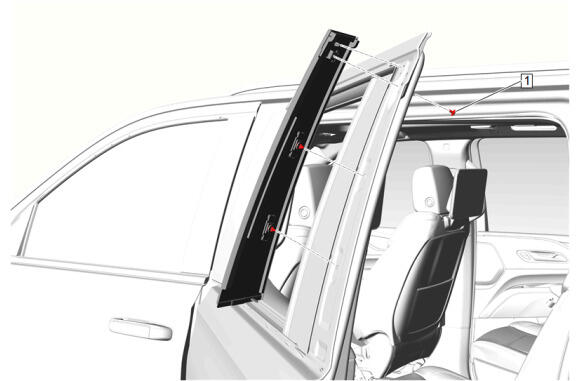

GM5627552Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Side Door Window Frame Rear Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Frame Rear Applique Bolt - - 1.5 N.m (13 lb in) Rear Side Door Window Frame Rear Applique Replacement
GM5551326Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Side Door Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Regulator Nut [4x] - - 11 N.m (97 lb in) Rear Side Door Window Regulator Replacement
GM5582598Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Side Door Window Regulator Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Regulator Motor Bolt [3x] - - Install and hand tighten Rear Side Door Window Regulator Motor Replacement
GM5572512Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Side Door Window Upper Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Upper Reveal Molding Rivet [2x] Yes - - Rear Side Door Window Upper Reveal Molding Replacement
GM5587524Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Side Door Window Weatherstrip

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Weatherstrip Bolt - - 11 N.m (97 lb in) Rear Side Door Window Weatherstrip Replacement
2 Rear Side Door Window Weatherstrip Bolt - - 2.5 N.m (22 lb in) Rear Side Door Window Weatherstrip Replacement
