Fastener Specifications
Trailer Rear Wiring Harness
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||

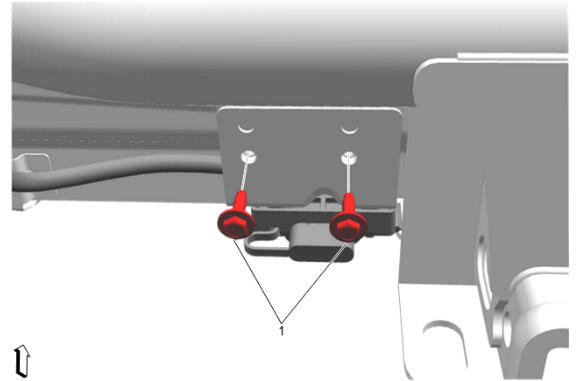

| 1 | Wiring Harness Bracket Bolt [2x] | - | - | 9 N.m (80 lb in) | Trailer Rear Wiring Harness Replacement |
