Installation Procedure
- NOTE:
Some components not shown for graphic clarity.

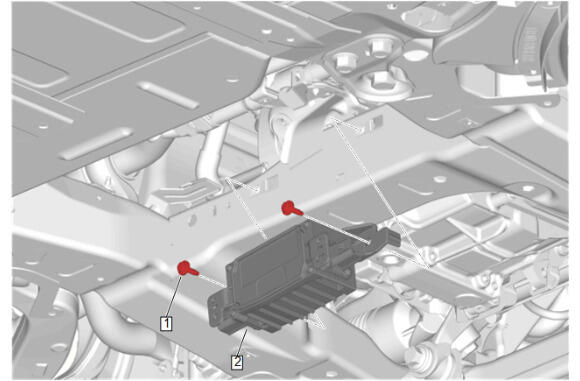

Battery Charger Coupler Fuse Block (2) - Install
- Generator Bolt (1) - Install and tighten [2x] - Fastener Specifications
- NOTE:
Some components not shown for graphic clarity.

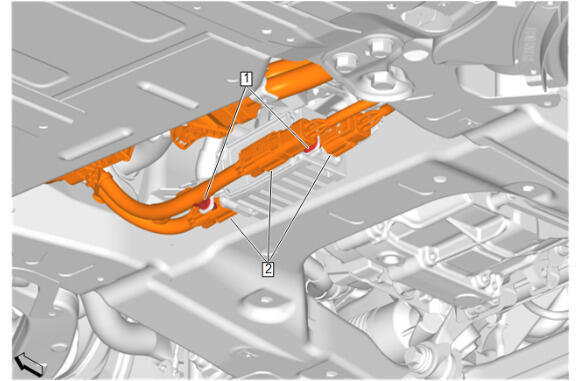

Battery Charger Coupler (2) - Install
- Drive Motor Battery Charger Receptacle Bolt (1) - Install and tighten [2x] - Fastener Specifications
- NOTE:
Some components not shown for graphic clarity.

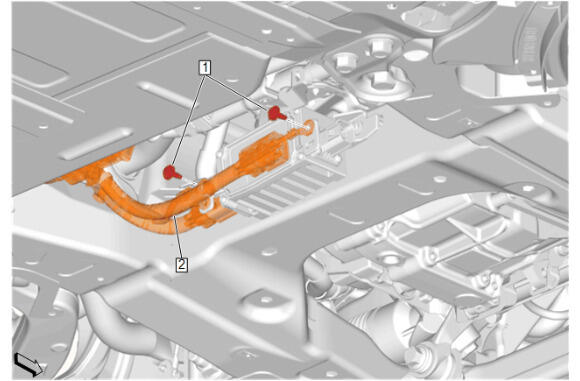

High Voltage Electrical Connector (2) - Connect [3x] - High Voltage Connectors
- Retainer (1) - Install [2x]
- Enable the high voltage system. High Voltage Enabling
CAUTION:
Refer to Fastener Caution .
