Installation Procedure

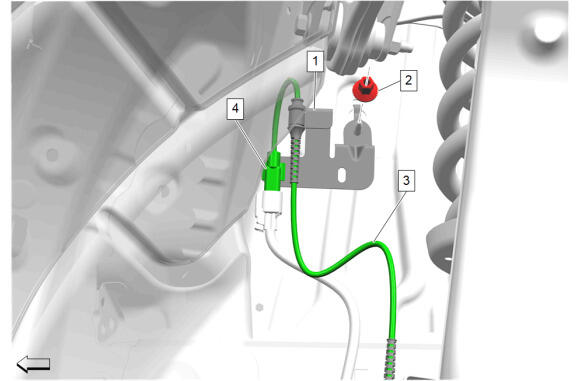

  1. GM6166510Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor (3) - Install

  2. Connect the electrical connector. (4)
  3. Front Wheel Speed Sensor Bracket (1) - Install
    4. CAUTION:

    Refer to Fastener Caution .

  4. Wheel Speed Sensor Bracket Nut (2) - Install and tighten - Fastener Specifications

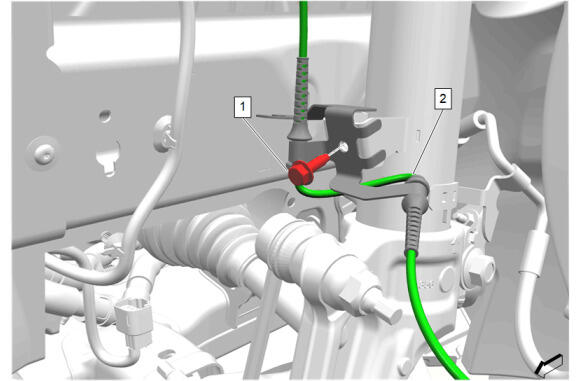

  5. GM5951081Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor Bolt (1) - Install and tighten - Fastener Specifications

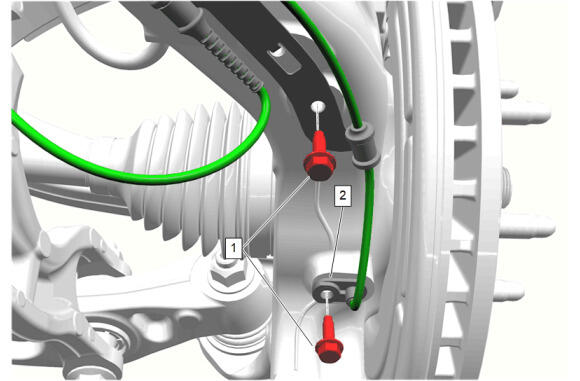

  6. GM5951078Courtesy of GENERAL MOTORS COMPANY

    Apply a light coat of wheel speed anti-corrosion grease to the front wheel speed sensor (2) and mounting pad on the steering knuckle. Adhesives, Fluids, Lubricants, and Sealers

  7. Front Wheel Speed Sensor (2) @ Steering Knuckle - Install
  8. Front Wheel Speed Sensor Bolt (1) - Install and tighten [2x] - Fastener Specifications
  9. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
