Installation Procedure

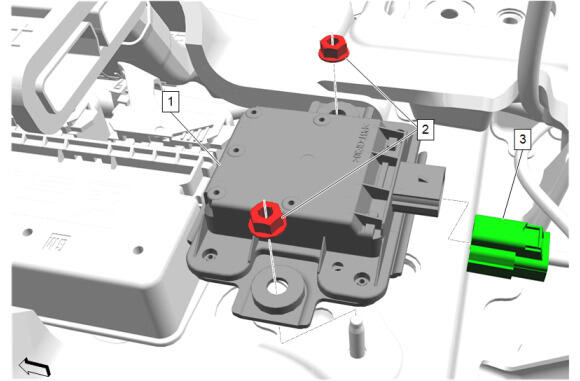

Vehicle Dynamic Sensor (1) - Install
- Vehicle Dynamic Sensor Nut (2) - Install and tighten [2x] - Fastener Specifications
- Connect the electrical connector. (3)
- NOTE:
Some components not shown for graphic clarity.

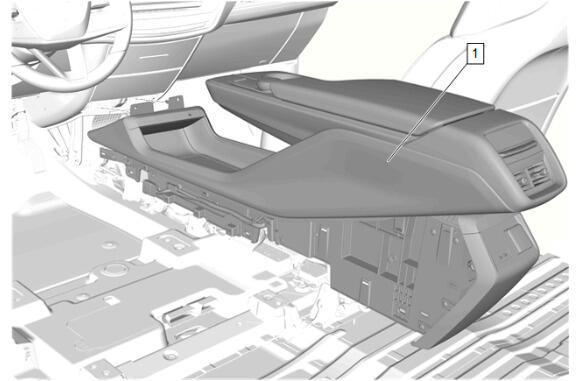

With the aid of an assistant, position the front floor console (1) into the vehicle. Front Floor Console Removal and Installation
- Perform the vehicle dynamic sensor offset calibration. Vehicle Dynamic Sensor Offset Calibration
CAUTION:
Refer to Fastener Caution .
