Installation Procedure

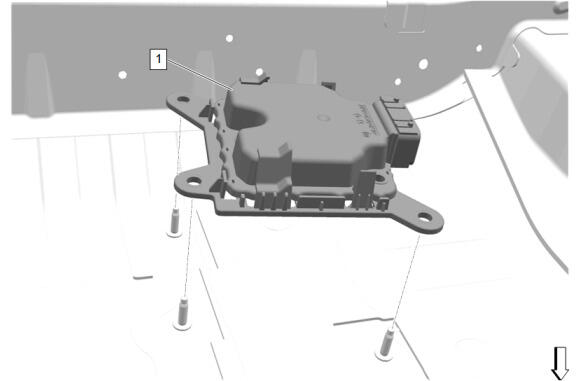

  1. GM6286945Courtesy of GENERAL MOTORS COMPANY

    Suspension Control Module (1) - Install

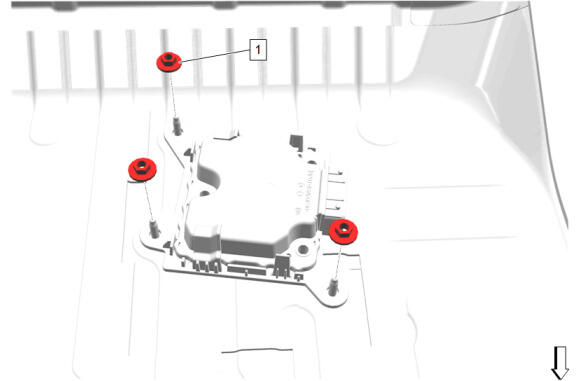

  2. GM6286933Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Electronic Suspension Control Module Bracket Nut (1) - Install and tighten [3x] - Fastener Specifications

  3. Disconnect the electrical connector.

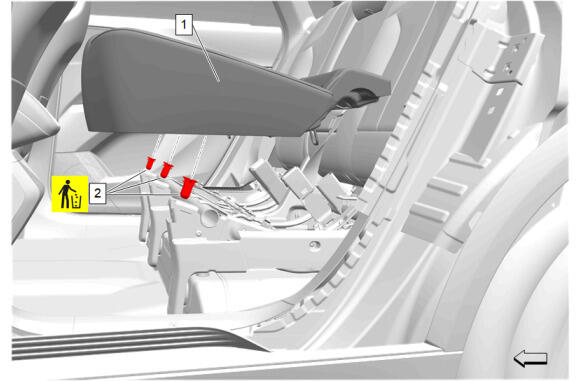

  4. GM6202369Courtesy of GENERAL MOTORS COMPANY

    Install NEW 3 rear seat cushion frame retainers (2) to the rear seat cushion frame.

  5. Route the rear center seat belt retractor and rear seat belt buckle through the rear seat cushion cover and pad (1).

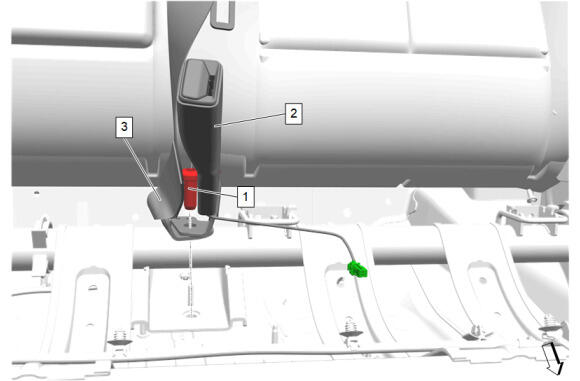

  6. GM5971908Courtesy of GENERAL MOTORS COMPANY

    Rear Center Seat Belt Retractor (3) - Install

  7. Rear Seat Belt Buckle (2) - Install
  8. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
  9. Rear Seat Belt Buckle Bolt (1) - Install and tighten - Fastener Specifications
  10. Connect the electrical connectors as necessary.
  11. Rear Seat Cushion Cover and Pad - Move into position

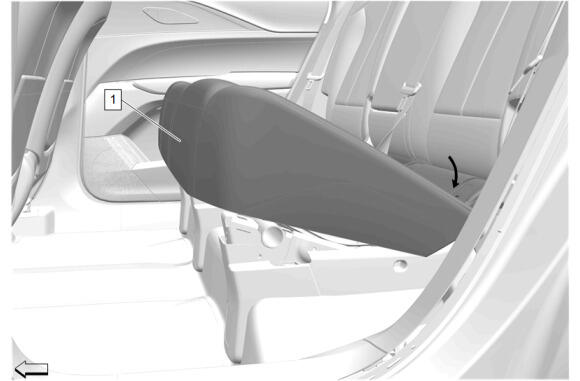

  12. GM5949524Courtesy of GENERAL MOTORS COMPANY

    Install the rear of the rear seat cushion cover and pad (1).

  13. Connect the electrical connector as necessary.
  14. Install the front of the rear seat cushion cover and pad (1) into the rear seat cushion frame retainers.
  15. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  16. After installation, program the electronic suspension controller. Control Module References
  17. Perform the automatic level control trim height learn.
