Active Safety Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

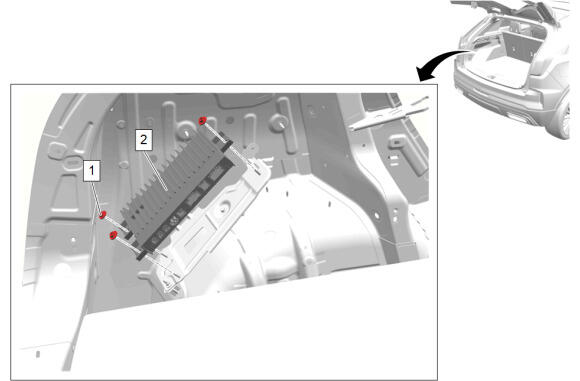

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Quarter Lower Rear Trim Panel Replacement
1	Active Safety Control Module Nut [3x] CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Active Safety Control Module Procedure Disconnect the electrical connectors.

Callout

Component Name

Active Safety Control Module Nut [3x]

CAUTION:

Tighten
9 N.m (80 lb in)

Active Safety Control Module

Procedure
