Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

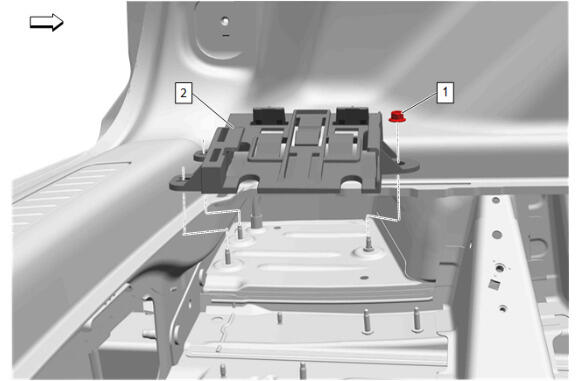

Electronic Suspension Control Module Bracket (2) - Install

CAUTION:

Electronic Suspension Control Module Bracket Nut (1) - Install and tighten 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

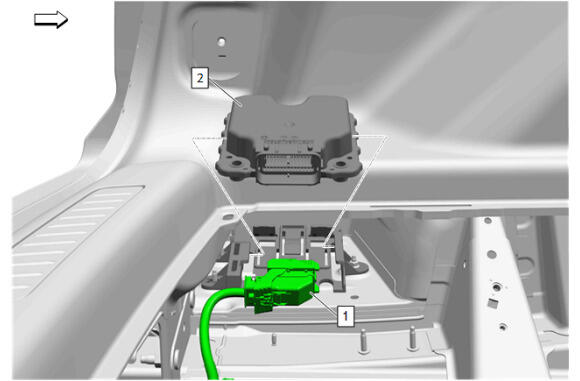

Electronic Suspension Control Module (2) - Install - Suspension Control Module Replacement
Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Floor Stowage Trim Compartment (2) - Install - Rear Compartment Floor Stowage Trim Compartment Replacement
