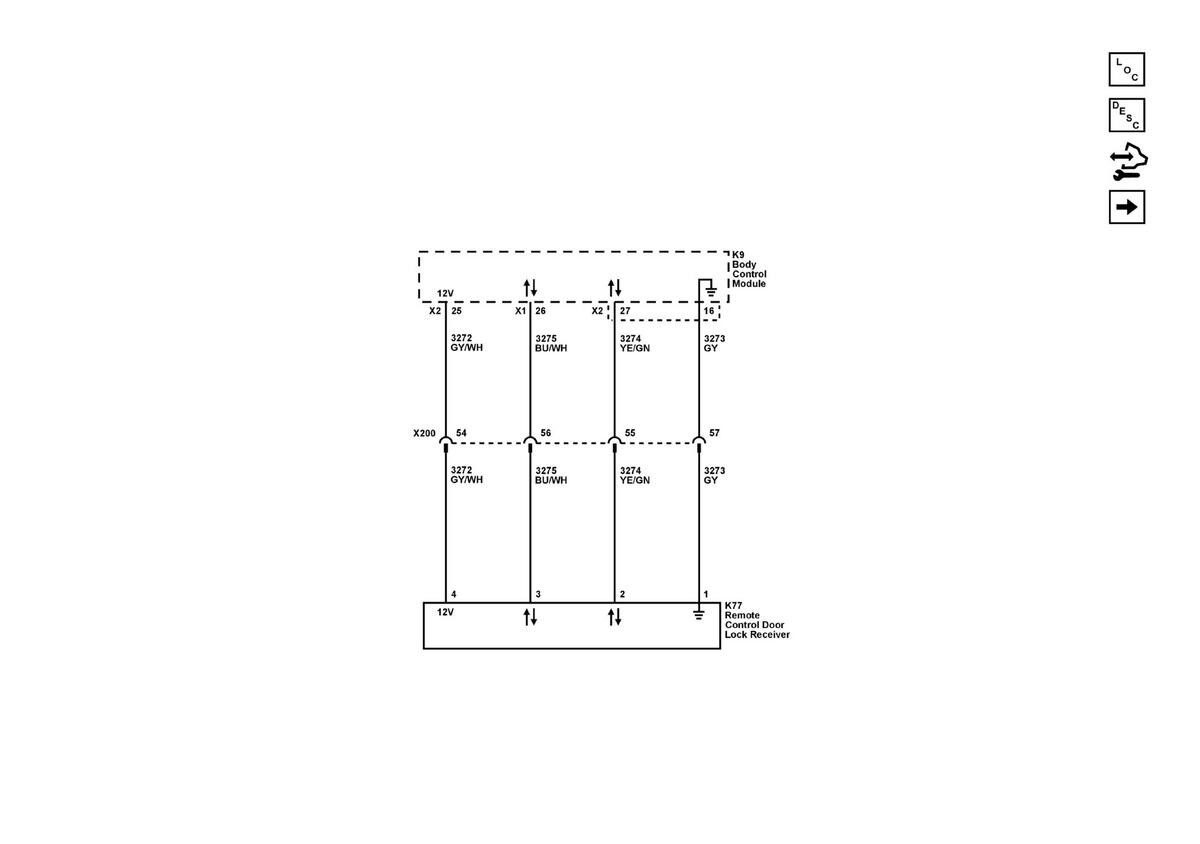

Home › Cadillac › 2024 › XT5 Livery, FWD › Repair and Diagnosis › Body & Frame › Door Locks › Keyless Entry And Remote Functions › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry - Active
