Engine Compression

Test compression pressure with engine at normal operating temperature, all spark plugs removed and throttle and choke valves wide open. Check compression through at least 4 compression strokes.

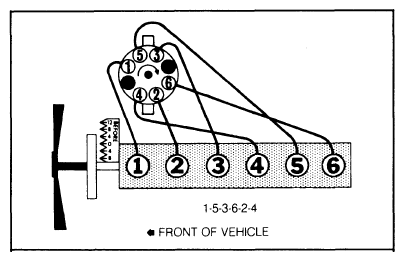

Fig 1: 250" Firing Order & Timing Marks

Courtesy of GENERAL MOTORS COMPANY
