HITACHI Regulator: Application

Model		Hitachi No.
Datsun
	620 Pickup, 280Z & F10	TLIZ-85B
	All Others	TLIZ-82B
Chevrolet LUV		TLIZ-87
Subaru		TLIZ-90

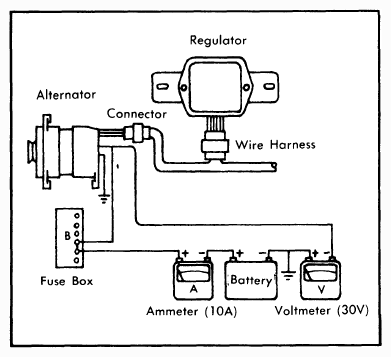

Fig 1: Test Connections for Voltage Regulator

Courtesy of NOT AVAILABLE
