Check Valve

The check valve is a one-way flow valve. It prevents air from the exhaust manifold from backing up through the system and reaching the air pump. The check valve is located either in the tubing leading to the injection manifold or as an integral part of the manifold.

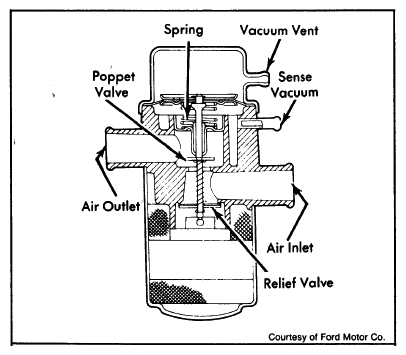

Fig 1: Ford Motor Co. Timed & Vented By-Pass Diverter Valve
G09327152Courtesy of NOT AVAILABLE
