2-Way Power Seats

These seats operate in forward and rearward directions only. Control switch energizes motor and at each end of the motor shaft is a jack screw which turns the seat adjusters in the desired directions through a horizontal gear nut attached to the seat adjuster.

Fig 1: General Motors 2-Way Seat Wiring Diagram
G09317015Courtesy of GENERAL MOTORS COMPANY

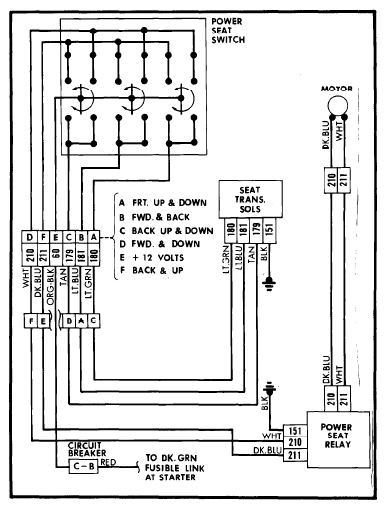

Fig 2: General Motors 6-Way Seat Wiring Diagram, (Single Motor)
G09317016Courtesy of GENERAL MOTORS COMPANY
