Electronic Spark Control Testing: Notes

NOTE: Electronic Spark Control is used on some Chevrolet and GMC models using the 5.0L VIN H engine.

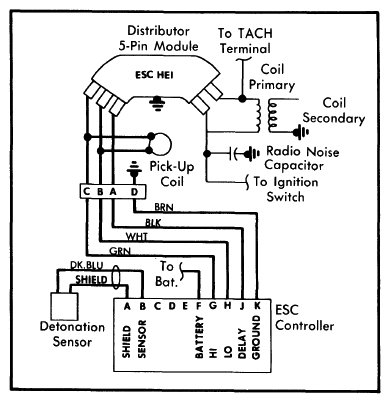

Fig 1: Wiring Diagram For HEI System with Electronic Spark Control

Courtesy of GENERAL MOTORS COMPANY
