Removal & Installation

Remove ECM mounting hardware. Disconnect electrical connectors and ground strap. Remove ECM. To install ECM, reverse removal procedure and ensure ground strap is securely attached.

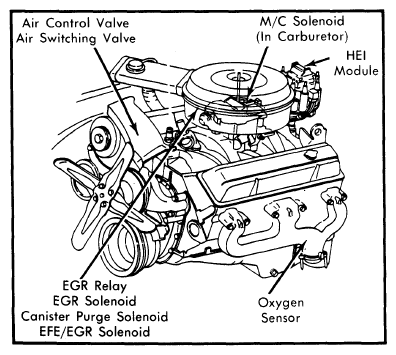

Fig 1: Location of CCC System Components
G09340317Courtesy of GENERAL MOTORS COMPANY
