Choke Unloader
- Install choke coil in housing and index properly. If choke is warm, cool down to point where choke valve will fully close.

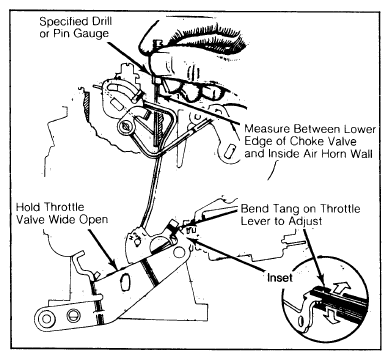

- Hold throttle valve wide open. Measure clearance between lower edge of choke valve and inside air horn wall with specified drill or pin gauge. To adjust, bend choke unloader tang to achieve specified clearance. See Fig 1.
Hold throttle valve wide open.
