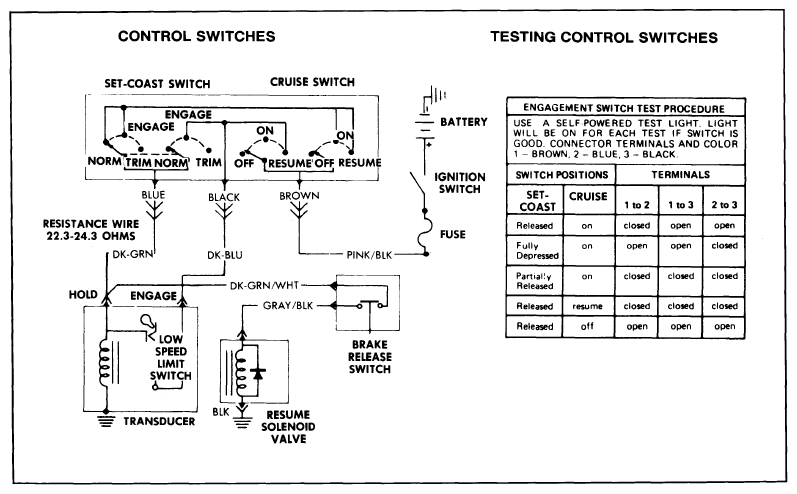

Brake Release Switches
- The design of the electric switch and vacuum valve mounting provides for automatic adjustment when brake pedal is manually returned to its stop.
- Depress brake pedal fully and push switch and valve forward until they stop against bracket or arm. Pull brake pedal back up toward its stop with 15-20 lbs. (6.8-9.1 kg) of force.
