Ignition System Trouble Shooting

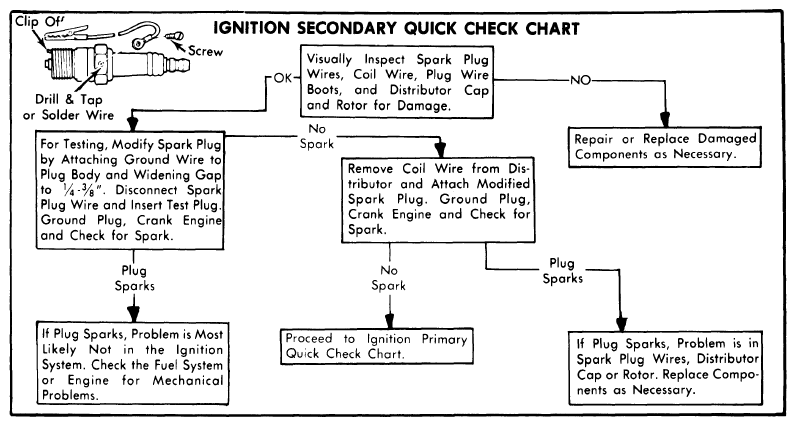

Fig 1: Ignition Secondary Quick Check Chart
G09360817Courtesy of GENERAL MOTORS COMPANY

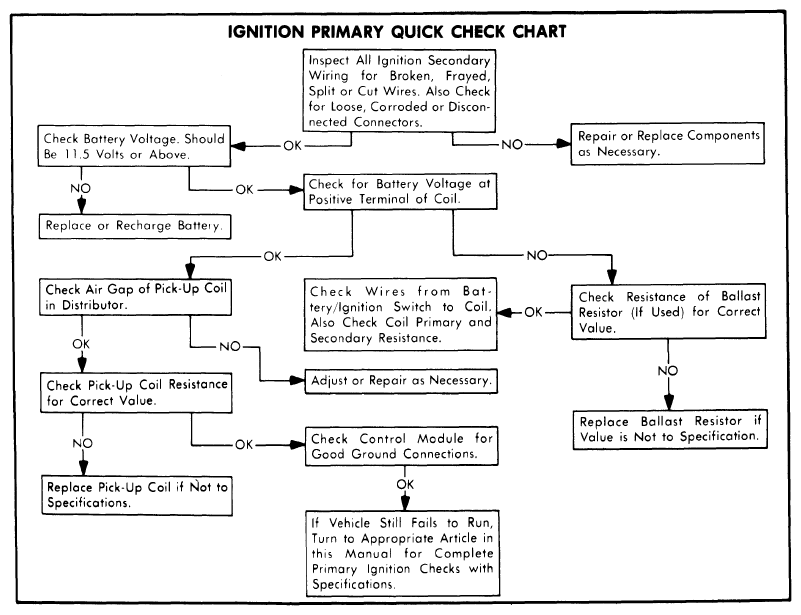

Fig 2: Ignition Primary Quick Check Chart
G09360818Courtesy of GENERAL MOTORS COMPANY
