Tune-Up - 4 CYL: Distributor

All models equipped with Nippondenso electronic ignition system.

DISTRIBUTOR SPECIFICATIONS

Air Gap

.008-.016" (.2-.4 mm)

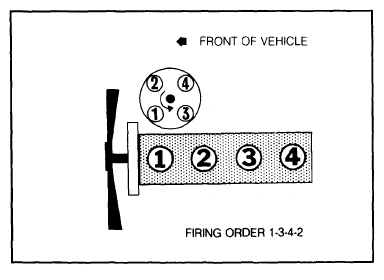

Fig 1: Firing Order and Distributor Rotation

Courtesy of GENERAL MOTORS COMPANY
