2.8L CEC Tests W/Codes
›
Code 24 - VSS Circuit
Code 24 - VSS Circuit

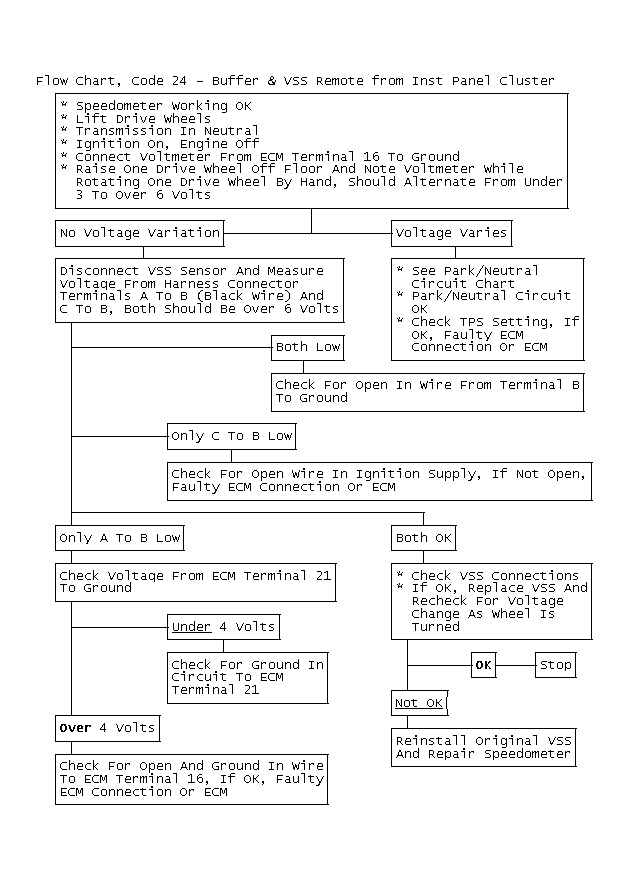

Fig 1: Flow Chart, Code 24 - Buffer & VSS Remote from Inst Panel Cluster

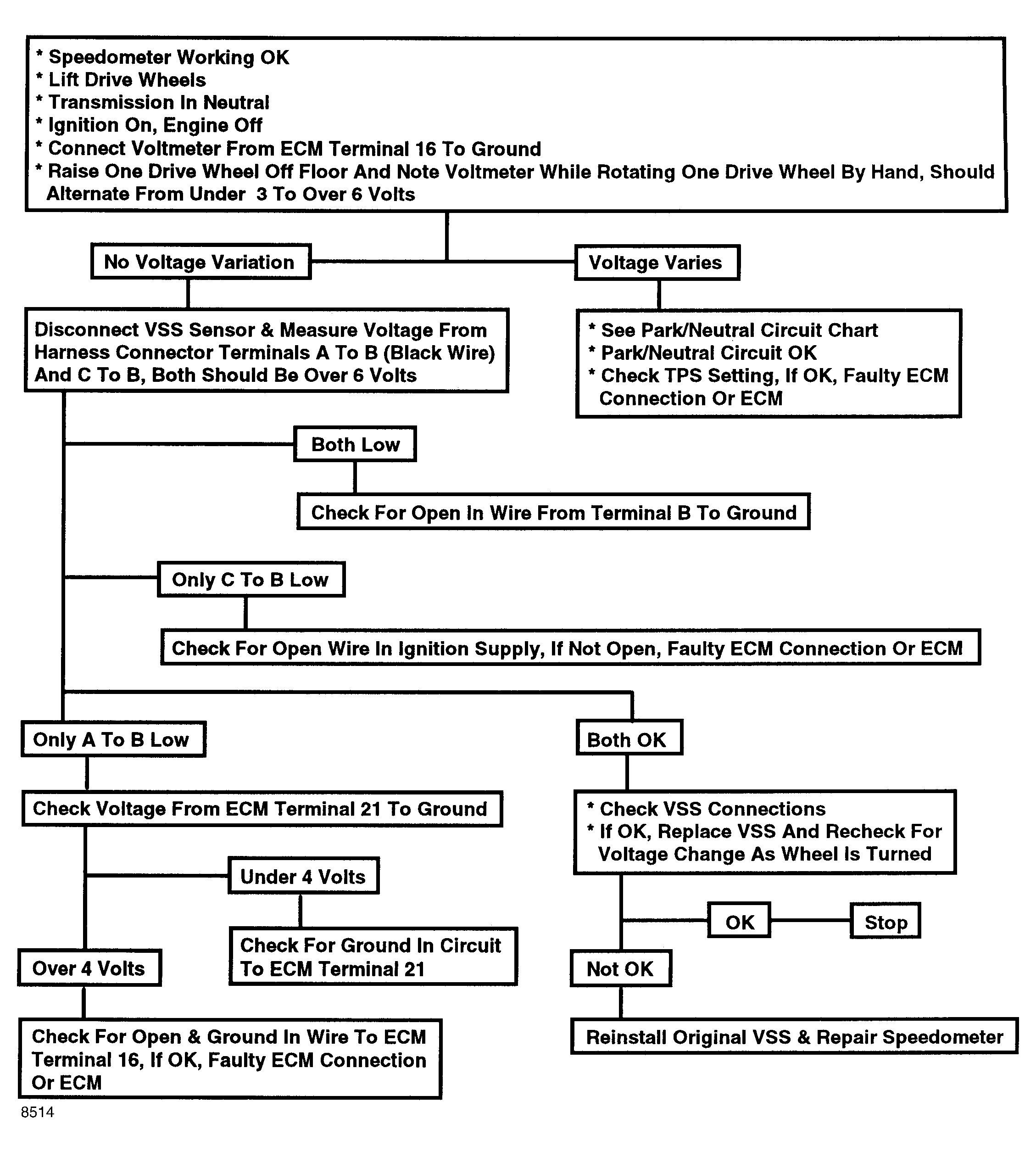

Fig 2: Flow Chart, Code 24 - Buffer & VSS Remote from Inst Panel Cluster
