Chart 5: "Check Engine" Light Inoperative

Fig 1: Chart 5: "CHECK ENGINE" Light Inoperative Flow Chart

G246

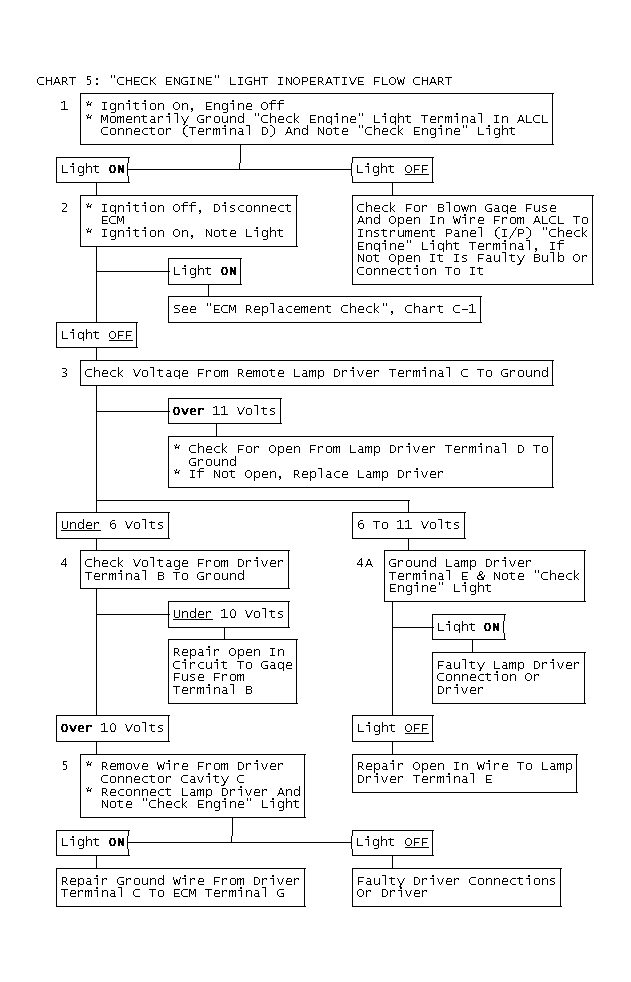

Fig 2: Chart 5: "CHECK ENGINE" Light Inoperative Flow Chart

GB0045591
