Home › Chevrolet › 1983 › Camaro Base, 2.8 1, Standard › Repair and Diagnosis › Engine Performance › System › Feedback Carburetor Tests W/Codes › Code 23: Mixture Control (M/C) Solenoid CKT

Code 23: Mixture Control (M/C) Solenoid CKT

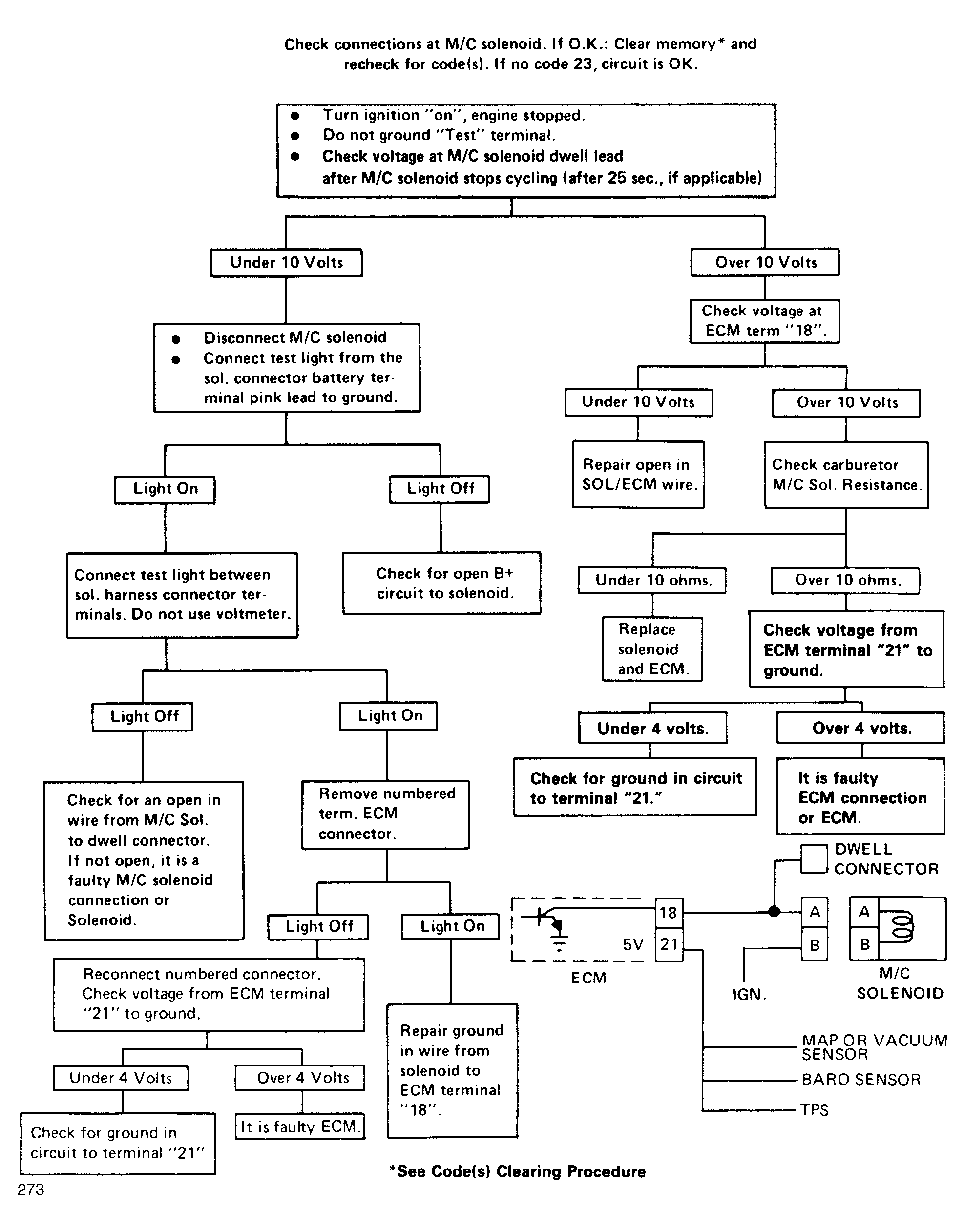

Fig 1: Code 23: Open Or Grounded M/C Solenoid Ckt Flow Chart

G273

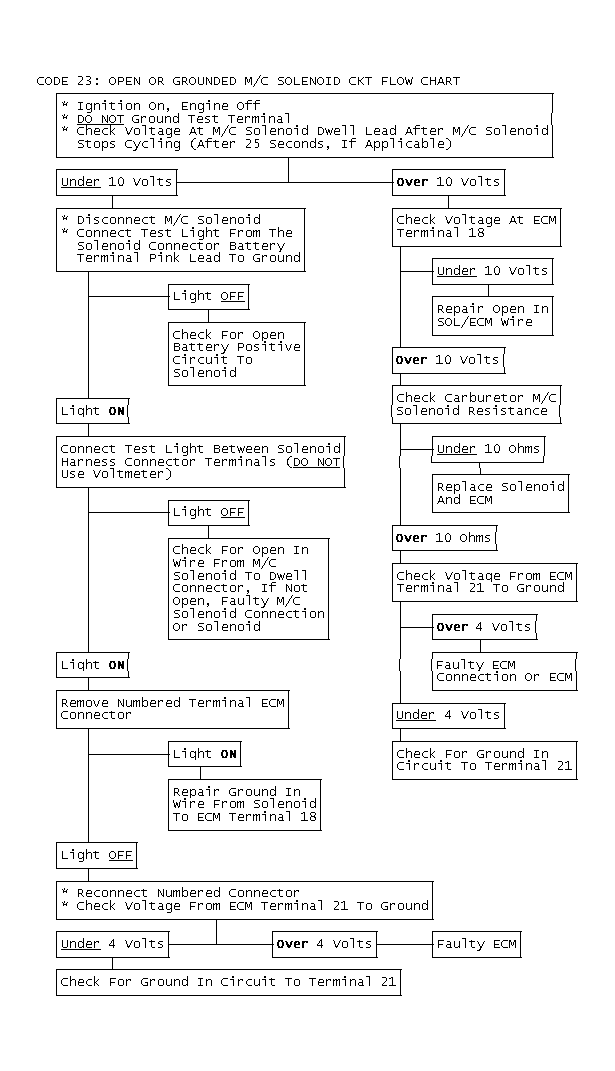

Fig 2: Code 23: Open Or Grounded M/C Solenoid Ckt Flow Chart

GB0045622
